Installing Front Lock Upper Part

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

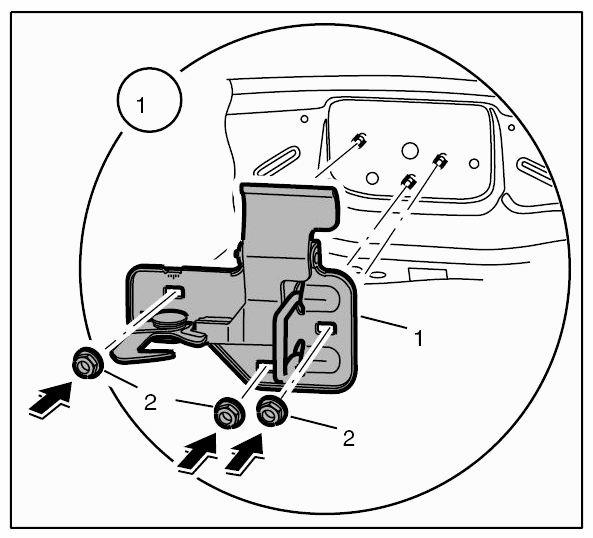

Fig 1: Identifying Front Lock Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mount upper part of front lock.
1. 1.1. Mount the upper part of front lock -1- and tighten the fastening nuts -2- slightly.

  Fig 2: Installing Upper Part Of Front Lock And Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

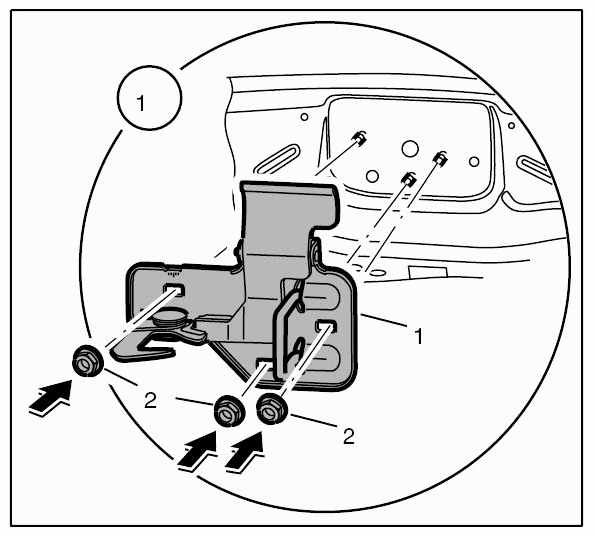

  Fig 3: Installing Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position upper part of front lock.
1. 2.1. Adjust the upper part of the lock with respect to the lid according to the noted position -arrow- (factory impression).

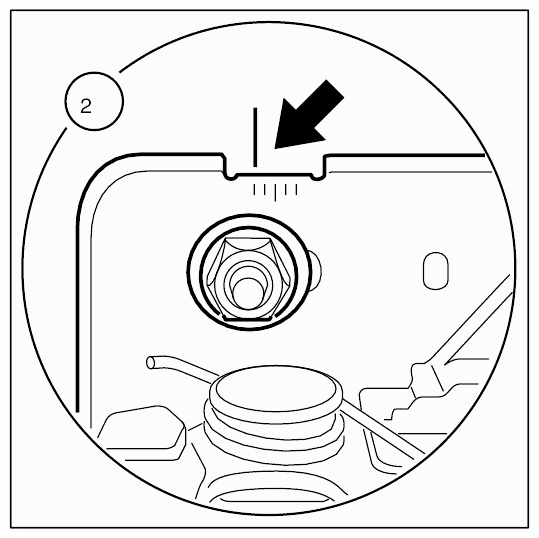

  Fig 4: Positioning Upper Part Of Front Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten upper part of lock.
1. 3.1. Tighten fastening nuts -2- to the specified tightening torque → Tightening torque: 12 Nm (9 ft lbs.)+/-1.8 Nm (+/-1.5 ft lbs.).

  Fig 5: Installing Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check lid functions.
1. 4.1. Close the front lid and lock it.
2. 4.2. Check that the front lid is held down by the safety hook (locking hook) after the lid lock has been opened.
3. 4.3. Check that return spring on lower part of lock pulls back the safety hook as far as the stop when lid is open.
