Installing Front Section Of Cable For Front Lid Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

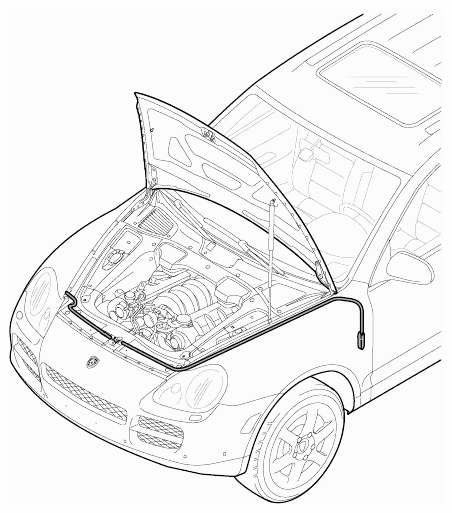

Fig 1: Identifying Front Section Of Cable For Front Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

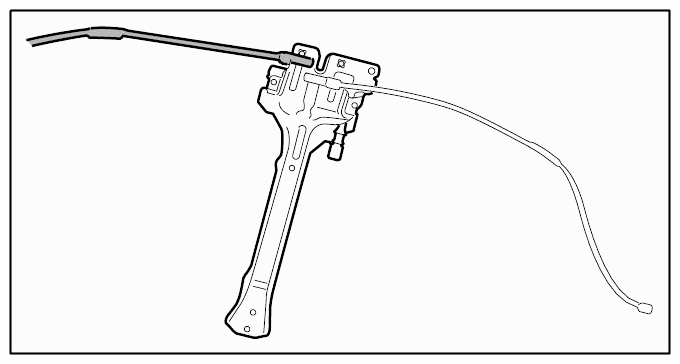

Fig 2: Identifying Front Section Of Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert front section of cable for front lid lock and engage ball head.

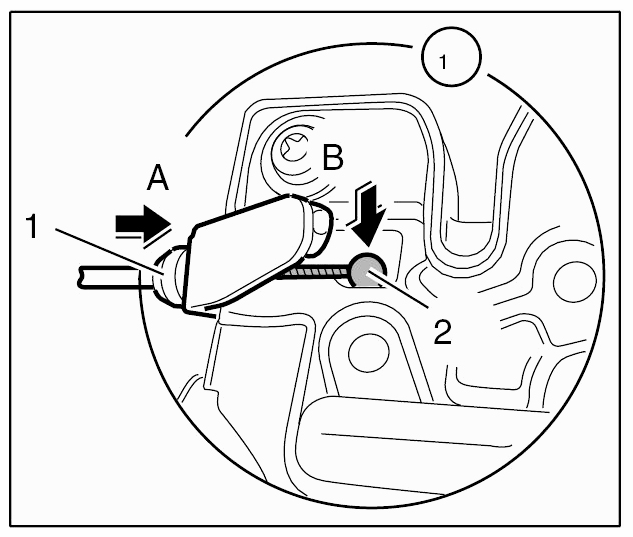

1. 1.1. Insert front section of cable for front lid lock -1- (-Arrow A-) and engage ball head -2- (-Arrow B-).

  Fig 3: Inserting Front Section Of Cable For Front Lid Lock And Ball Head
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in front section of cable for front lid lock.

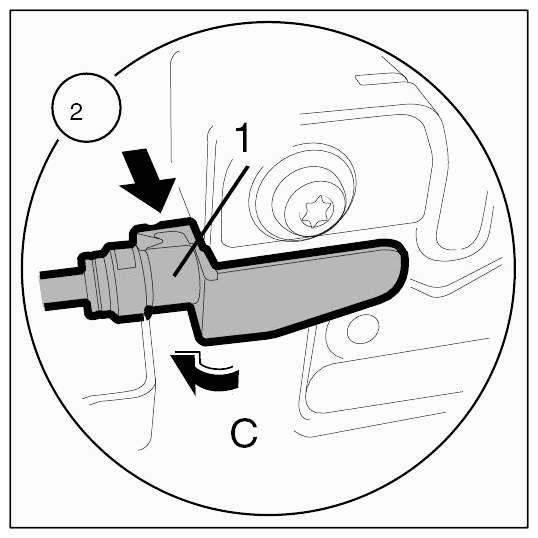

1. 2.1. Swivel in front section of cable for front lid lock -1- and press into place (-Arrow C-) until the locking lug (-arrow-) engages audibly.

  Fig 4: Pressing Front Section Of Cable For Front Lid And Locking Lug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install front lock lower part → Installing Lower Part Of Lock At The Front .
