Installing Emergency Release Cable

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

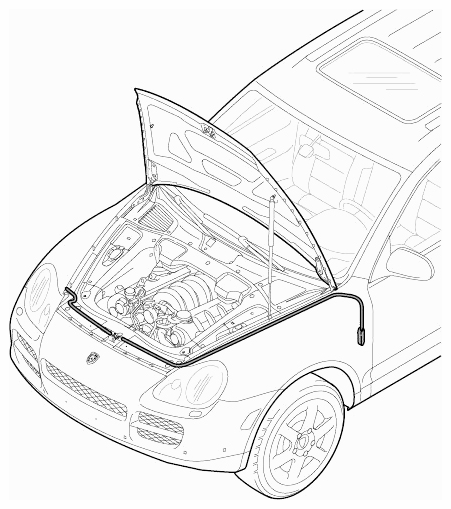

Fig 1: Identifying Emergency Cable (Front)
G09421341Courtesy of PORSCHE CARS NORTH AMERICA, INC.

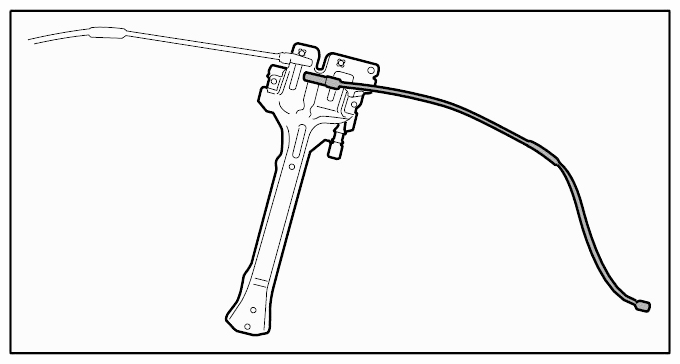

Fig 2: Identifying Emergency Cable
G09421342Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert emergency release cable and engage ball head.
    1. 1.1. Insert emergency release cable -1- (-Arrow A-)  and engage ball head -2- (-Arrow B-).

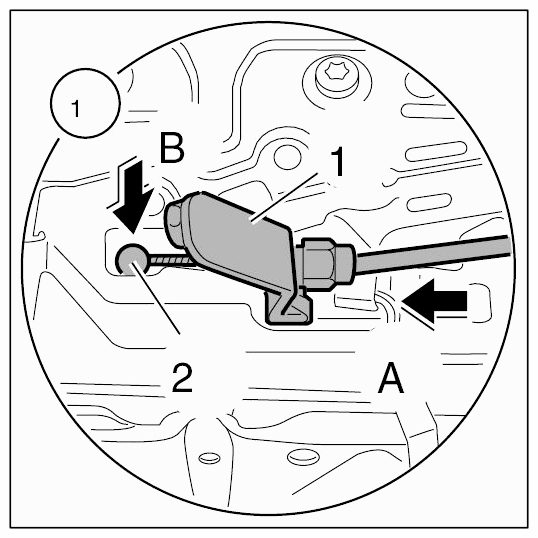

      Fig 3: Inserting Emergency Cable And Ball Head
      G09421343Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in emergency release cable.
    1. 2.1. Swivel in emergency release cable -1-  and press into place (-Arrow C-)  until the locking lug (-arrow-)  engages audibly.

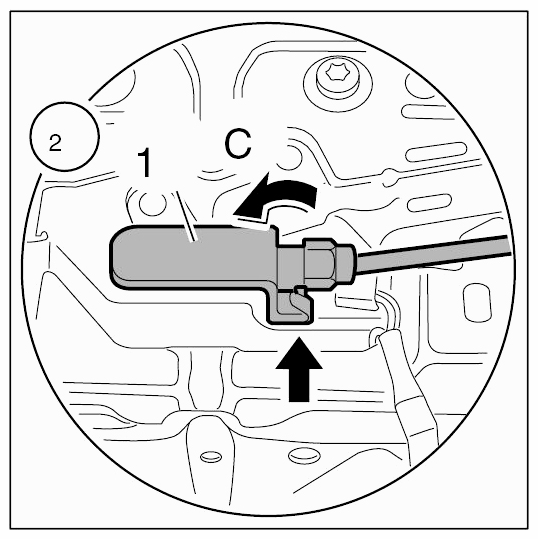

      Fig 4: Installing Emergency Cable And Locking Lug
      G09421344Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install front lock lower part → Installing Lower Part Of Lock At The Front  .
