Removing Front Section Of Cable For Front Lid Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

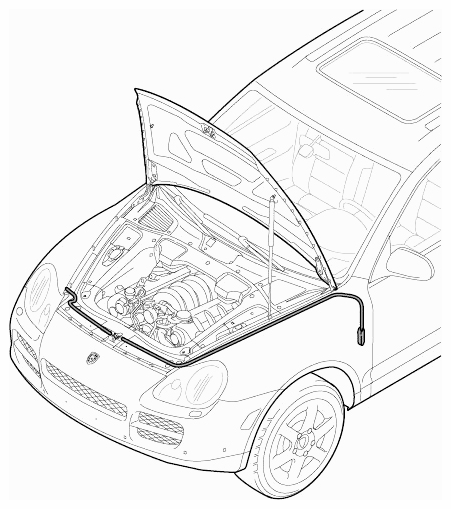

Fig 1: Identifying Front Section Of Cable For Front Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

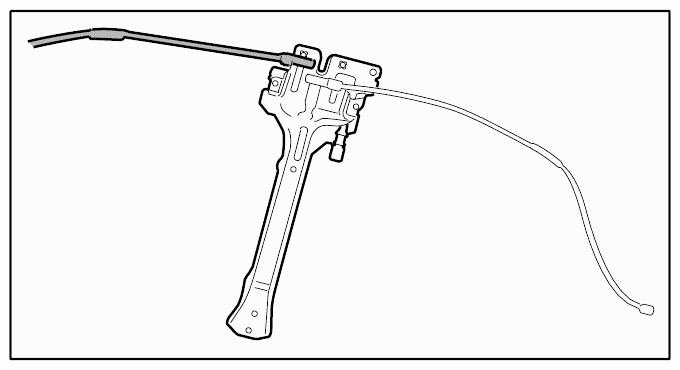

Fig 2: Identifying Front Lid Lock Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The lower part of the lock does not have to be removed from the lock support to facilitate the removal of the front section of the cable for the front lid lock.

Remove front lock lower part → Removing And Installing Lower Part Of Lock (Front) .
Unclip front section of cable for front lid lock.

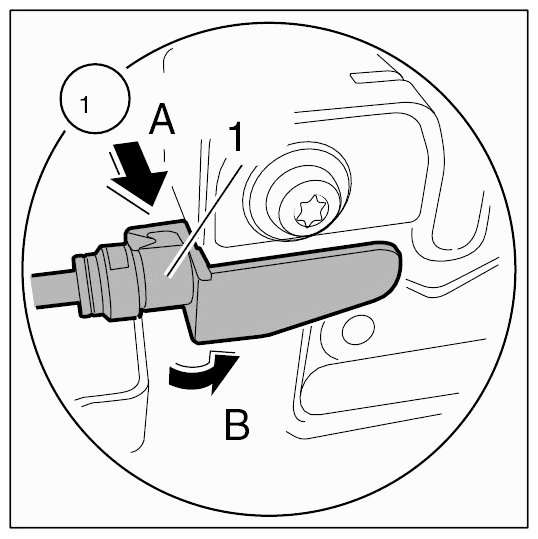

1. 2.1. Release front section of cable for front lid lock -1- (-Arrow A- and swivel it out (-Arrow B-).

  Fig 3: Release Front Section Of Cable For Front Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage ball head and remove front section of cable for front lid lock.

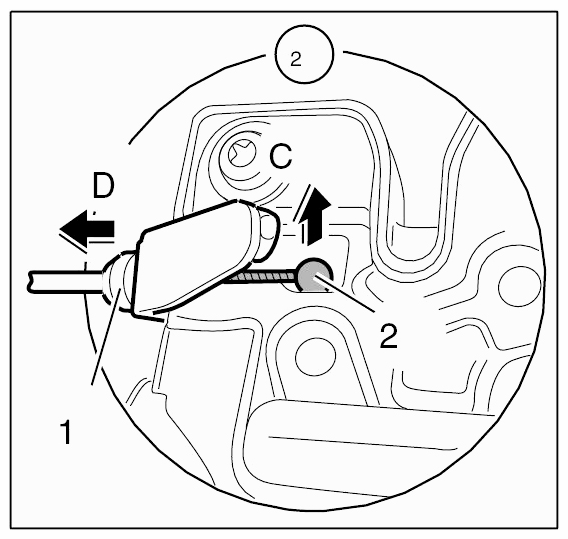

1. 3.1. Disengage ball head -2- (-Arrow C-) and remove front section of cable for front lid lock -1- (-Arrow D-).

  Fig 4: Removing Front Section Of Cable For Front Lid Lock And Ball Head
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
