Removing Emergency Release Cable

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

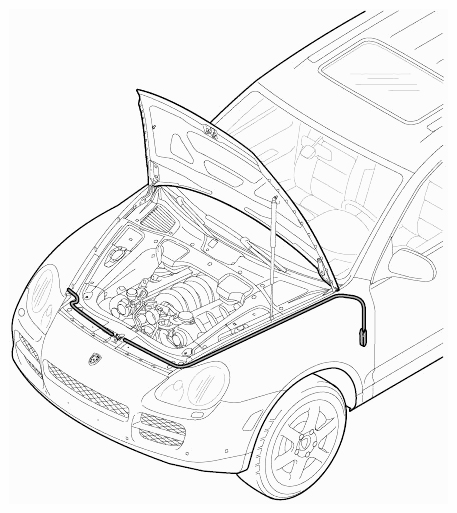

Fig 1: Identifying Emergency Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

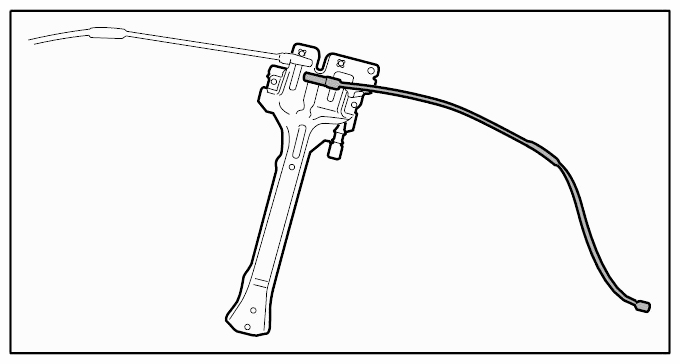

Fig 2: Identifying Emergency Front Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The lower part of the lock does not have to be removed from the lock support to facilitate the removal of the front section of the cable for the front lid lock.

Remove front lock lower part → Removing And Installing Lower Part Of Lock (Front) .
Unclip emergency release cable.
1. 2.1. Release emergency release cable -1- (-Arrow A-) and swivel it out (-Arrow B-).

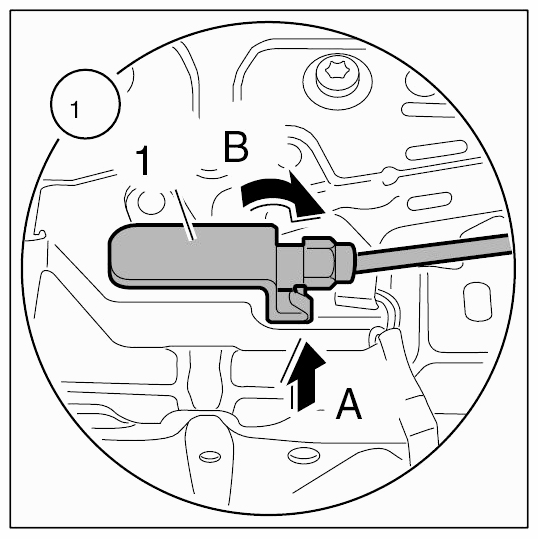

  Fig 3: Removing Emergency Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage ball head and remove emergency release cable.
1. 3.1. Disengage ball head -2- (-Arrow C-) and remove emergency release cable -1- (-Arrow D-).

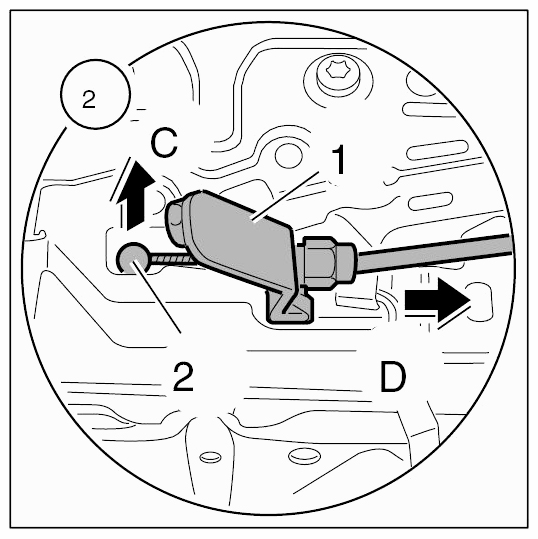

  Fig 4: Removing Ball Head And Emergency Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
