Preparing Connection Areas Of Body For Installing Front Side Member

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

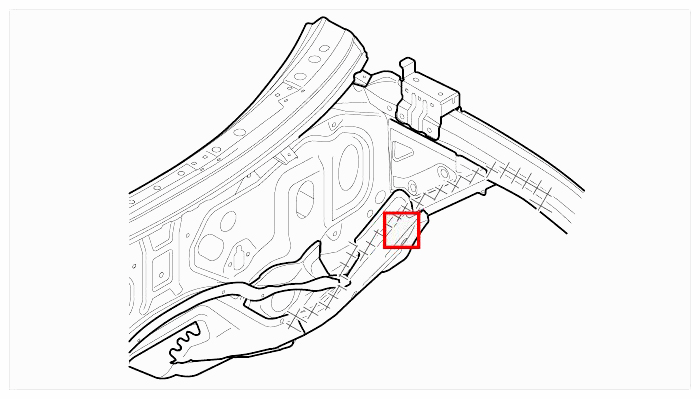

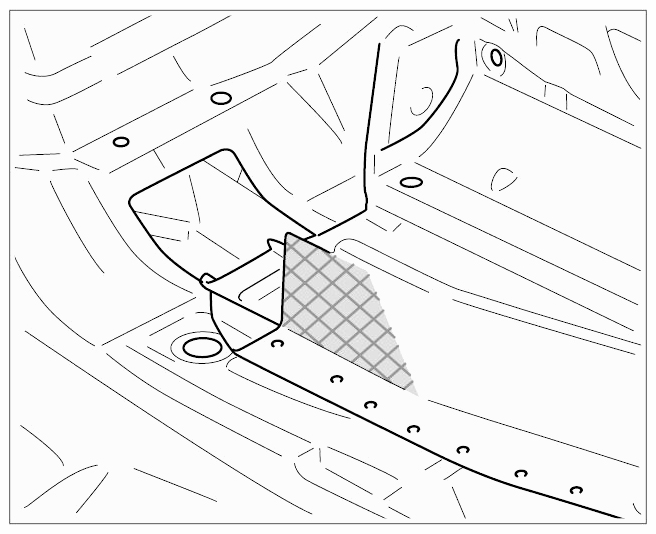

Fig 1: Identifying Spring Strut Mount Connection Area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Prepare connection areas of spring strut mount for installation.
1. 1.1. Clean undersealing, adhesive residue and paint from the marked areas of the body connection flanges using a hot-air gun and rotary brush. Grind the connection flanges until bare.

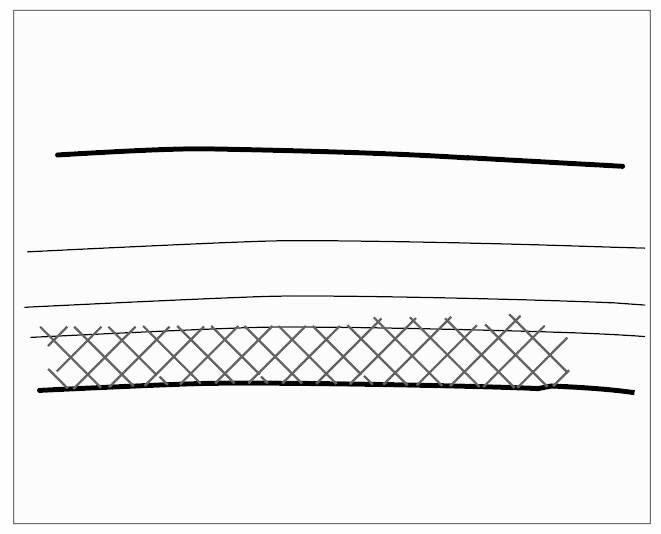

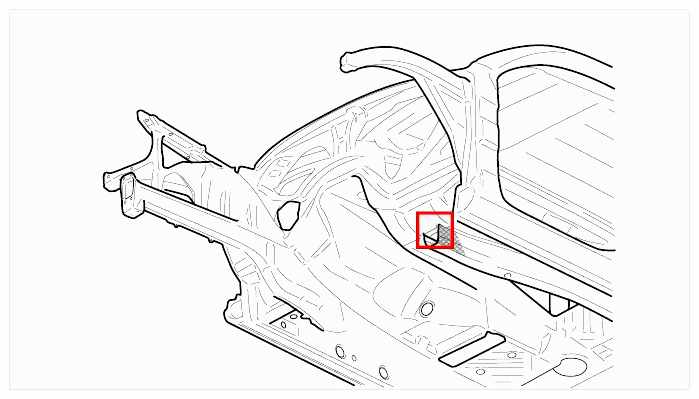

  Fig 2: Identifying Connection Areas Of Spring Strut Mount For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

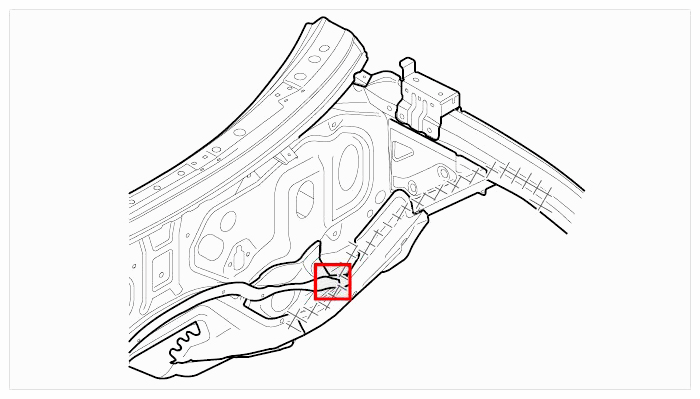

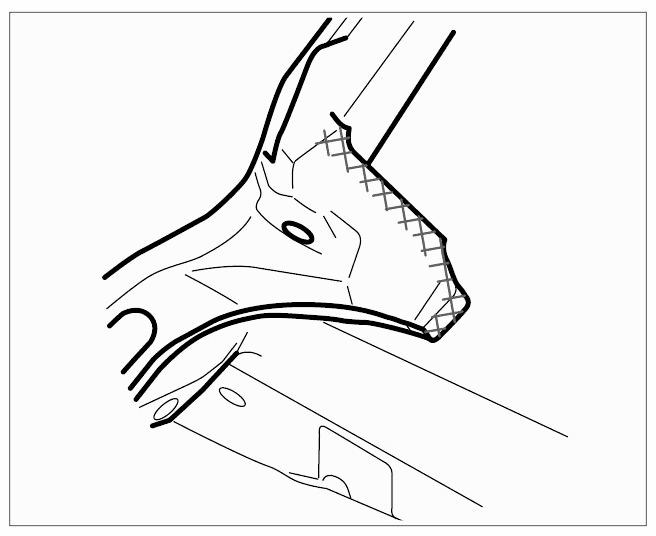

  Fig 3: Identifying Spring Strut Mount Connection Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare connection areas of spring strut mount for installation.
1. 2.1. Clean undersealing, adhesive residue and paint from the marked areas of the body connection flanges using a hot-air gun and rotary brush. Grind the connection flanges until bare.

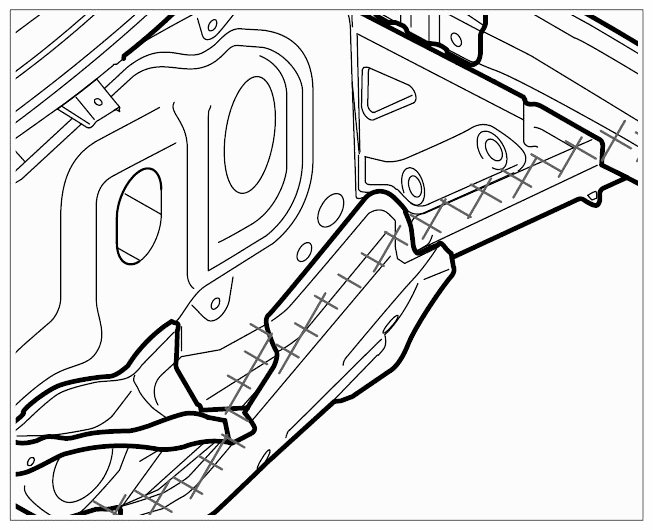

  Fig 4: Identifying Connection Areas Of Spring Strut Mount For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

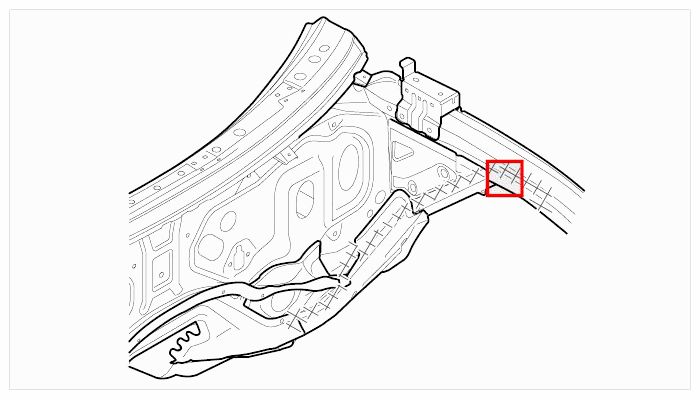

  Fig 5: Identifying Spring Strut Mount Connection Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare connection areas of spring strut mount for installation.
1. 3.1. Clean undersealing, adhesive residue and paint from the marked areas of the body connection flanges using a hot-air gun and rotary brush. Grind the connection flanges until bare.

  Fig 6: Identifying Connection Areas Of Spring Strut Mount For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

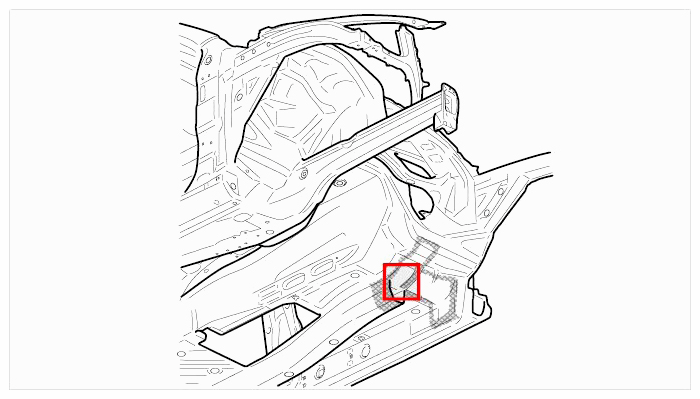

  Fig 7: Identifying Firewall Lower Section Connection Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare connection areas of firewall lower section for installation.
1. 4.1. Clean undersealing, adhesive residue and paint from the marked areas of the body connection flanges using a hot-air gun and rotary brush. Grind the connection flanges until bare.

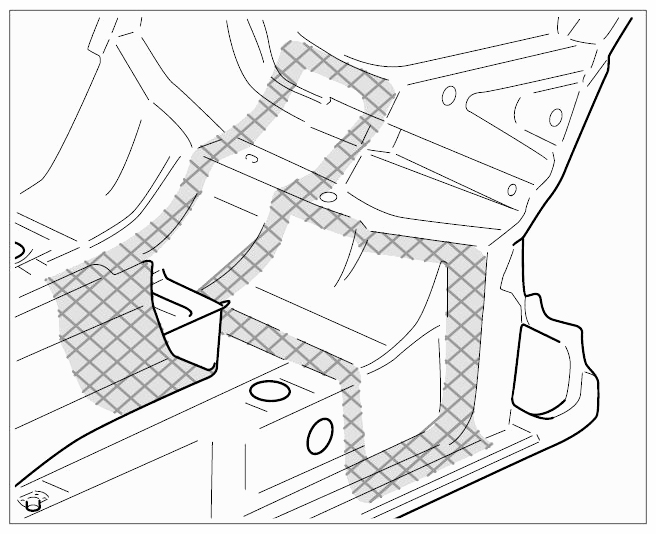

  Fig 8: Identifying Connection Areas Of Firewall Lower Section For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 9: Identifying Firewall Lower Section Connection Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare connection areas of firewall lower section for installation.
1. 5.1. Clean undersealing, adhesive residue and paint from the marked areas of the body connection flanges using a hot-air gun and rotary brush. Grind the connection flanges until bare.

  Fig 10: Identifying Connection Areas Of Firewall Lower Section For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

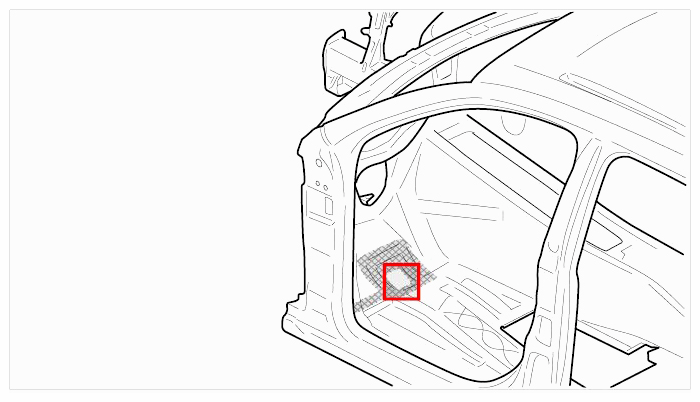

  Fig 11: Identifying Floor Inner Section Connection Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare connection areas of floor inner section for installation.
1. 6.1. Clean undersealing, adhesive residue and paint from the marked areas of the body connection flanges using a hot-air gun and rotary brush. Grind the connection flanges until bare.

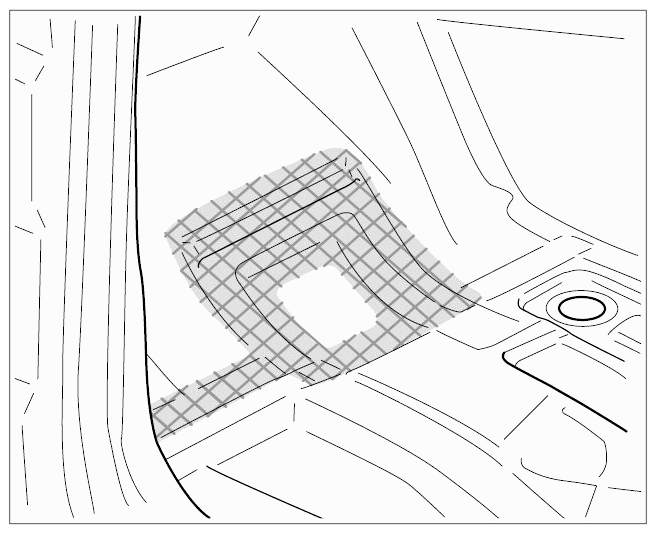

  Fig 12: Identifying Connection Areas Of Floor Lower Section For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
