Position wing trim panel -3-
and secure with the expanding rivets -1-
.

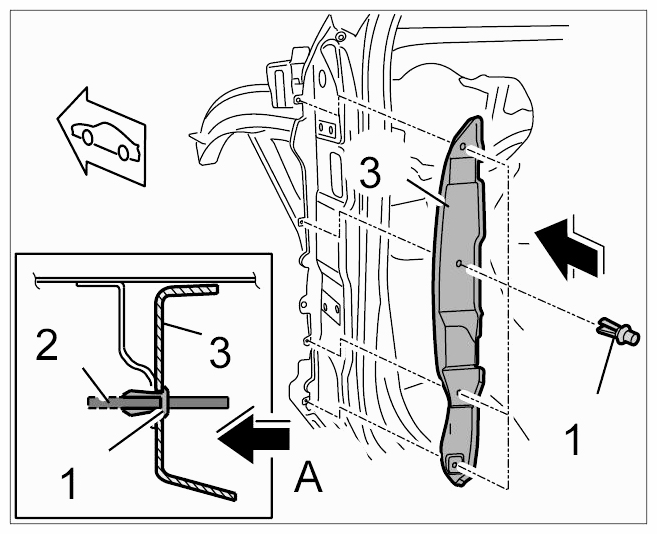

Fig 1: Positioning Wing Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in the pins -2-
of the expansion rivets -1-
(-arrow A-
).
