Removing Spring Strut Mount

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

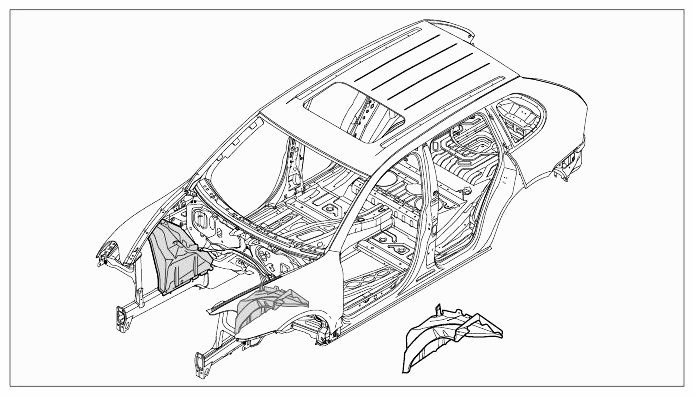

Fig 1: Spring Strut Mount Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

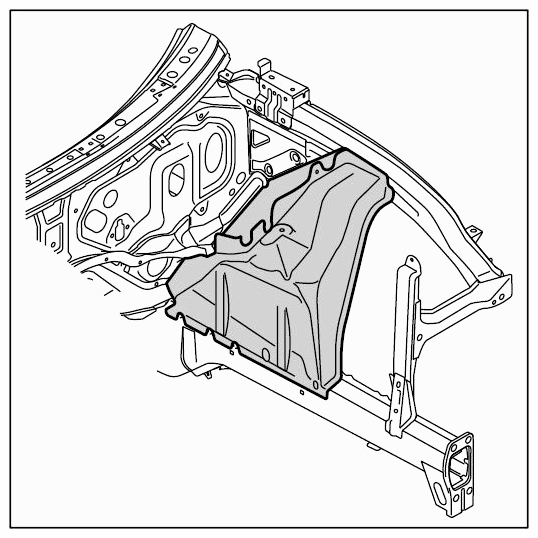

Fig 2: Identifying Spring Strut Mount And Sheetmetal Parts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detach the spring strut mount.

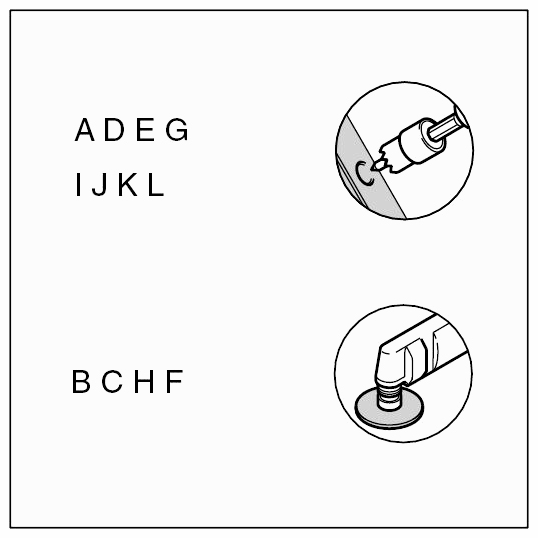

Fig 3: Detaching Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Cut the welded joint between the spring strut mount and the top side member, firewall and side member using the spotweld cutter (areas -A, D-, -E-, -I-, -J-, -K, L-) .

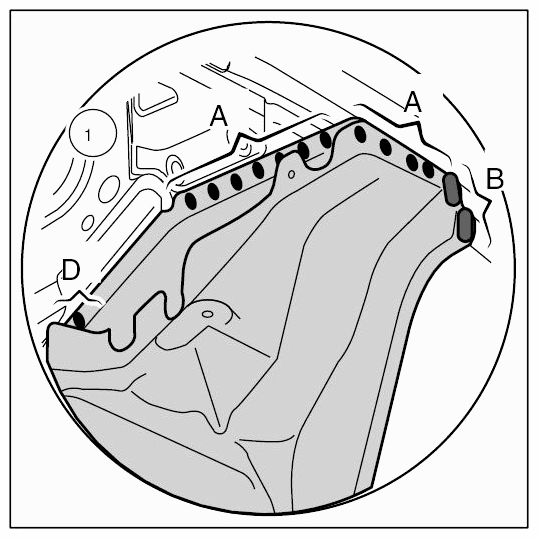

  Fig 4: Identifying Spring Strut Mount And Top Side Member, Firewall And Side Member And Welded Joint Cutting Areas (A, B And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

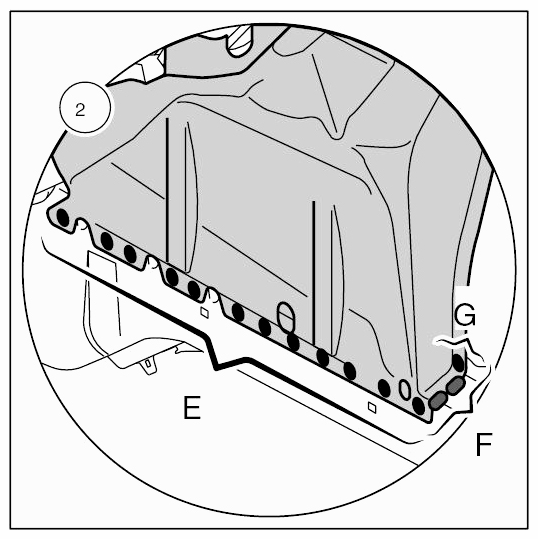

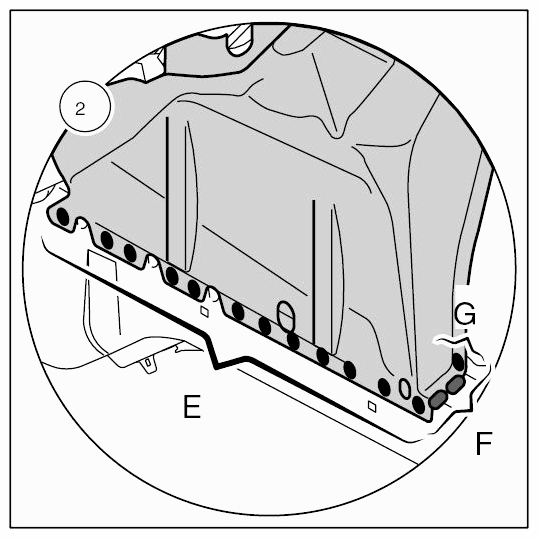

  Fig 5: Identifying Spring Strut Mount And Top Side Member, Firewall And Side Member And Welded Joint Cutting Areas (E, F And G)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

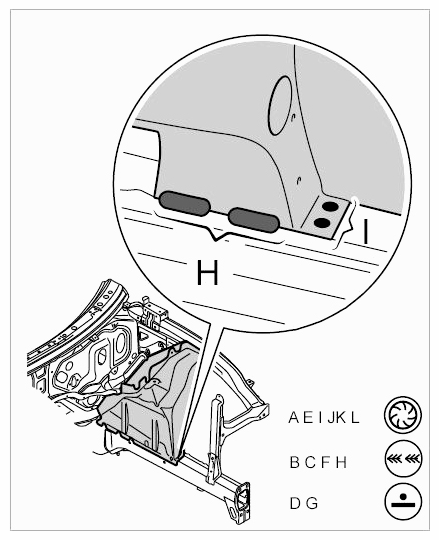

  Fig 6: Identifying Spring Strut Mount And Top Side Member, Firewall And Side Member And Welded Joint Cutting Areas (H And I)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

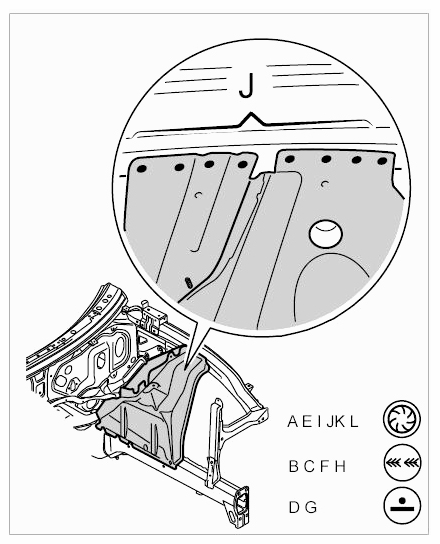

  Fig 7: Identifying Spring Strut Mount And Top Side Member, Firewall And Side Member And Welded Joint Cutting Areas (J)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

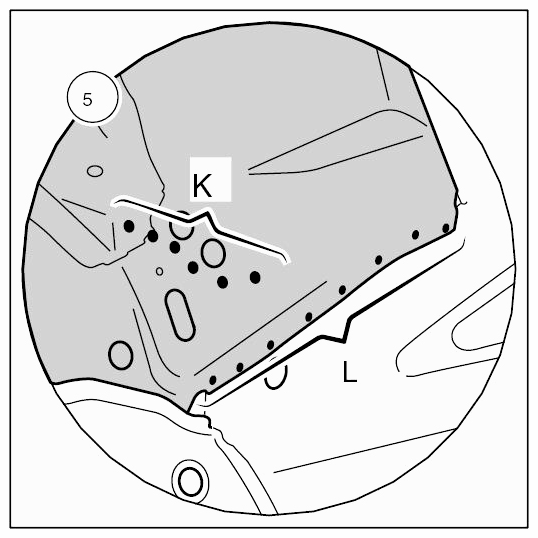

  Fig 8: Identifying Spring Strut Mount And Top Side Member, Firewall And Side Member And Welded Joint Cutting Areas (K)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Grind the inert gas arc welding joints between the spring strut mount, top side member, firewall and side member using the parting grinder (areas -B-, -C-, -F- and -H-) .

  Fig 9: Identifying Grind Inert Gas Arc Welding Joints Between Spring Strut Mount, Top Side Member, Firewall And Side Member (Areas A, B And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

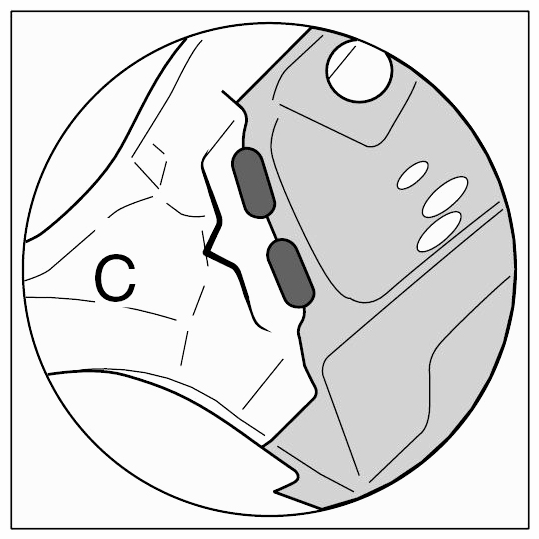

  Fig 10: Identifying Grind Inert Gas Arc Welding Joints Between Spring Strut Mount, Top Side Member, Firewall And Side Member (Areas C)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 11: Identifying Grind Inert Gas Arc Welding Joints Between Spring Strut Mount, Top Side Member, Firewall And Side Member (Areas E, F And G)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 12: Identifying Grind Inert Gas Arc Welding Joints Between Spring Strut Mount, Top Side Member, Firewall And Side Member (Areas H And I)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the spring strut mount.
