Preparing Spring Strut Mount For Installation

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Spring Strut Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Grind both sides of the connection flange of the new parts in the marked areas -A, B-, -D, E-, -F, G-, -H, I-, -J- until bare using a rotary brush.

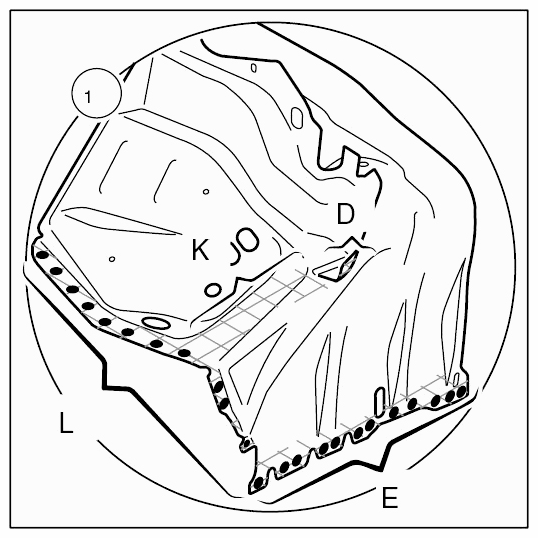

  Fig 2: Identifying Grind Both Sides Of Connection Flange Of Parts In Marked Areas (K, D, E And L)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

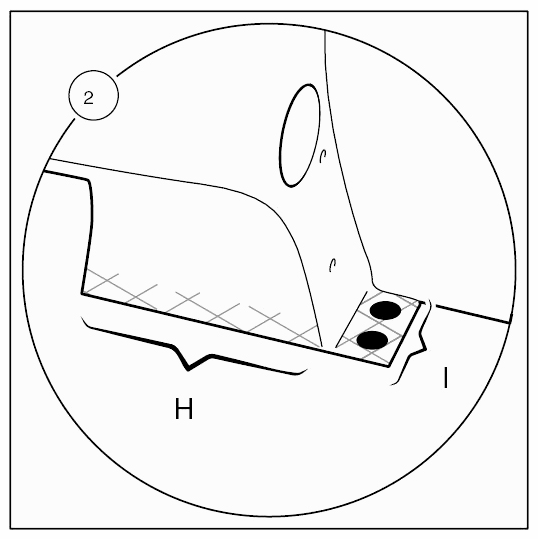

  Fig 3: Identifying Grind Both Sides Of Connection Flange Of Parts In Marked Areas (H And I)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

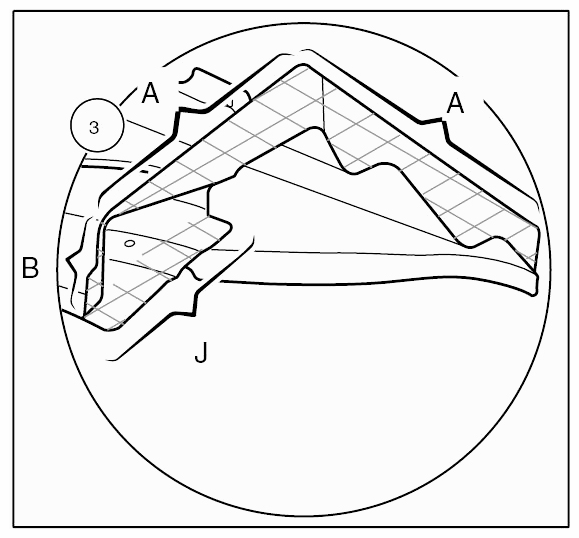

  Fig 4: Identifying Grind Both Sides Of Connection Flange Of Parts In Marked Areas (A, B And J)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill holes for plug welding using inert gas.
1. 2.1. Drill or punch holes with a diameter of 7 mm in the fastening flanges of the spring strut mount (areas -A-, -E, L, K-, -I-, -J-) . Maintain spacing as on the old part.

  Fig 5: Identifying Spring Strut Mount Fastening Flanges Drilling Holes Areas (A, B And J)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

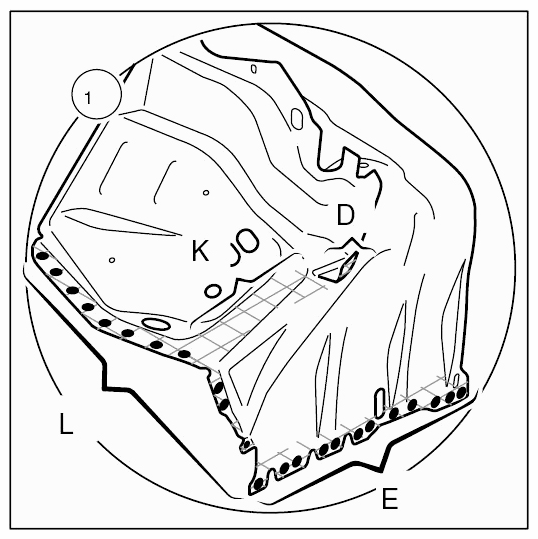

  Fig 6: Identifying Spring Strut Mount Fastening Flanges Drilling Holes Areas (D, E, K And L)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 7: Identifying Spring Strut Mount Fastening Flanges Drilling Holes Areas (H And I)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.

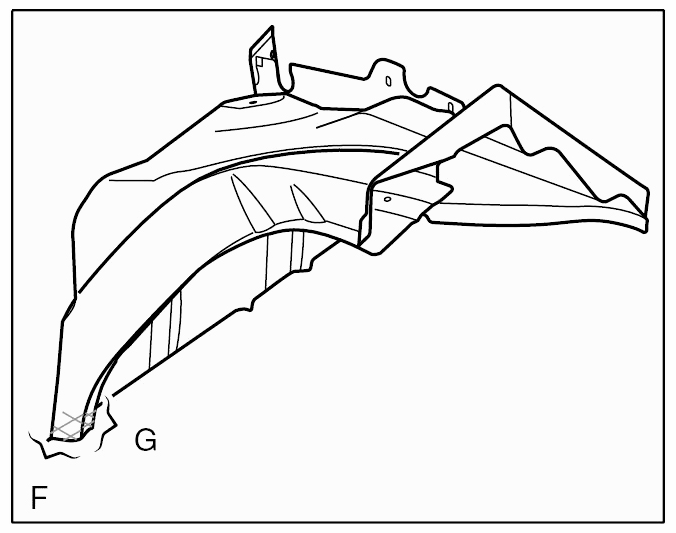

Fig 8: Coating Spot-Weld Flange Areas With Zinc Powder Paint (G)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Coat all spot-weld flange areas with zinc powder paint (areas -D-, -G- ).

  Fig 9: Coating Spot-Weld Flange Areas With Zinc Powder Paint (D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
