Preparing Connection Areas Of Body For Installing Spring Strut Mounts

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

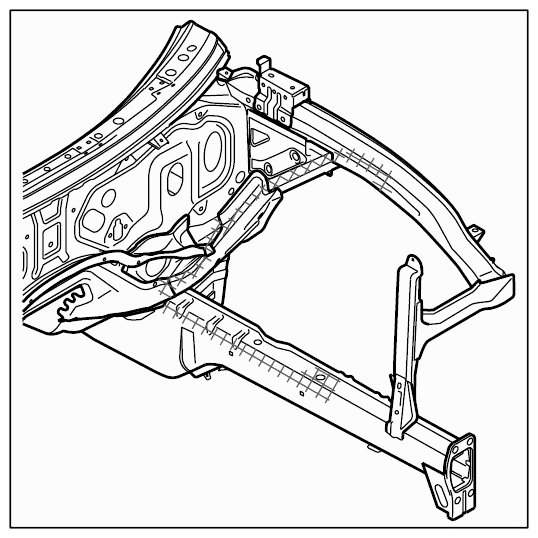

Fig 1: Identifying Spring Strut Mounts Body Connection Areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Clean the body connection flanges of undersealing, adhesive residue and paint in the marked areas using a hot-air gun or rotary brush. Grind the connection flange until bare.

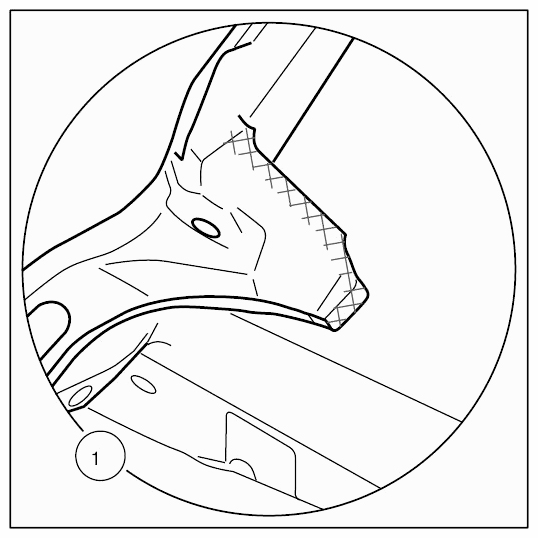

  Fig 2: Identifying Body Connection Flanges Of Undersealing, Adhesive Residue And Paint In Marked Areas (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

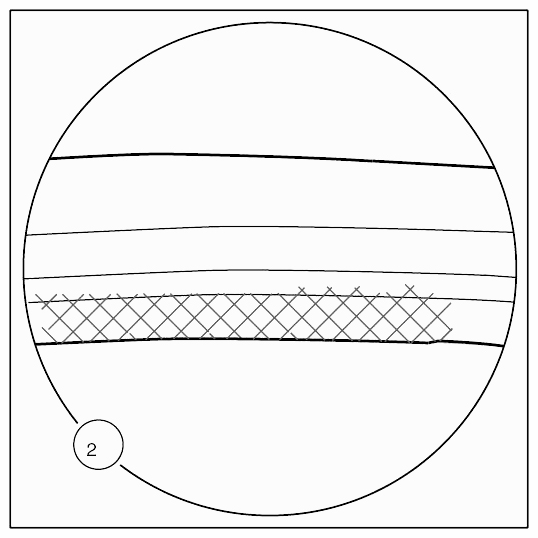

  Fig 3: Identifying Body Connection Flanges Of Undersealing, Adhesive Residue And Paint In Marked Areas (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
