Installing Spring Strut Mount

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

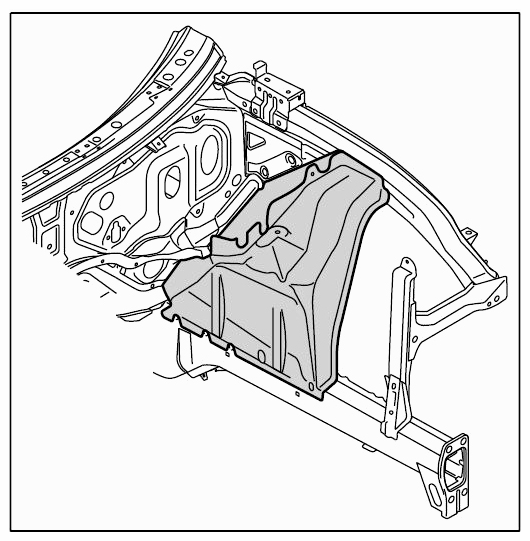

Fig 1: Identifying Spring Strut Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit the spring strut mount to the body.
1. 1.1. Position the spring strut mount against the body and fix in place with a straightened bracket.
2. 1.2. Fix the spring strut mount to the body with tensioning clamps.
Resistance spot-weld the spring strut mount.
1. 2.1. Resistance spot-weld the spring strut mount in areas -D- and -G- .

  Fig 2: Identifying Spring Strut Mount Spot Welding Areas (A, B, C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Identifying Spring Strut Mount Spot Welding Areas (E, F And G)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inert gas arc weld the spring strut mount.
1. 3.1. Weld the spring strut mount in areas -B-, -C-, -F- and -H- with an interrupted butt weld seam. Inert gas plug-weld the spring strut mount in areas -A-, -E-, -I-, -J-, -K- and -L-

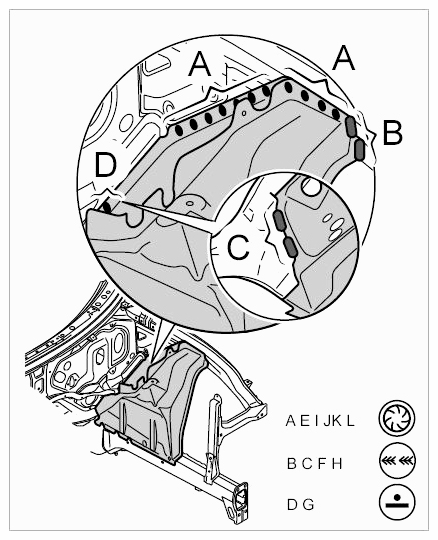

  Fig 4: Identifying Spring Strut Mount Welding Areas (A, B, C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

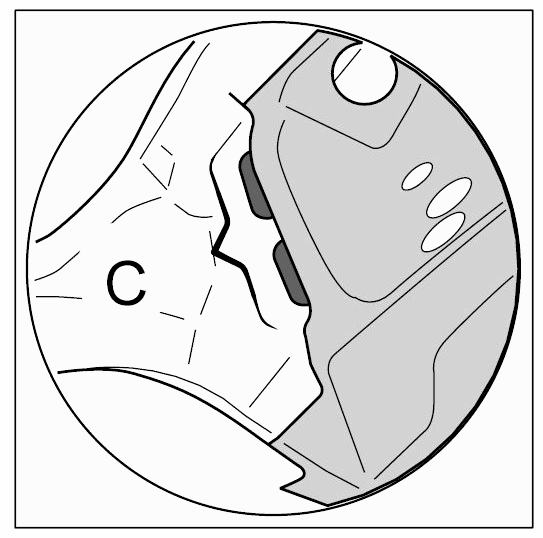

  Fig 5: Identifying Spring Strut Mount Welding Areas (C)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

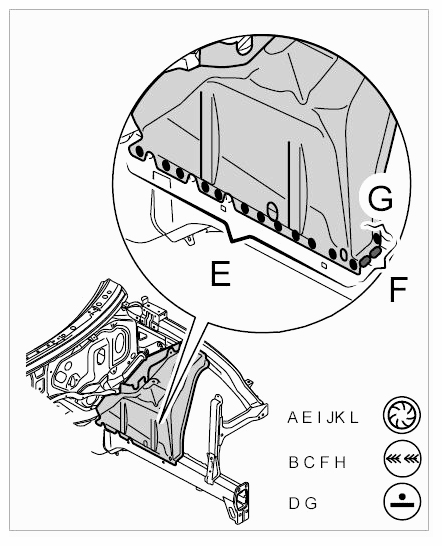

  Fig 6: Identifying Spring Strut Mount Welding Areas (E, F And G)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

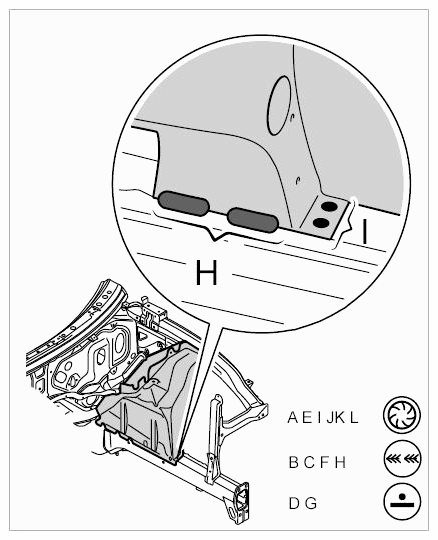

  Fig 7: Identifying Spring Strut Mount Welding Areas (H And I)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

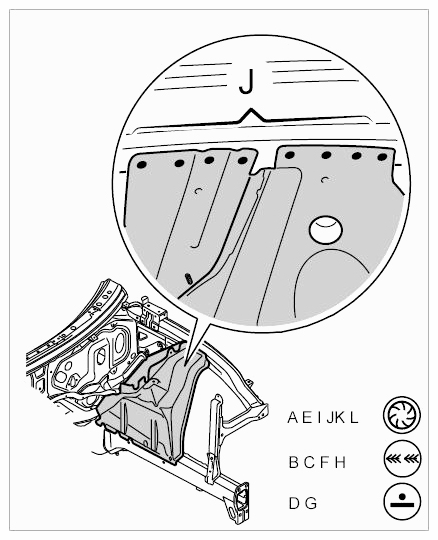

  Fig 8: Identifying Spring Strut Mount Welding Areas (J)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

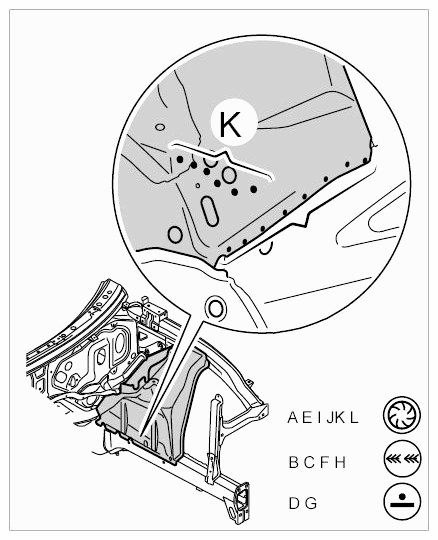

  Fig 9: Identifying Spring Strut Mount Welding Areas (K)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

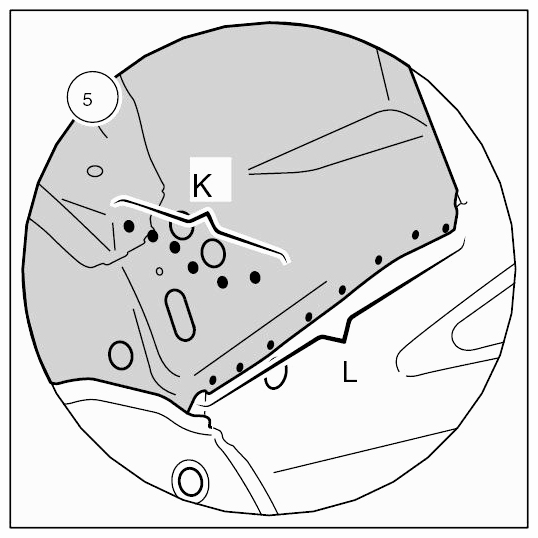

  Fig 10: Identifying Spring Strut Mount Welding Areas (K And L)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install torque support bracket.
- only when replacing the right spring strut mount
1. 4.1. → Installing Spring Strut Mount
