Installing Bracket For Torque Support

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

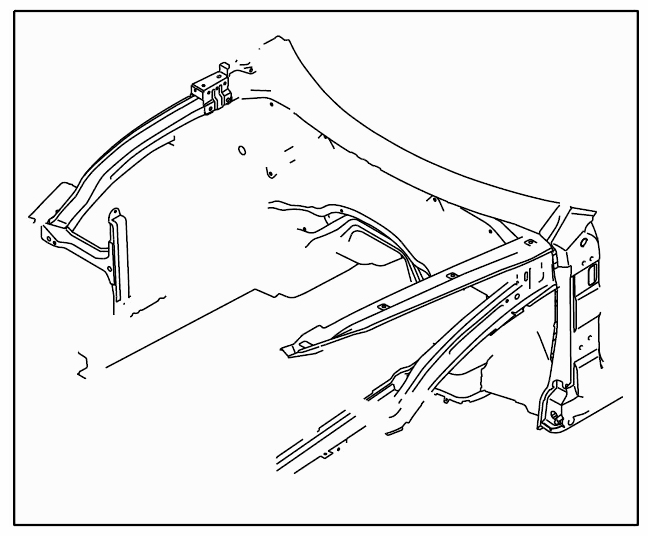

Fig 1: Identifying Torque Support Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

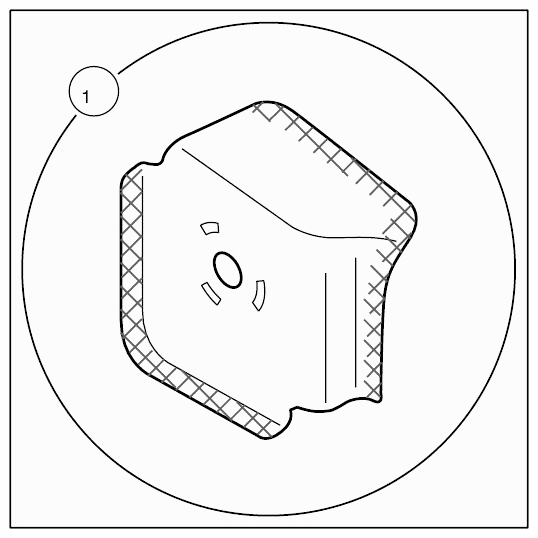

Clean welding and sealing areas.
1. 1.1. Grind both sides of the connection flange of the new parts in the marked areas until bare using a rotary brush.
2. 1.2. Grind the spring strut mount close to contact surfaces to the new part until bare.

  Fig 2: Identifying Grind Spring Strut Mount To Contact Surfaces
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fix bracket for torque support.
1. 2.1. Fix the torque support bracket by assembling the mounting bearer on the body, aligning it and securing it with tensioning clamps.

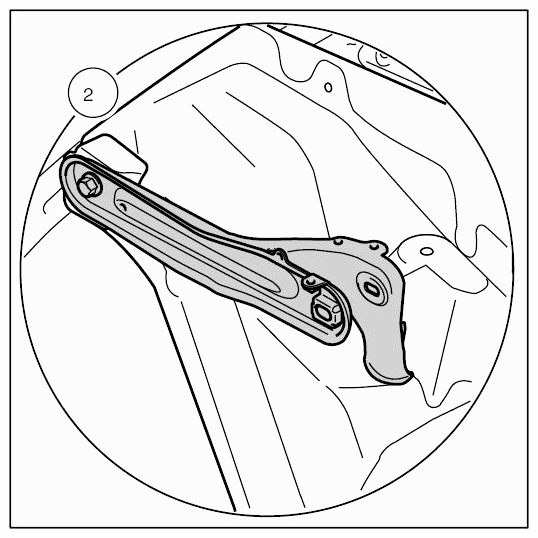

  Fig 3: Identifying Torque Support Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inert gas arc weld the torque support bracket.
1. 3.1. Inert gas arc weld the torque support bracket in the areas -M, N- with a full weld.

  Fig 4: Identifying Gas Arc Weld Torque Support Bracket Welding Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

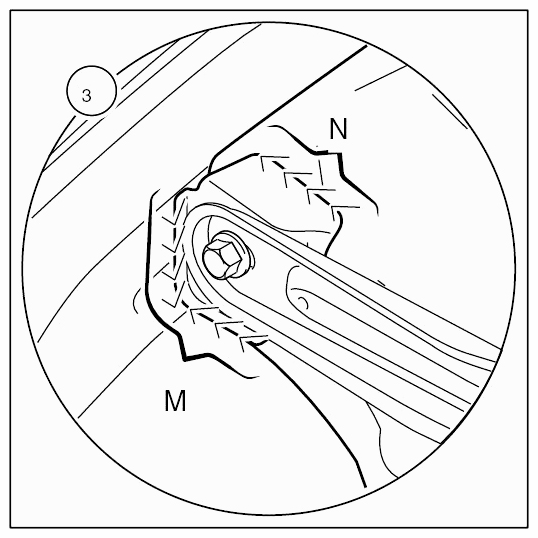

  Fig 5: Identifying Gas Arc Weld Torque Support Bracket Welding Areas (M, N)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inert gas arc weld the torque support bracket.
1. 4.1. Remove the mounting bearer.
2. 4.2. Inert gas arc weld the torque support bracket in area -O- with a full weld.

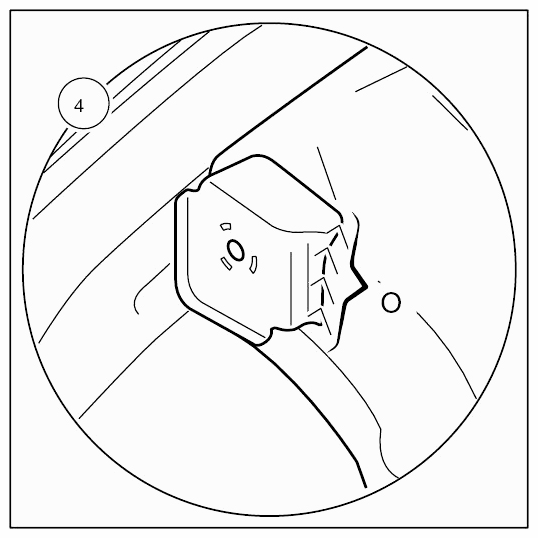

  Fig 6: Identifying Gas Arc Weld Torque Support Bracket Welding Area (O)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
