Removing Lock Carrier

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

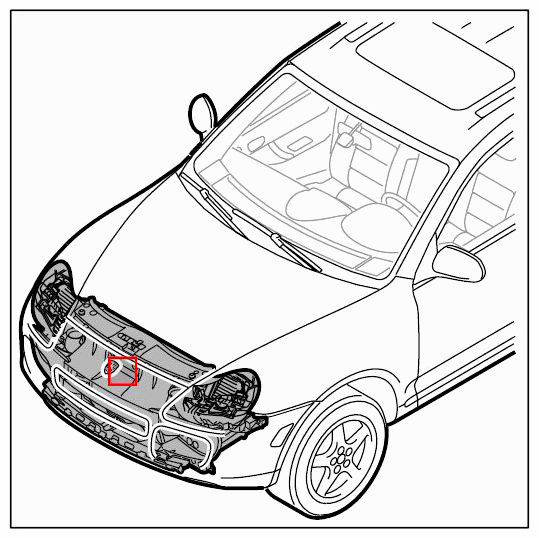

Fig 1: Lock Support Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew radiator module.
1. 1.1. Remove upper fastening screws -3- on radiator module -arrows- and secure radiator module -1- onto vehicle to prevent it from tipping over or falling.

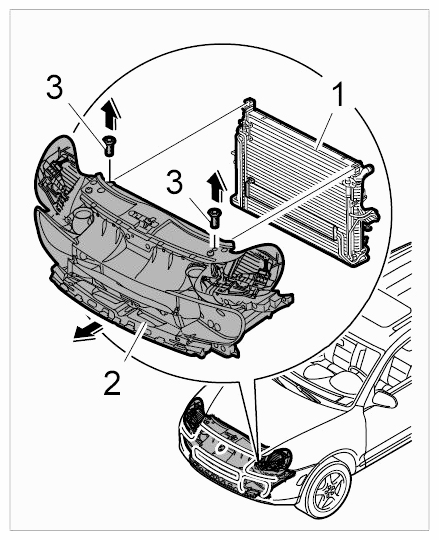

  Fig 2: Unscrewing Radiator Module
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Release fastening clamp -2- on the left and right and remove -arrow- .

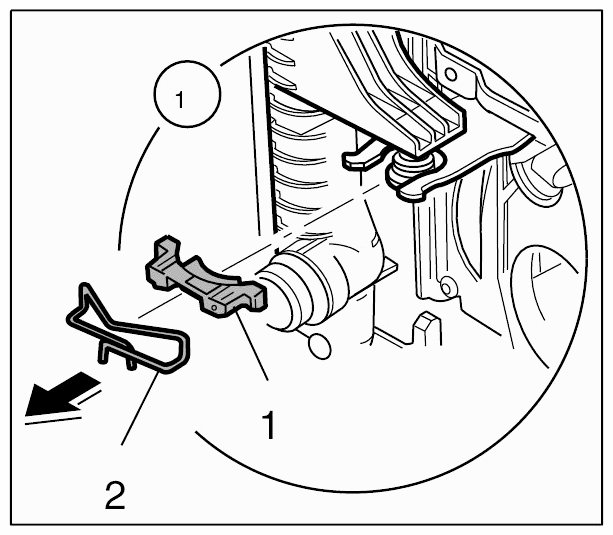

  Fig 3: Unscrewing Radiator Module
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Remove plastic guide element -1- on the left and right -arrow- .
4. 1.4. Release plug connection at the headlight mount on the left and right -arrow A- and pull off -arrow B-

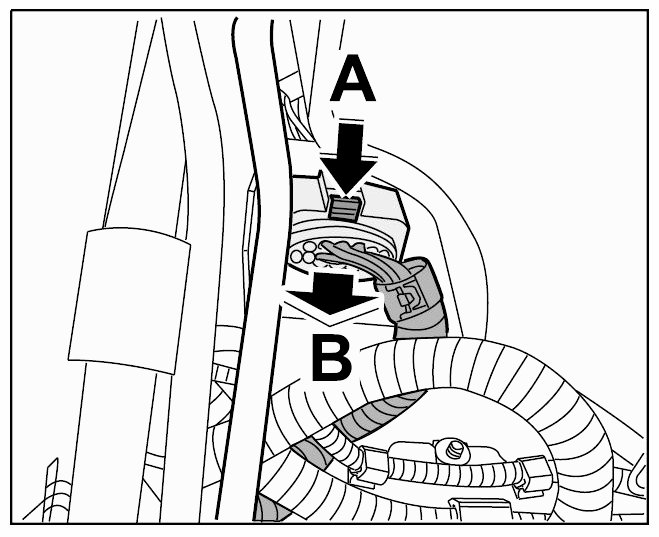

  Fig 4: Disconnecting Plug Connection At Headlight Mount
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove service fastening screws.
1. 2.1. Get a second worker to prevent lock carrier from falling.
2. 2.2. Remove service fastening screws -4- (-arrows-) .

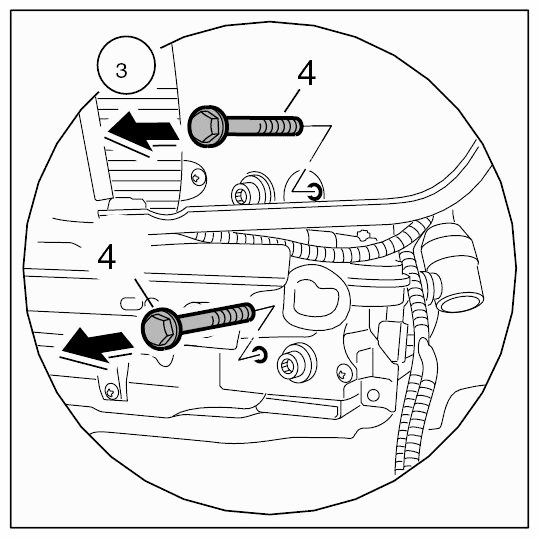

  Fig 5: Removing Service Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lock carrier.
1. 3.1. Remove lock carrier -2- by pulling it towards the front -arrow- .

  Fig 6: Removing Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
