Installing Lock Carrier

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

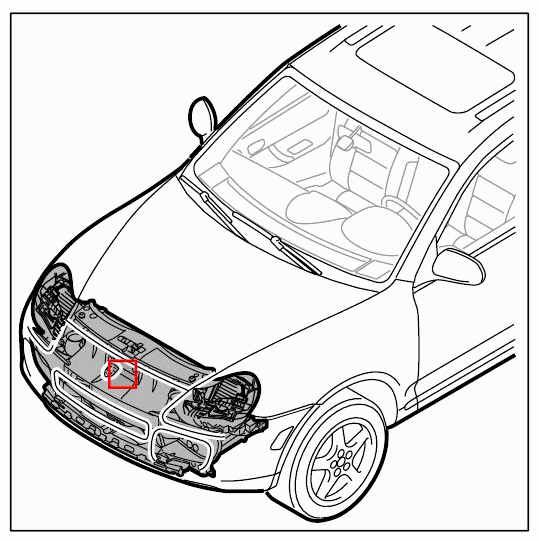

Fig 1: Identifying Installation Position Of Lock Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install lock carrier.

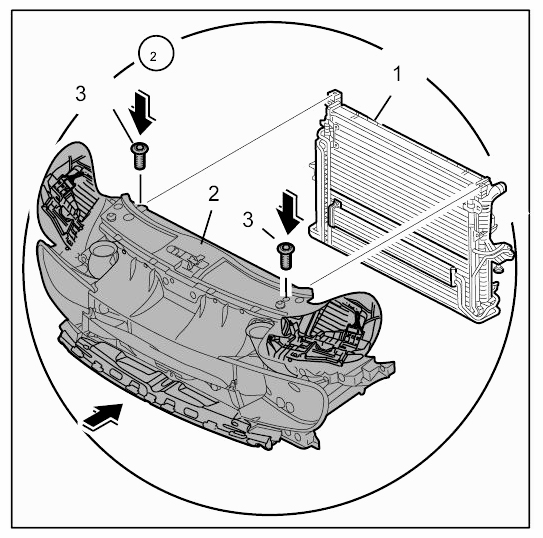

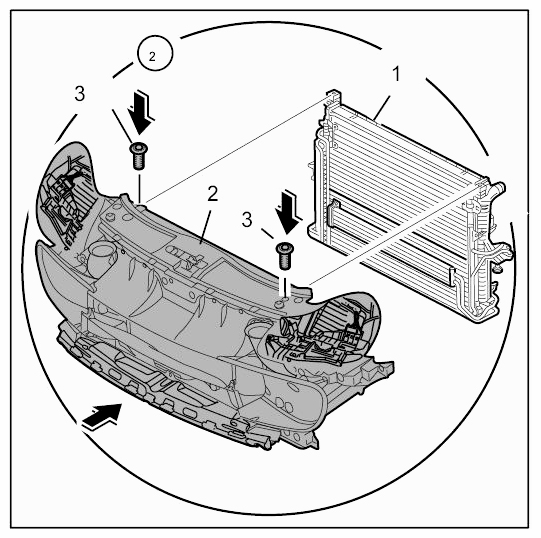

1. 1.1. Position lock carrier -2- from the front -arrow- .

  Fig 2: Installing Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in service fastening screws.
1. 2.1. Get a second worker to prevent lock carrier from falling.

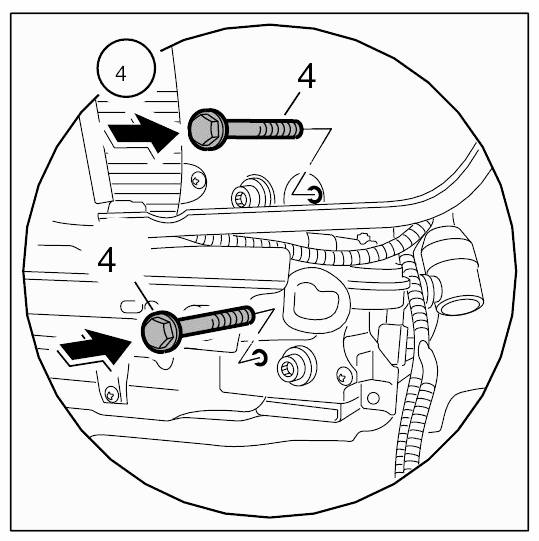

2. 2.2. Screw in and tighten service fastening screws -4- (-arrows-) .

  Fig 3: Screwing In Service Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten radiator module.

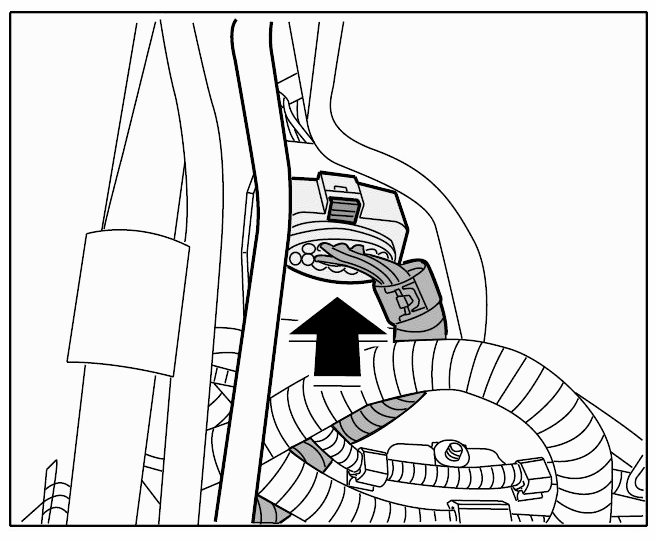

1. 3.1. Connect plug connection at the headlight mount on the left and right -arrow- , until the plug connection engages securely.

  Fig 4: Connecting Plug Connection At Headlight Mount
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Slide radiator module -1- into the fastening fork on the lock mount.

  Fig 5: Inserting Radiator Module
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

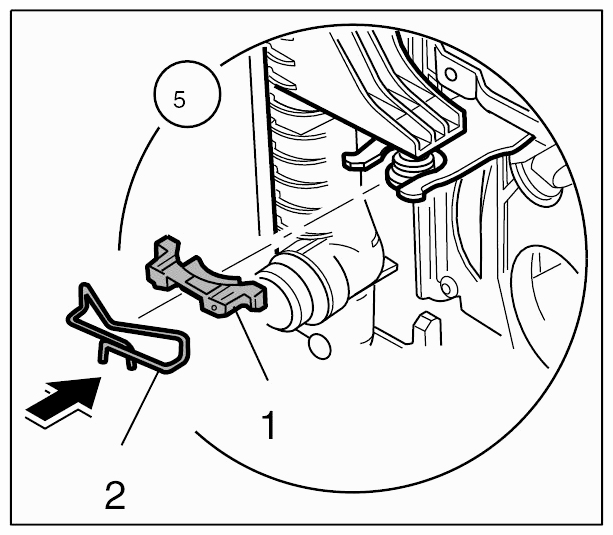

3. 3.3. Install plastic guide element -1- on the left and right -arrow- .

  Fig 6: Fastening Radiator Module
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Fit fastening clamp -2- on the left and right and hook in -arrow- .
5. 3.5. Screw in upper fastening screws -3- of radiator module -arrows- and tighten to the specified tightening torque → Tightening torque: 6.5 Nm (5 ft lbs.)+/-1.0 Nm (+/-0.5 ft lbs.).

  Fig 7: Fastening Radiator Module
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
