Connecting Cable For Front Lid Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

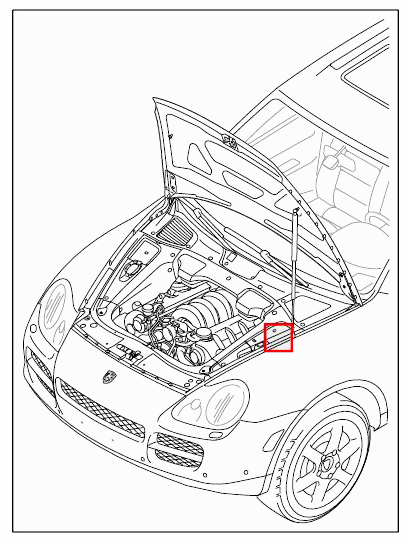

Fig 1: Identifying Front Lid Lock Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

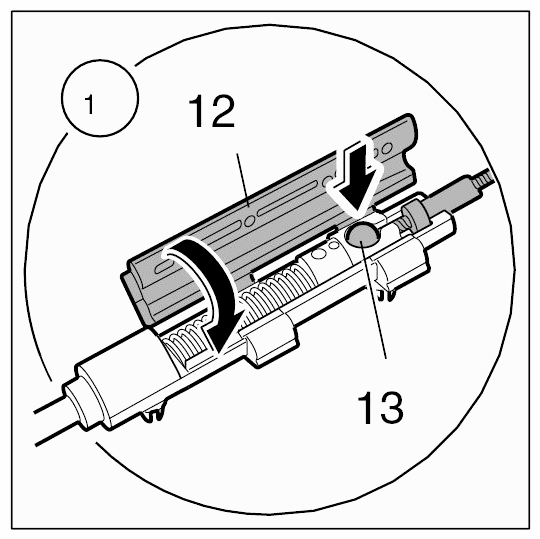

Engage the cable and close the connection piece.
1. 1.1. Engage the cable for the front lid lock -13- and close the lid -12- on the connection piece.

  Fig 2: Engaging Front Lid Lock Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

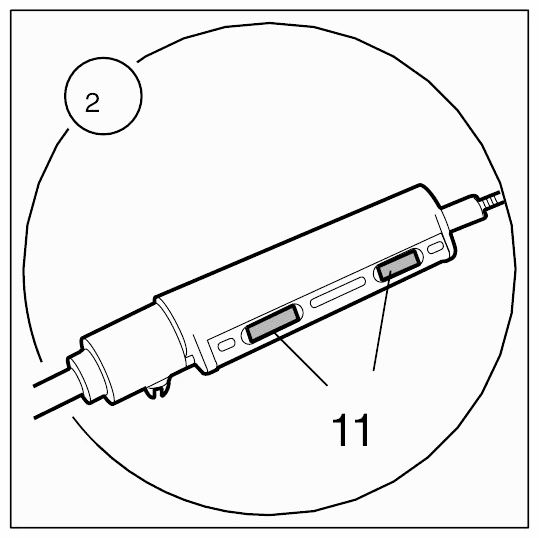

Attach the connection piece.
1. 2.1. The locking tabs -11- must audibly engage in place.

  Fig 3: Identifying Locking Tabs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

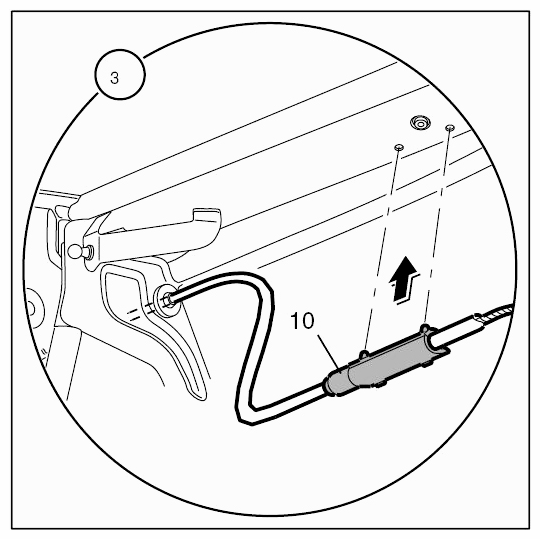

Secure the connection piece to the vehicle body.
1. 3.1. Clip the connection piece -10- to the body.

  Fig 4: Identifying Connection Piece To Vehicle Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
