Underside Of Floor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

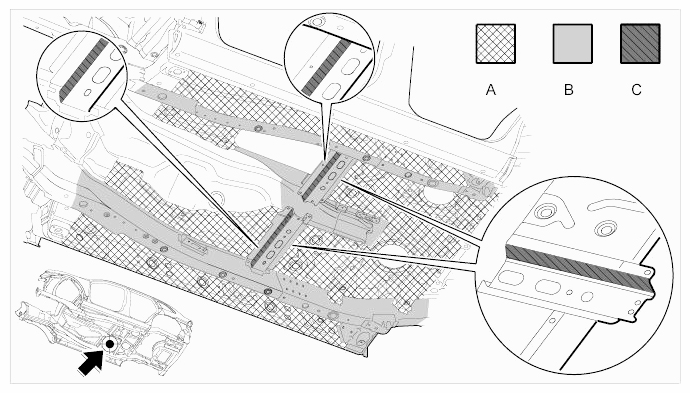

Fig 1: Identifying Underside Floor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

0.3 mm
0.6 mm
1.0 mm
