Underside Of Floor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

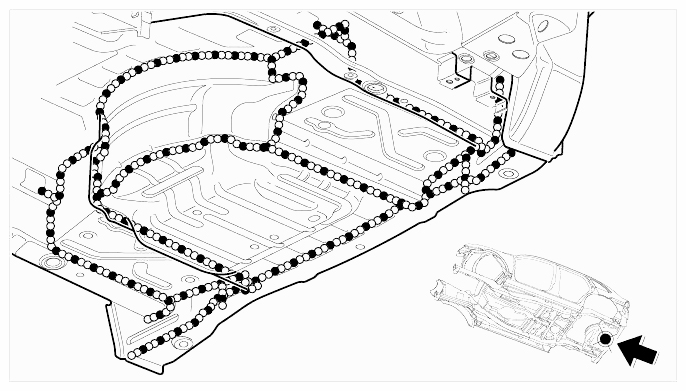

Fig 1: Identifying Underside Floor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The seam sealing compound may only be applied thinly in the marked areas.

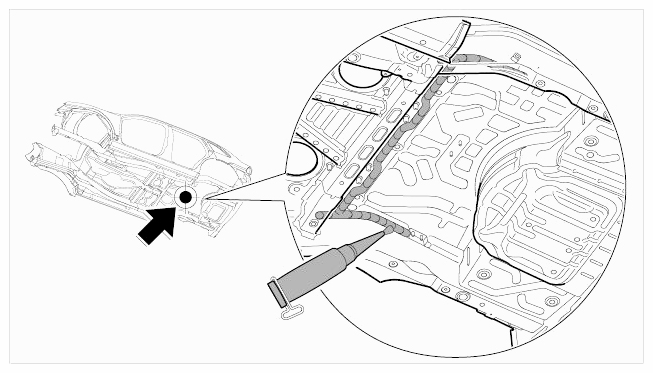

Fig 2: Identifying Underside Floor And Seam Sealing Compound Mark Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

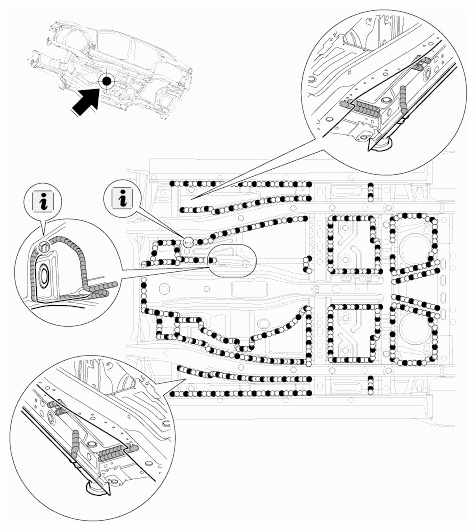

Fig 3: Identifying Underside Floor And Seam Sealing Compound Applying Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

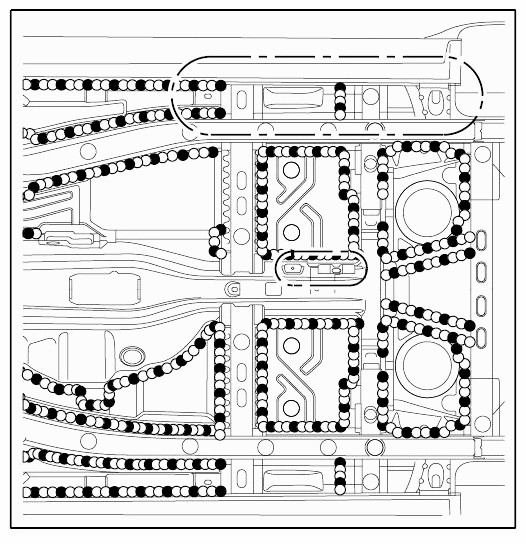

Fig 4: Identifying Underside Floor And Seam Sealing Compound Mark Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
