Top Of Lower Side Member And Floor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The seam sealing compound may only be applied thinly in the marked areas.

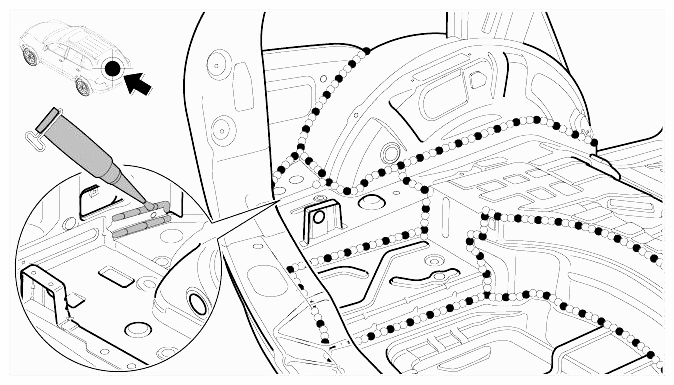

Fig 1: Identifying Top Lower Side Member And Floor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The seam sealing compound may only be applied thinly in the marked areas.

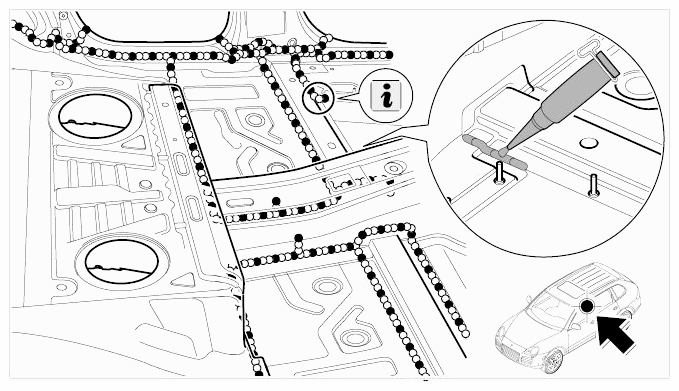

Fig 2: Identifying Top Lower Side Member Floor And Seam Sealing Compound Applying Areas (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

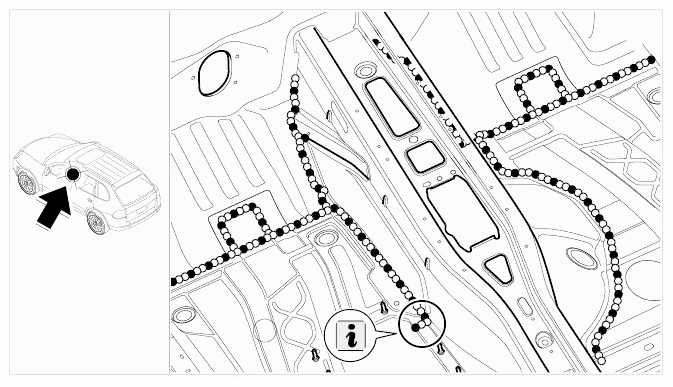

Fig 3: Identifying Top Lower Side Member Floor And Seam Sealing Compound Applying Areas (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
