CAUTION: → Observe the safety instructions of the individual adhesive set components.

Information

In addition to this manual, observe the relevant job descriptions for body repairs!

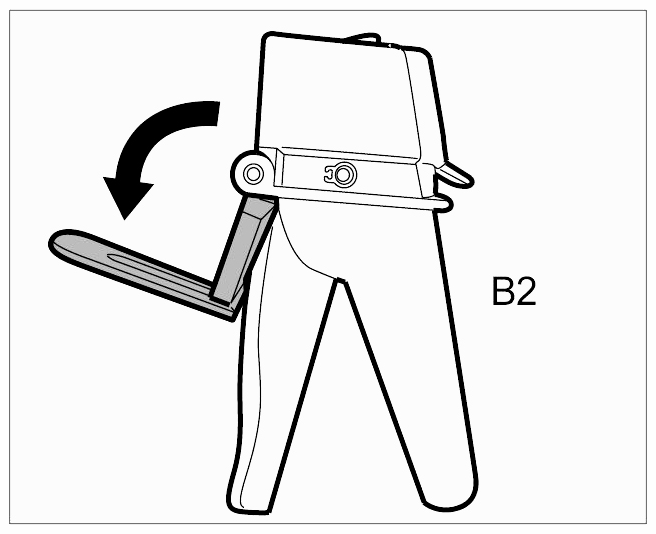

Fold out holder.
1. 1.1. Release holder -arrow- and fold down.

  Fig 1: Releasing Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

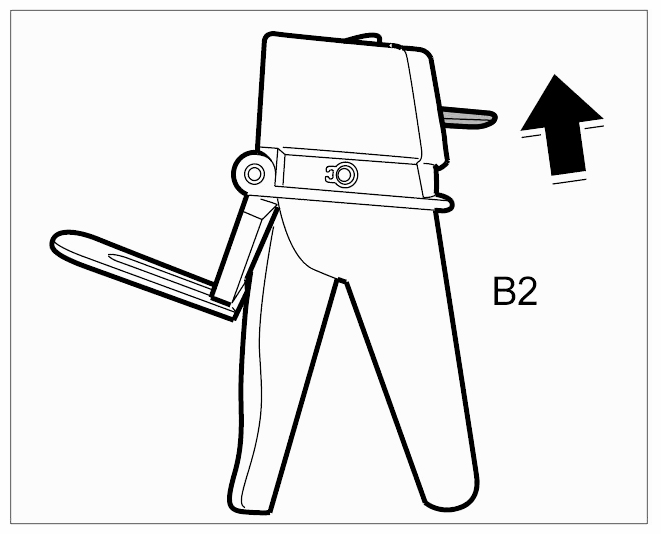

Press sliding lock upwards
1. 2.1. Press sliding lock upwards in direction of arrow -arrow- .

  Fig 2: Pressing Sliding Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

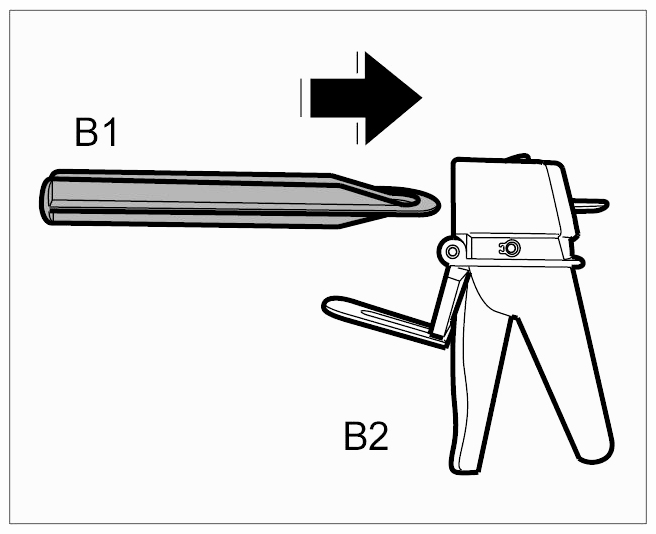

Insert piston rod.
1. 3.1. Hold sliding lock pressed and insert piston rod -B1- completely into the gun grip -B2- .

  Fig 3: Inserting Piston Rod
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

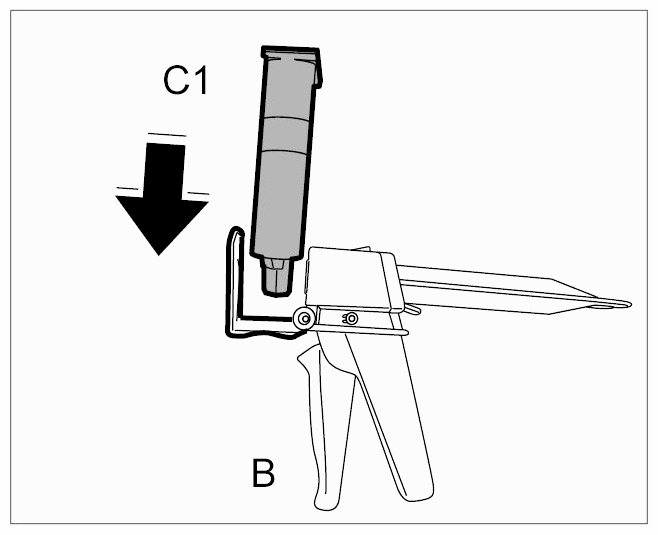

Insert mixing cartridge.
1. 4.1. Insert double cartridge -C1- into the holder from above.

  Fig 4: Inserting Cartridges
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

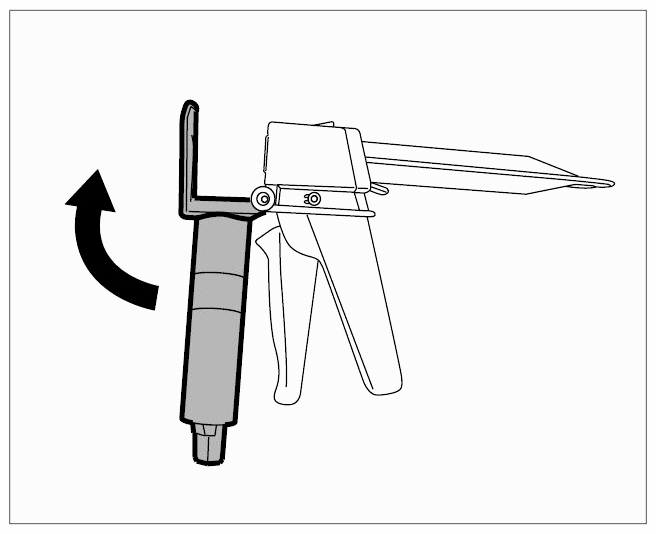

Engage holder with double cartridge.
1. 5.1. Swivel holder with double cartridge upwards by 90 ° -arrow- .
2. 5.2. Engage holder on gun grip.

  Fig 5: Engaging Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

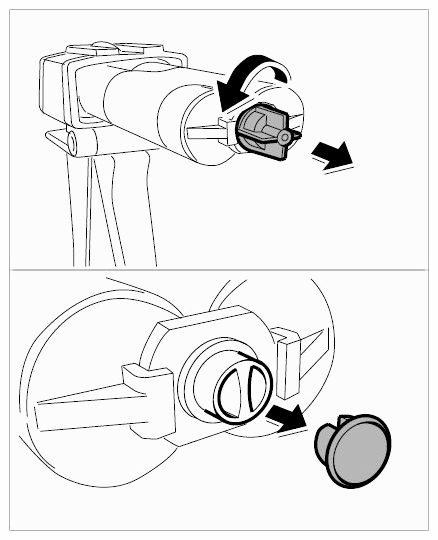

6.
1. 6.1. Turn screw cap 90 ° counter-clockwise and remove.
2. 6.2. Remove closure cap.
3. 6.3. Keep screw cap and closure cap for sealing the container later on.

  Fig 6: Removing Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

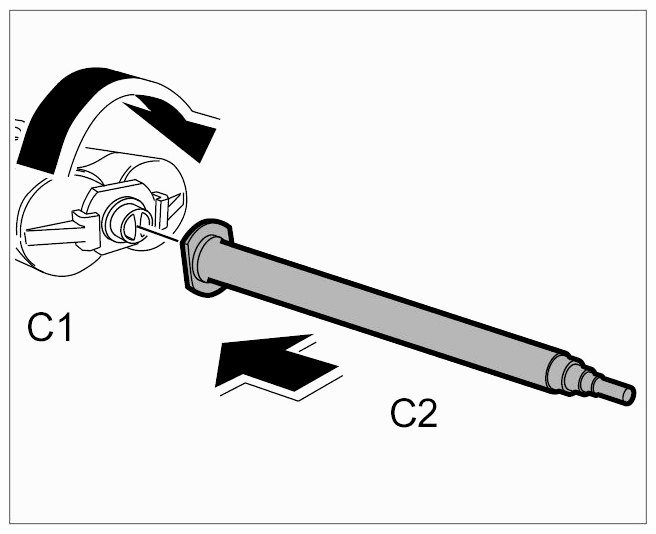

Fit processing nozzle.
1. 7.1. Position processing nozzle -C2- and turn clockwise 90°.

  Fig 7: Fitting Processing Nozzle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mix adhesive components.
1. 8.1. By activating the valve of the gun grip, allow the piston rod to move out slowly until the adhesive is visible in the processing pipe.
Bond the body part.
Information

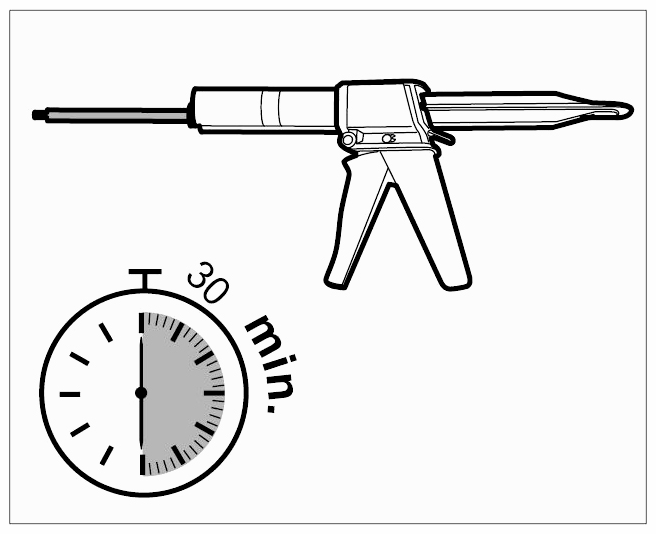

- In order to ensure that the substance is completely mixed, apply a 30 mm long adhesive bead of fresh adhesive to a piece of cardboard before processing.
- The bonding material has an open time of → Working time: 30 min, within which the bonding material must be applied and the body component joined. Any resistance welding to be carried out in the area of the bonding must be done in this time.
- Do not load bonded parts until hardening is complete!
- If the contents of the cartridge are not completely used up, the processing nozzle should be removed and the cartridge sealed with the closure cap. In the event of later processing, a new processing nozzle must be used.
1. 9.1.

  Fig 8: Identifying Structural Adhesive Working Time
