Top Of Front Of Vehicle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

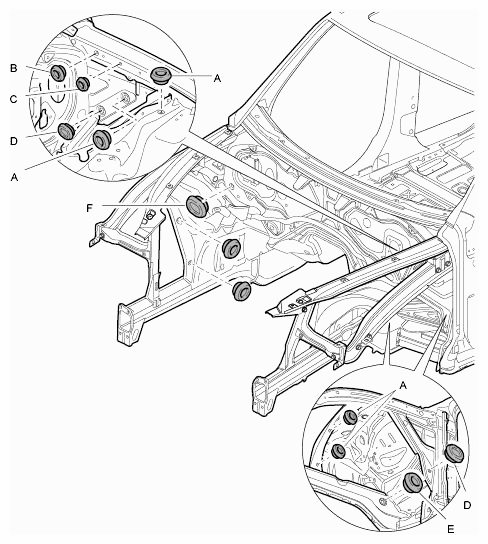

Fig 1: Identifying Top Front Of Vehicle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug hole Ø 20 mm
Plug hole Ø 15 mm
Plug hole Ø 10 mm
Plug hole 15 x 20 mm
Plug hole Ø 30 mm
Plug hole 20 x 25 mm
