Side Of Front Of Vehicle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

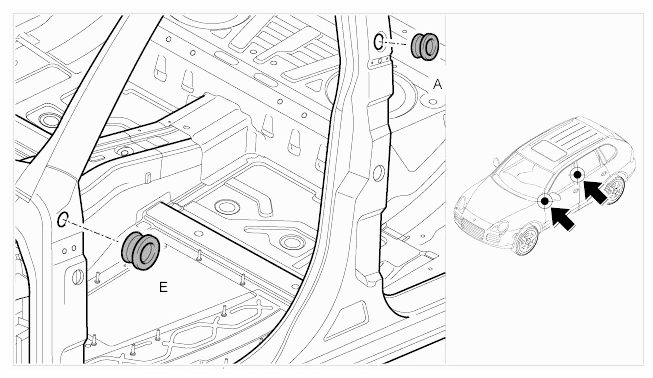

Fig 1: Identifying Side Front Of Vehicle
G09420094Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. A - Plug hole Ø 20 mm
  2. E - Plug hole Ø 30 mm
