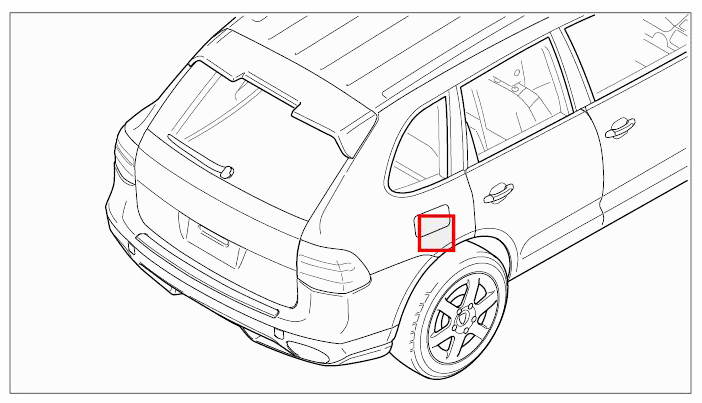

Gap Dimensions Of Tank Cap
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

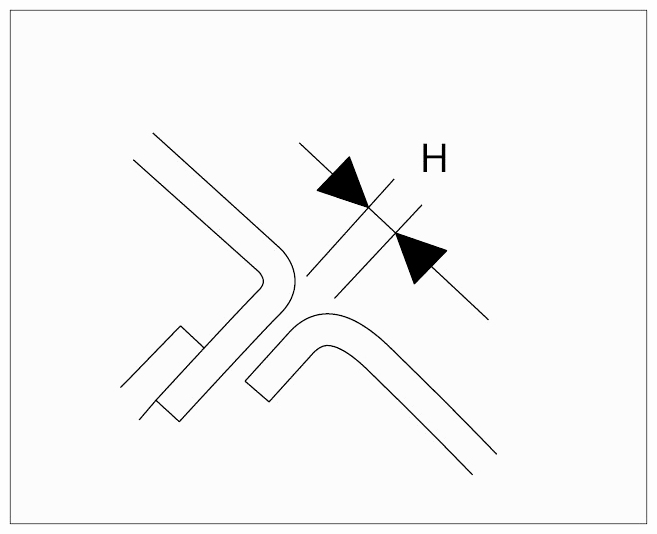

| Tank cap to outer side section (H) |
All the way round |
Gap dimension |
2 mm |
+/-0.3 mm |
|
