Gap Dimensions Of Rear Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

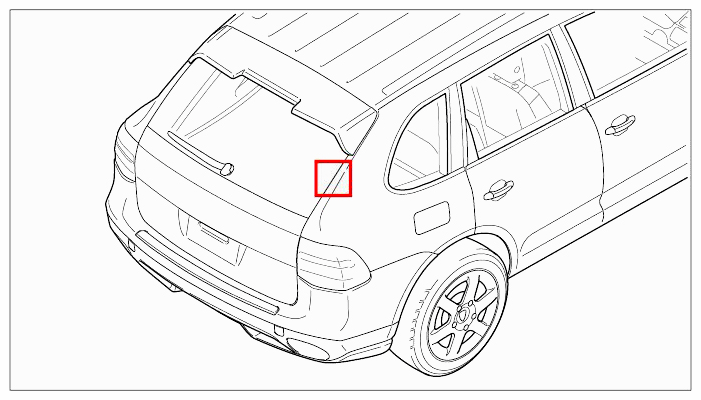

Fig 1: Identifying Gap Dimensions Of Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

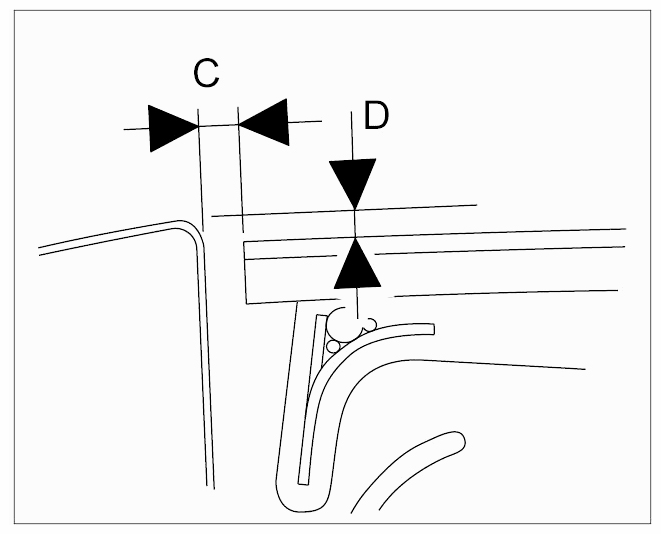

Fig 2: Identifying Rear Window To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear window to outer side section (C)		Gap dimension	4.5 mm	+/-0.5 mm
Rear window to outer side section (D)		Gap dimension	3.3 mm	+/-0.5 mm

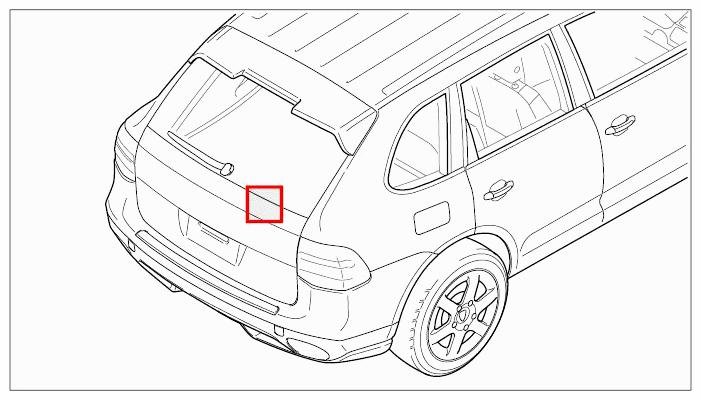

Fig 3: Identifying Gap Dimensions Of Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

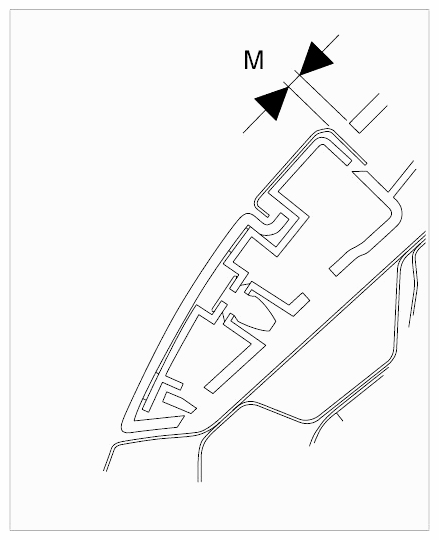

Fig 4: Identifying Molding To Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Molding to rear window (M)		Gap dimension	4.7 mm	+/-0.8 mm
