Gap Dimensions Of Rear Spoiler

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

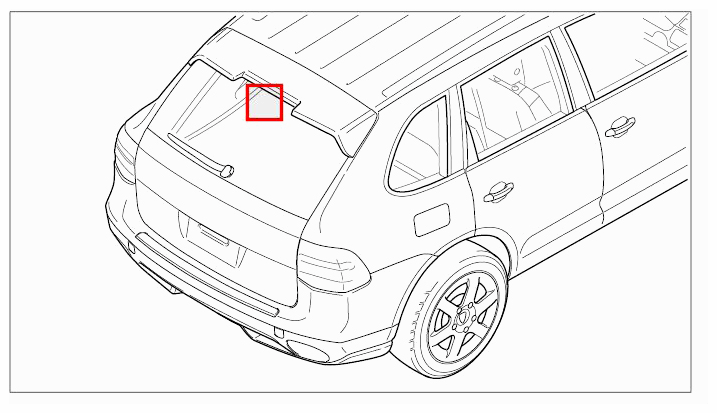

Fig 1: Identifying Gap Dimensions Of Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

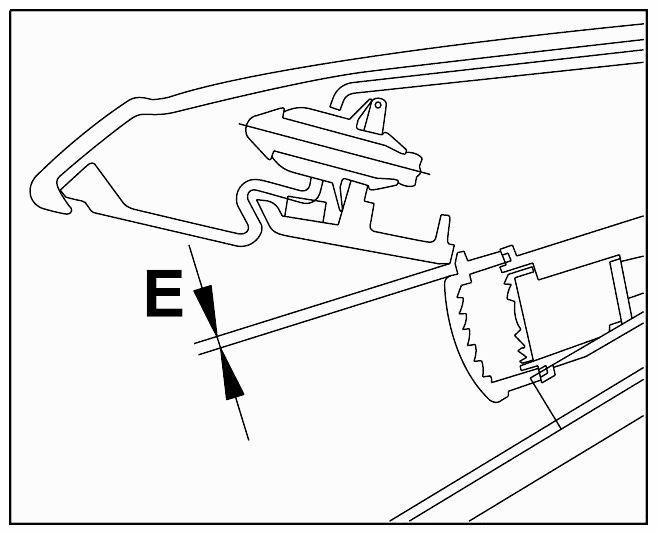

Fig 2: Identifying Brake Light To Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Brake light to rear spoiler (E)		Gap dimension	2 mm

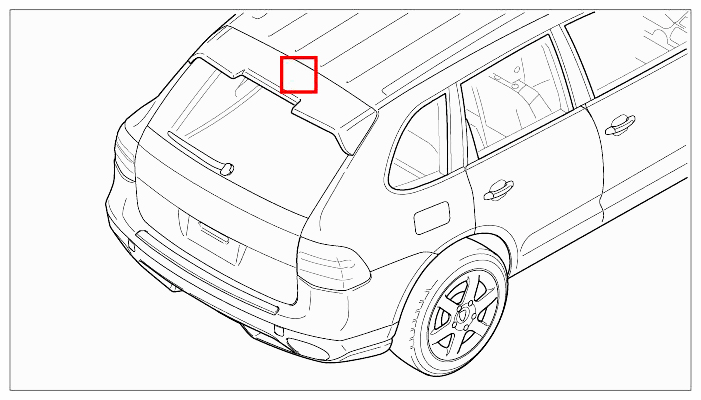

Fig 3: Identifying Gap Dimensions Of Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

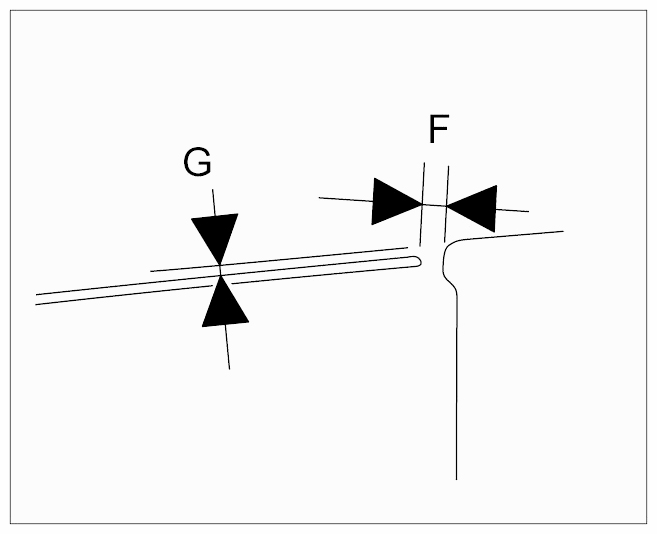

Fig 4: Identifying Rear Spoiler To Outer Roof Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear spoiler to outer roof panel (F)		Gap dimension	6 mm	+/-0.5 mm
Rear spoiler to outer roof panel (G)	Only lowered	Gap dimension	1 mm

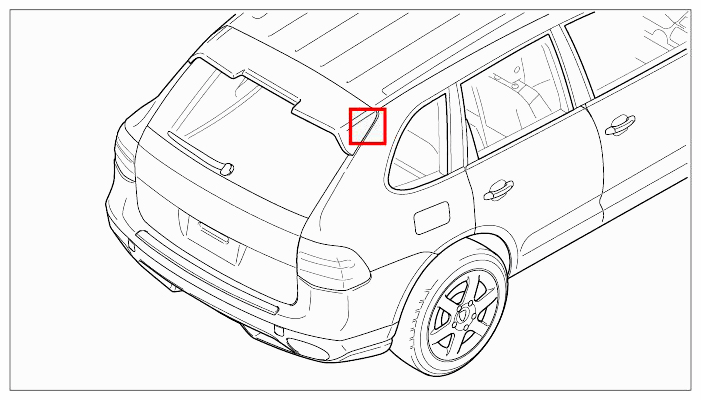

Fig 5: Identifying Gap Dimensions Of Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

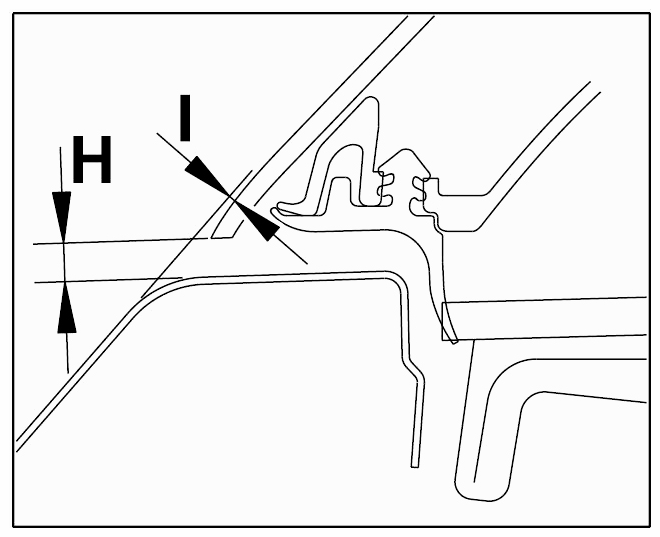

Fig 6: Identifying Rear Spoiler To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear spoiler to outer side section (H)		Gap dimension	5 mm	+/-1 mm
Rear spoiler to outer side section (I)		Gap dimension	1 mm
