Gap Dimensions Of Rear Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

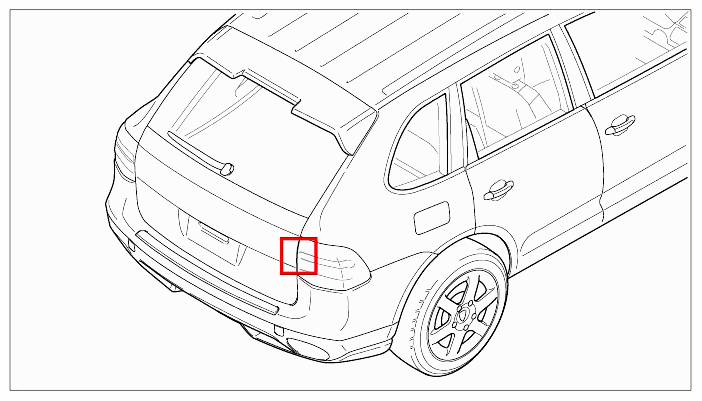

Fig 1: Identifying Gap Dimensions Of Rear Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

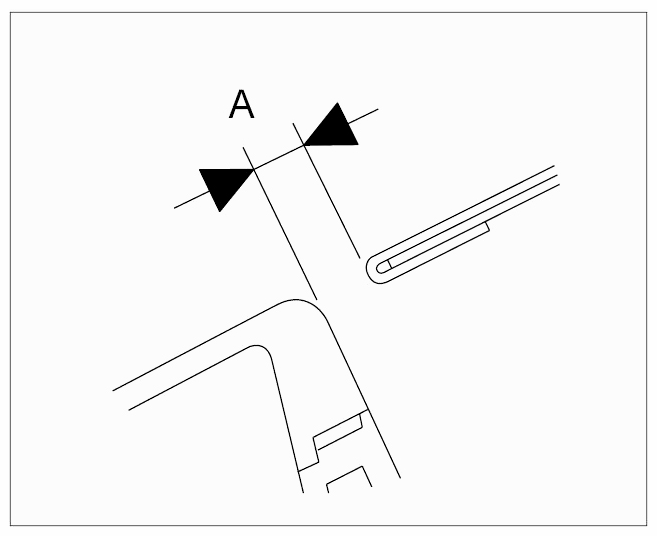

Fig 2: Identifying Rear Lid To Rear Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to rear light (A)		Gap dimension	4.5 mm	+/-0.8 mm

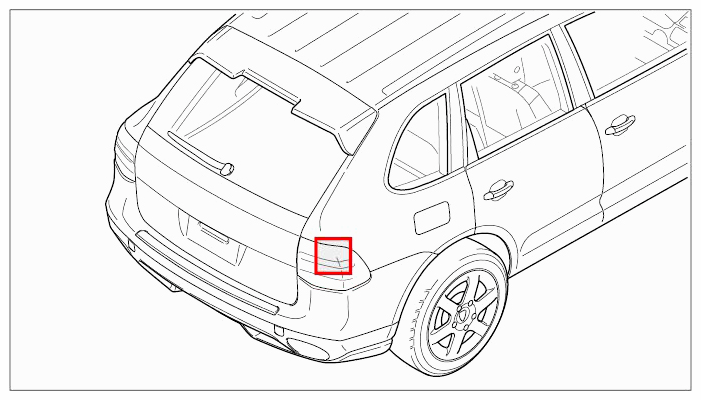

Fig 3: Identifying Gap Dimensions Of Rear Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

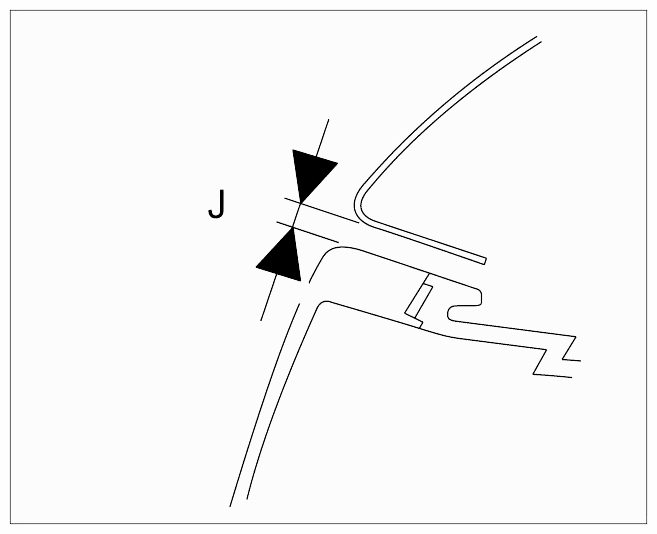

Fig 4: Identifying Rear Light To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear light to outer side section (J)		Gap dimension	3 mm	+/-0.5 mm

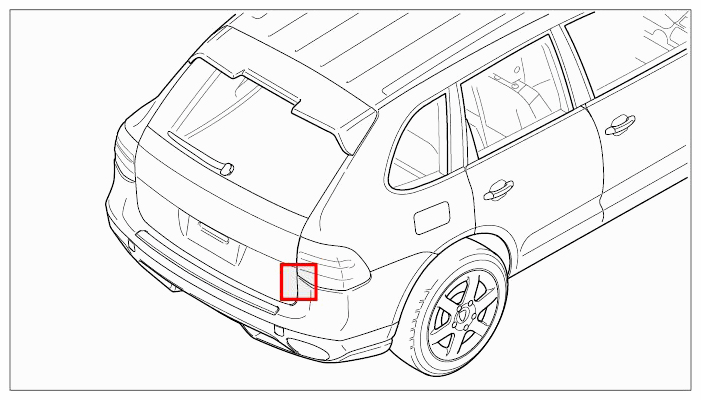

Fig 5: Identifying Gap Dimensions Of Rear Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

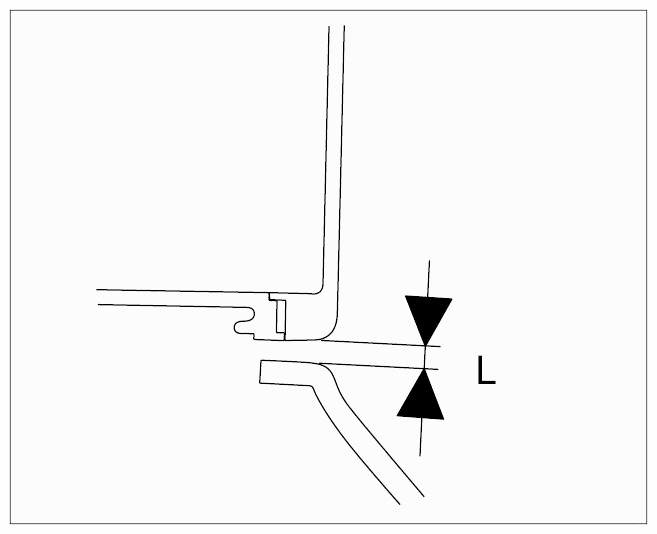

Fig 6: Identifying Rear Light To Rear Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear light to rear apron (L)		Gap dimension	3 mm	+/-1 mm
