Gap Dimensions Of Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

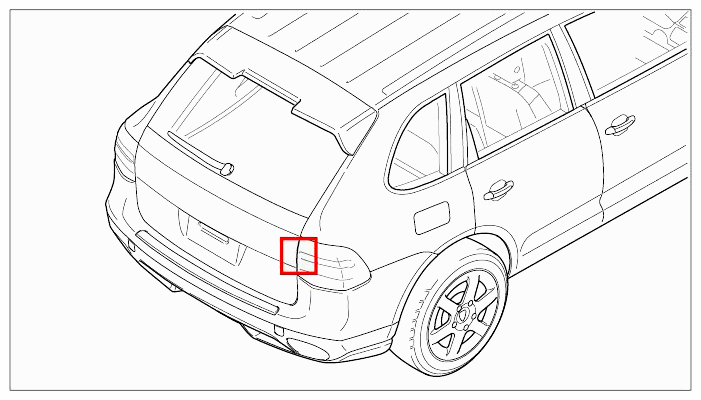

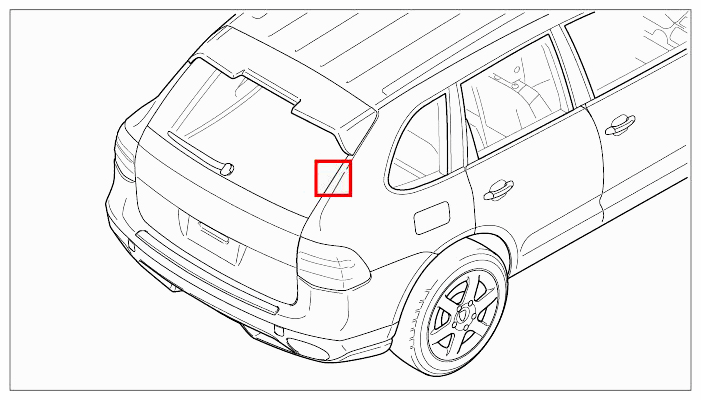

Fig 1: Identifying Gap Dimensions Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

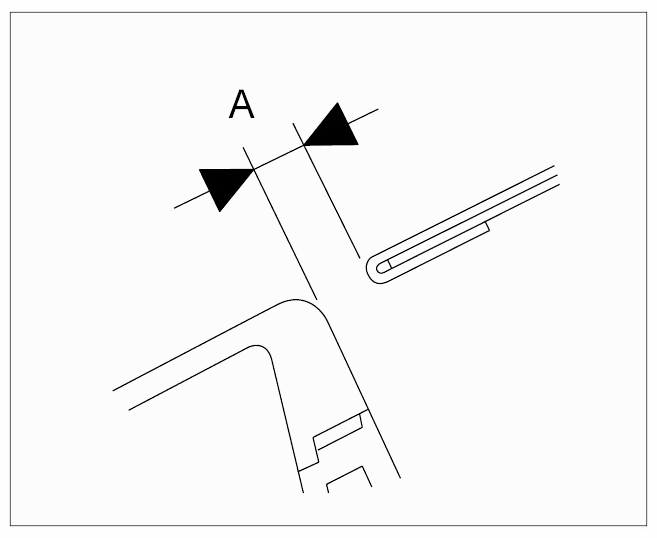

Fig 2: Identifying Rear Lid To Rear Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to rear light (A)		Gap dimension	4.5 mm	+/-0.8 mm

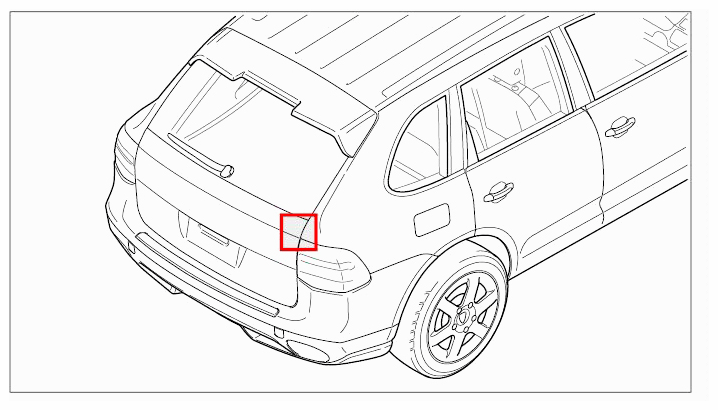

Fig 3: Identifying Gap Dimensions Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

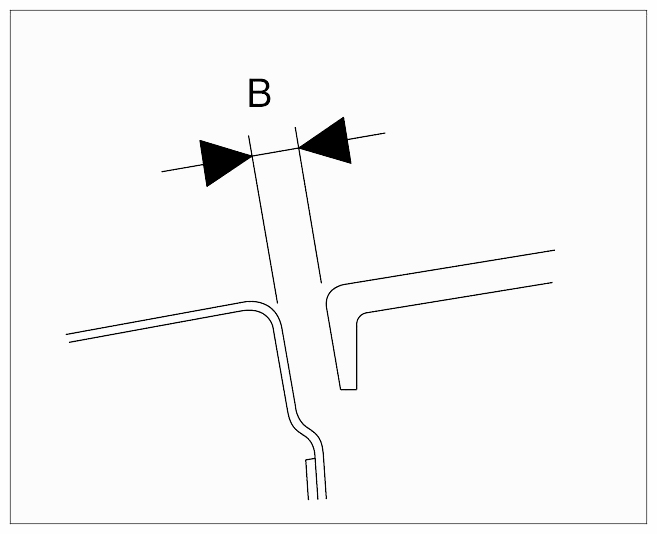

Fig 4: Identifying Rear Lid Trim Panel To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid trim panel to outer side section (B)		Gap dimension	4.5 mm	+/-1 mm

Fig 5: Identifying Gap Dimensions Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

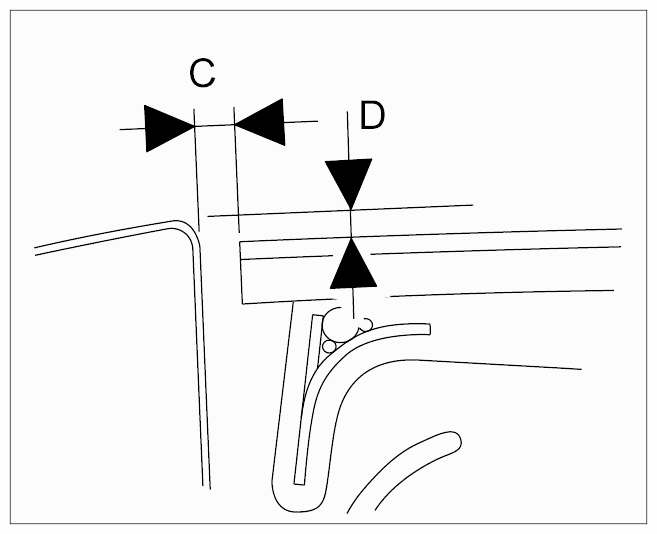

Fig 6: Identifying Rear Window To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear window to outer side section (C)		Gap dimension	4.5 mm	+/-0.5 mm
Rear window to outer side section (D)		Gap dimension	3.3 mm	+/-0.5 mm

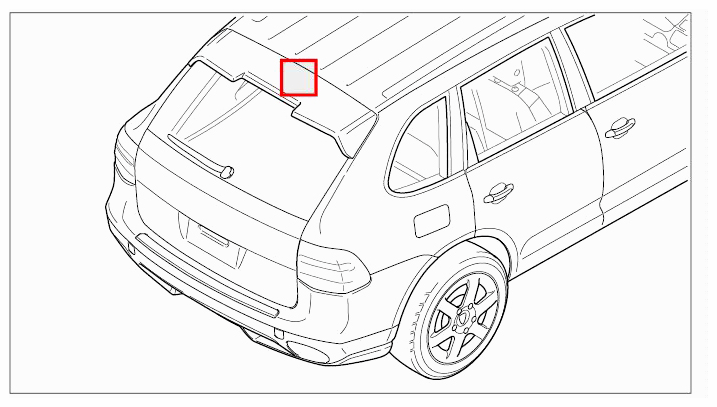

Fig 7: Identifying Gap Dimensions Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

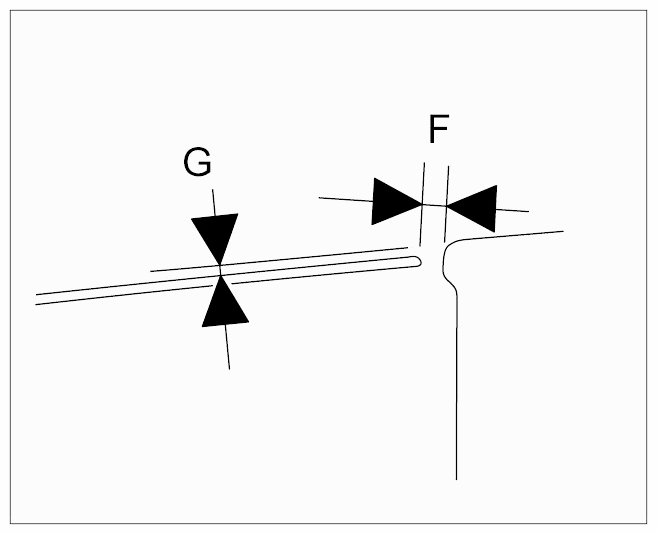

Fig 8: Identifying Rear Spoiler To Outer Roof Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear spoiler to outer roof panel (F)		Gap dimension	6 mm	+/-1 mm
Rear spoiler to outer roof panel (G)	Only lowered	Gap dimension	1 mm

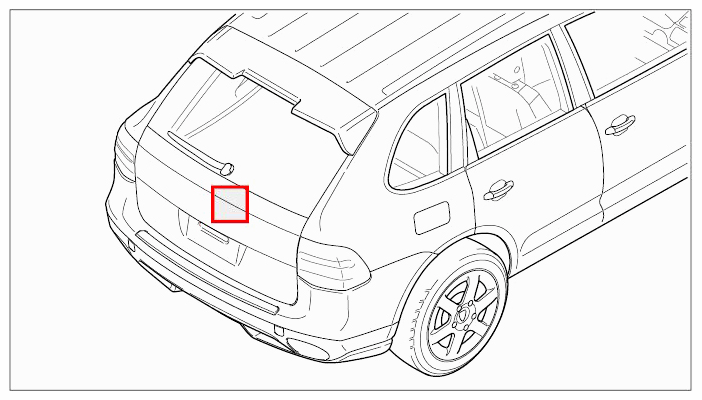

Fig 9: Identifying Gap Dimensions Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

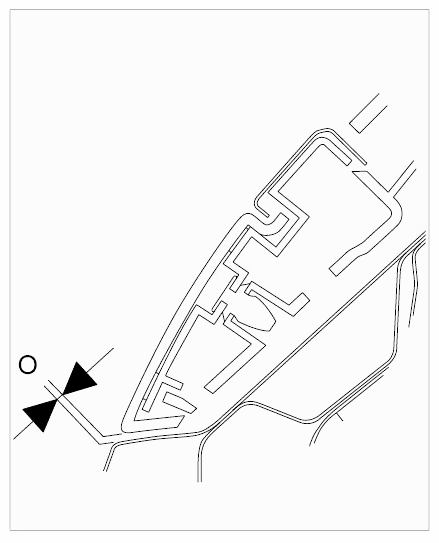

Fig 10: Identifying Trim Panel To Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Trim panel to rear lid (O)		Gap dimension	2 mm	+/-0.7 mm

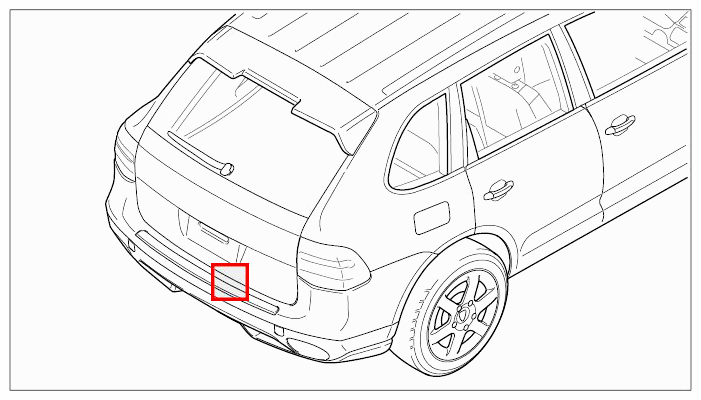

Fig 11: Identifying Gap Dimensions Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

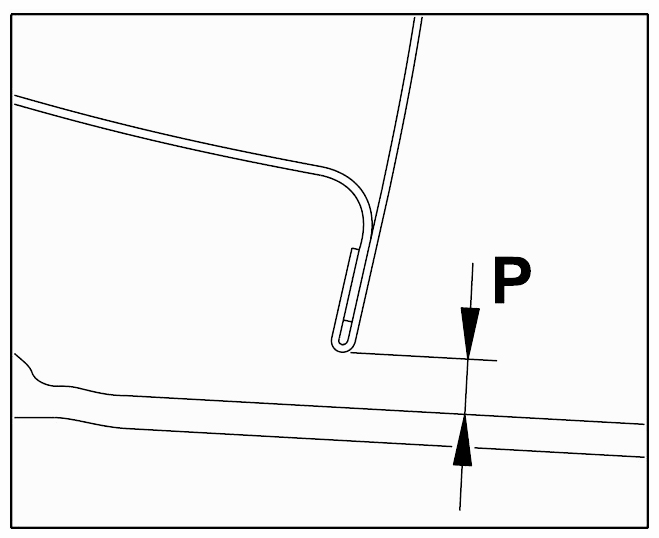

Fig 12: Identifying Bottom Of Rear Lid To Rear Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Bottom of rear lid to rear apron (P)		Gap dimension	5.5 mm	+/-1 mm

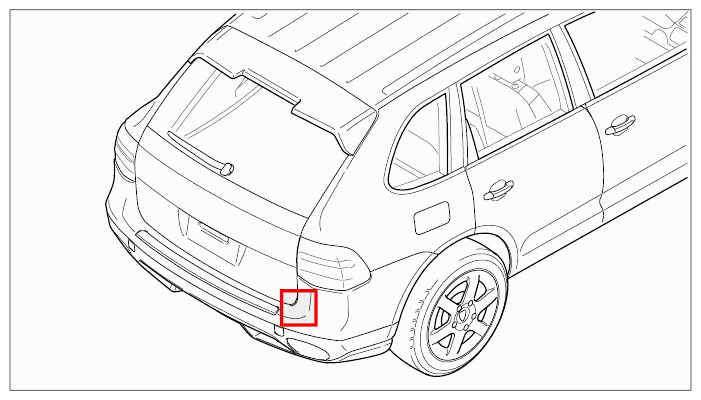

Fig 13: Identifying Gap Dimensions Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

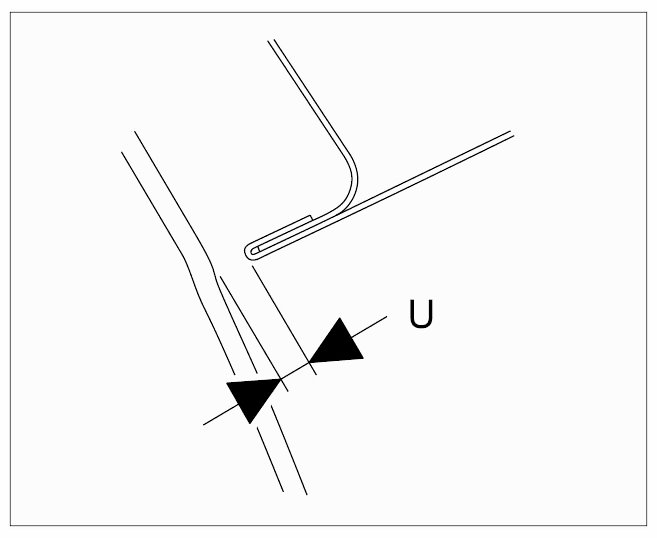

Fig 14: Identifying Side Of Rear Lid To Rear Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Side of rear lid to rear apron (U)		Gap dimension	4.5 mm	+/-0.5 mm
