Gap Dimensions Of Rear Lid Trim Panel

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

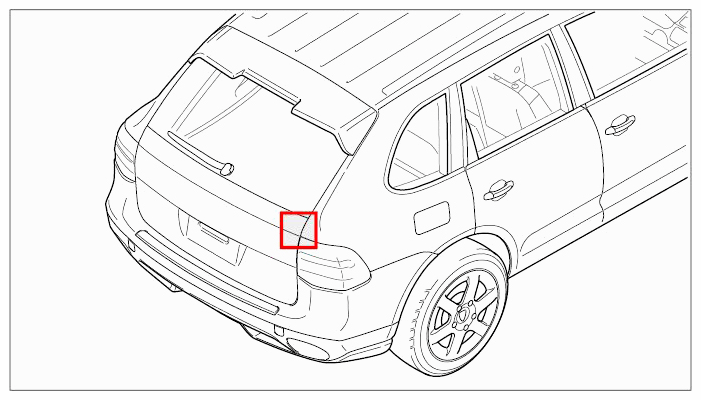

Fig 1: Identifying Gap Dimensions Of Rear Lid Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

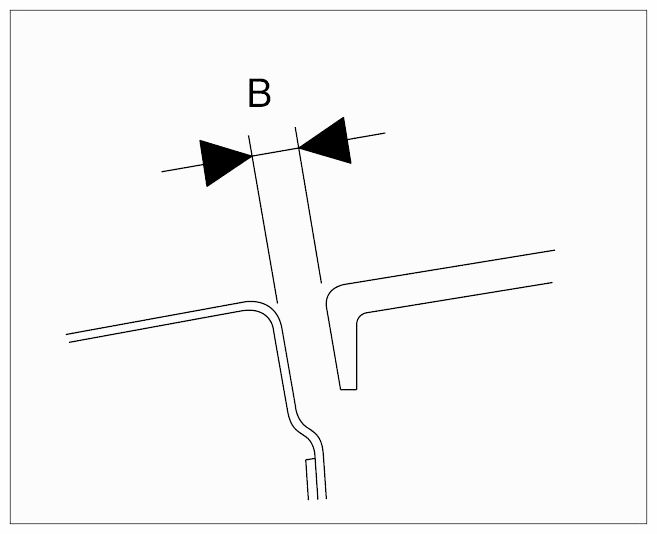

Fig 2: Identifying Rear Lid Trim Panel To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid trim panel to outer side section (B)		Gap dimension	4.5 mm	+/-1 mm

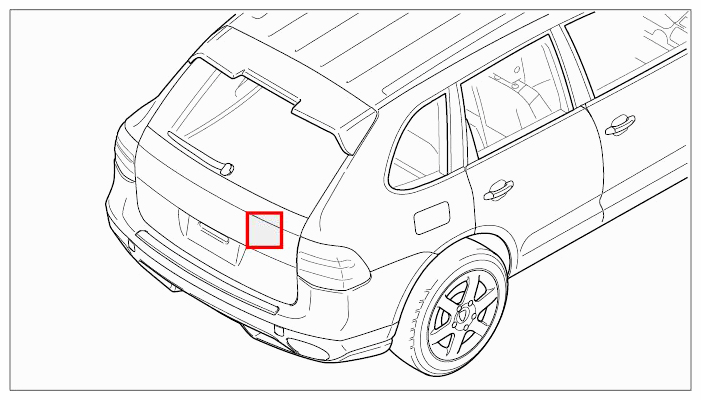

Fig 3: Identifying Gap Dimensions Of Rear Lid Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

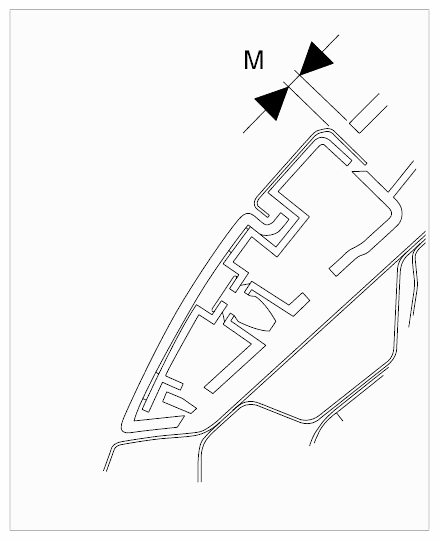

Fig 4: Identifying Molding To Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Molding to rear window (M)		Gap dimension	4.7 mm	+/-0.8 mm

Fig 5: Identifying Gap Dimensions Of Rear Lid Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

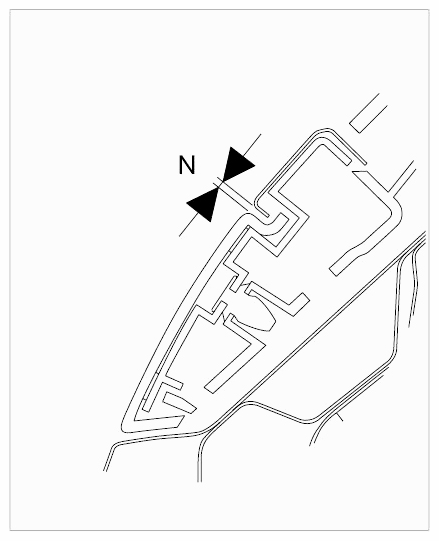

Fig 6: Identifying Molding To Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Molding to rear lid trim panel (N)		Gap dimension	2 mm

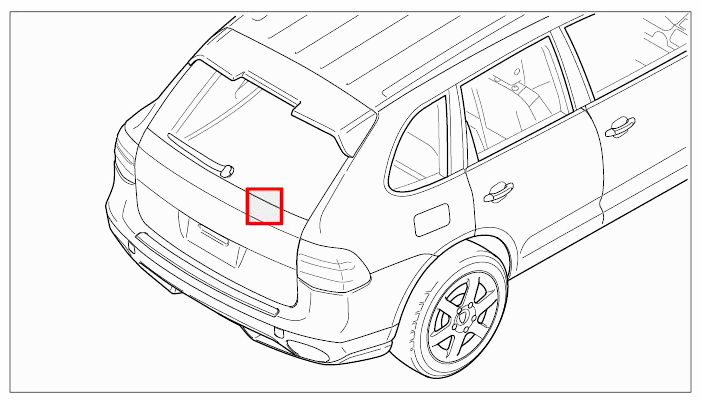

Fig 7: Identifying Gap Dimensions Of Rear Lid Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

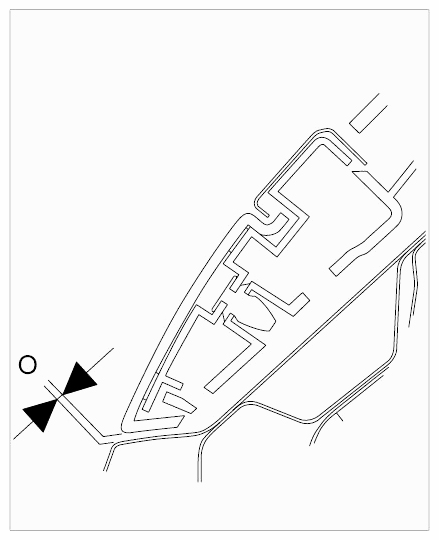

Fig 8: Identifying Trim Panel To Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Trim panel to lid (O)		Gap dimension	2 mm	+/-0.7 mm
