Gap Dimensions Of Rear Apron
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

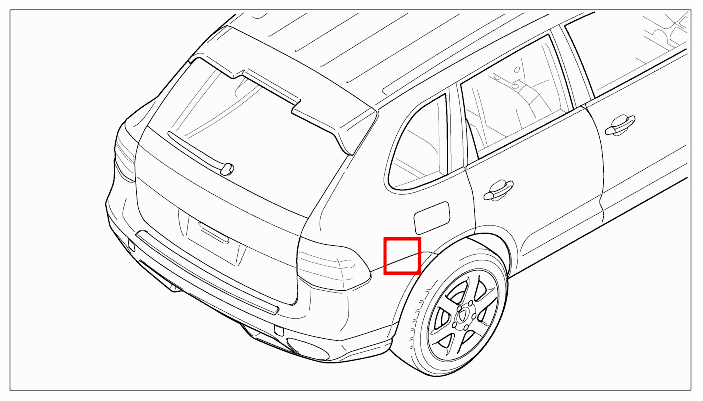

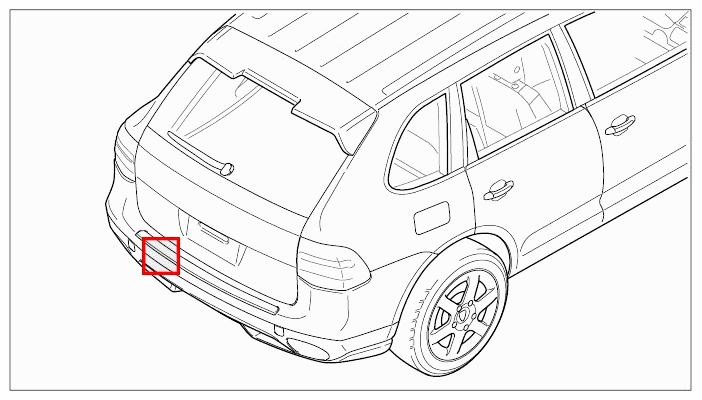

| Rear apron to outer side section (K) |
Gap is evident |
Gap dimension |
0.5 mm |
+/-0.5 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

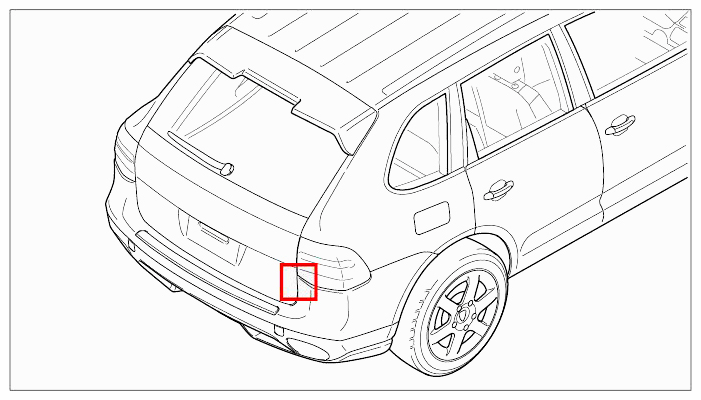

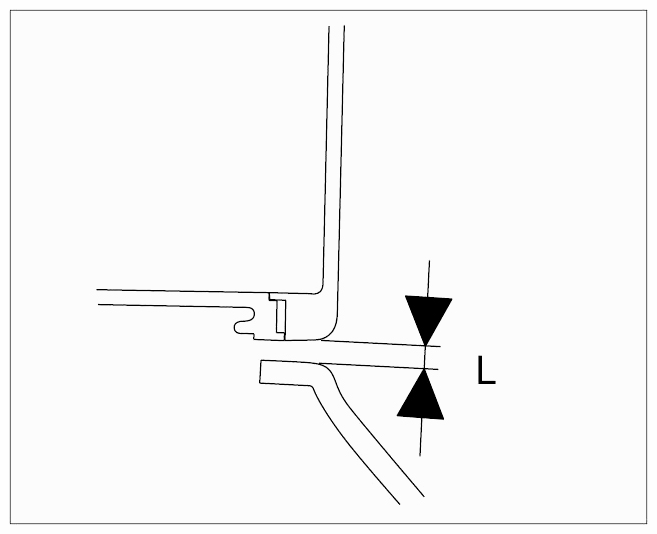

| Rear light to rear apron (L) |
|
Gap dimension |
3 mm |
+/-1 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

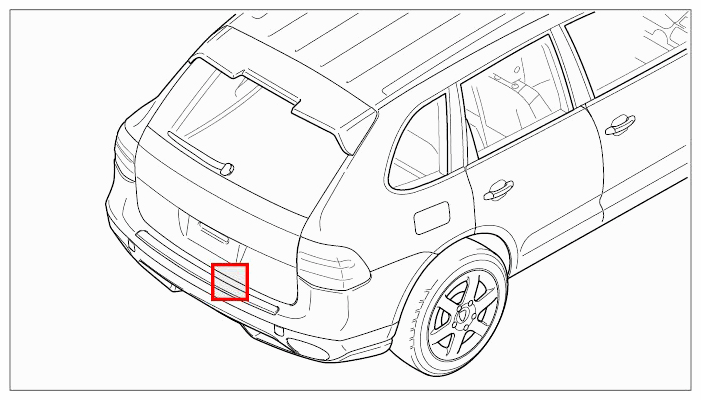

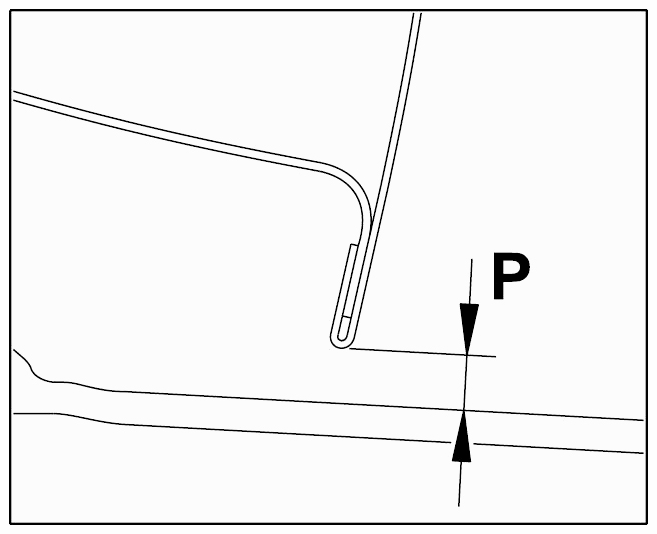

| Bottom of rear lid to rear apron (P) |
|
Gap dimension |
5.5 mm |
+/-1 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

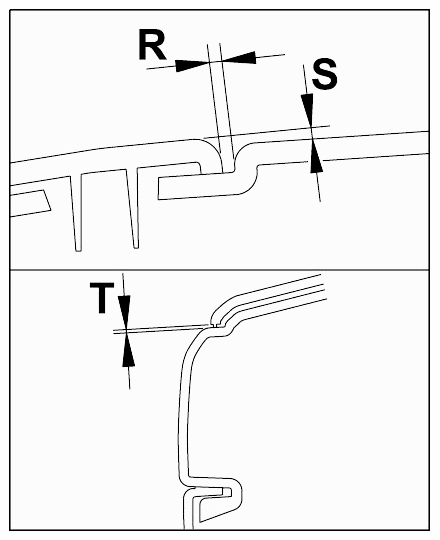

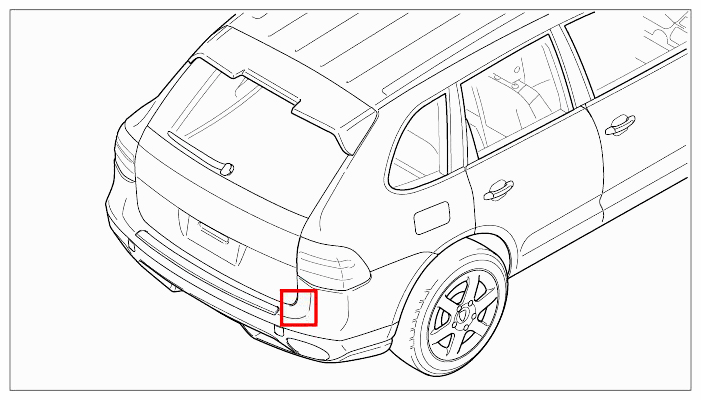

| Rear apron cover to rear apron (R) |
|
Gap dimension |
1.5 mm |
+/-0.7 mm |
|
| Rear apron cover to rear apron (S) |
|
Gap dimension |
1.5 mm |
+0.5 mm |
-1 mm |
| Rear apron cover to rear apron (T) |
|
Gap dimension |
0.5 mm |
+/-0.3 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

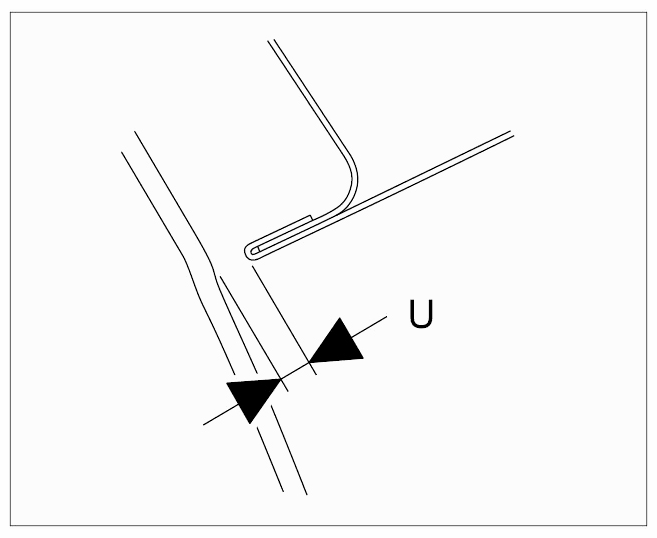

| Side of rear lid to rear apron (U) |
|
Gap dimension |
4.5 mm |
+/-0.5 mm |
|
