Gap Dimensions Of Outer Side Section

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

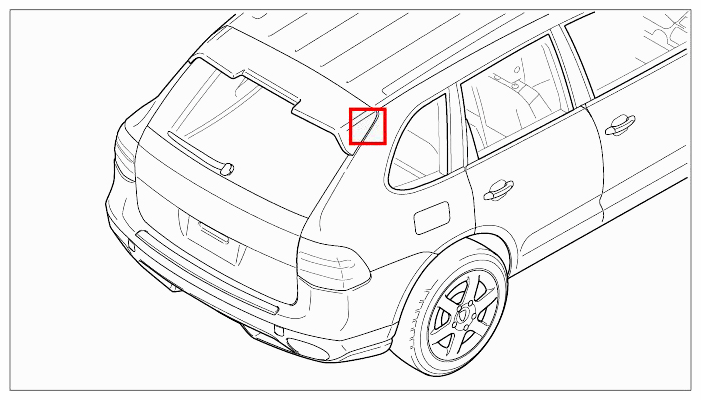

Fig 1: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

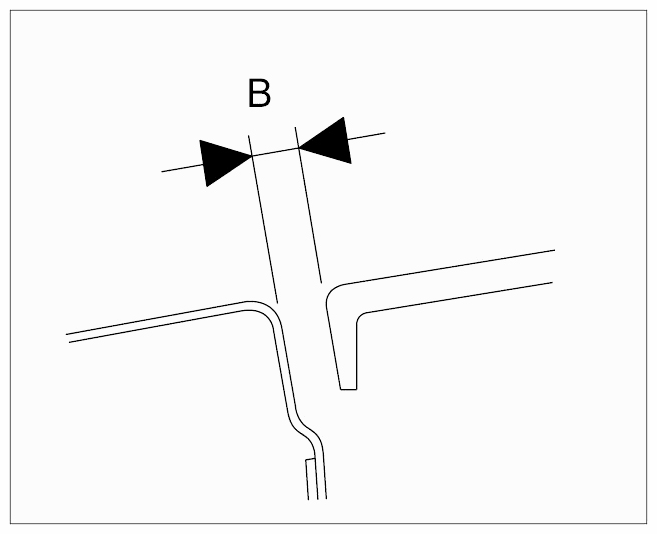

Fig 2: Identifying Rear Lid Trim To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid trim to outer side section (B)		Gap dimension	4.5 mm	+/-1 mm

Fig 3: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

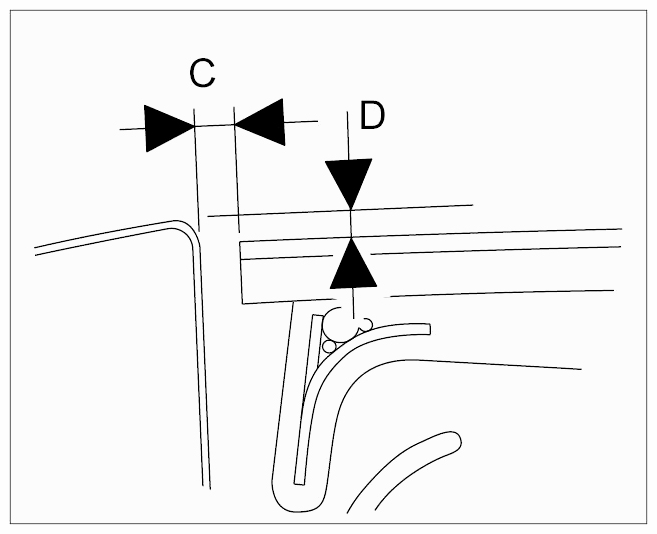

Fig 4: Identifying Rear Window To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear window to outer side section (C)		Gap dimension	4.5 mm	+/-0.5 mm
Rear window to outer side section (D)		Gap dimension	3.3 mm	+/-0.5 mm

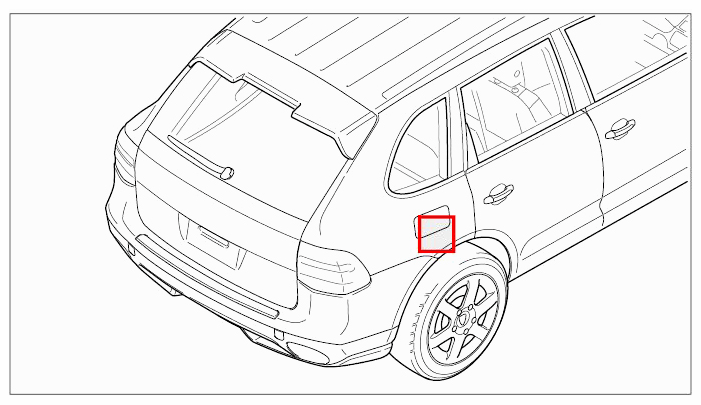

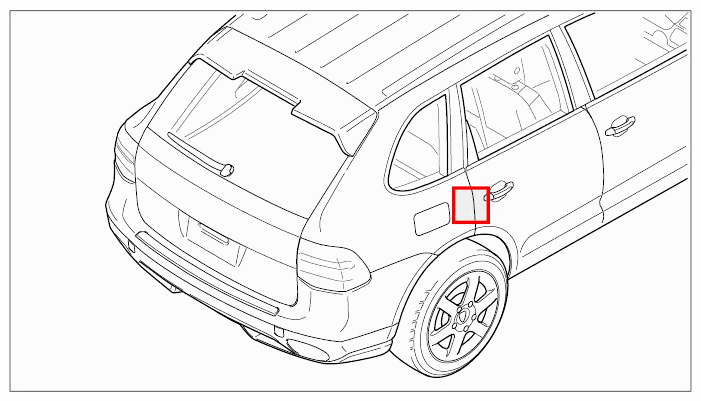

Fig 5: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

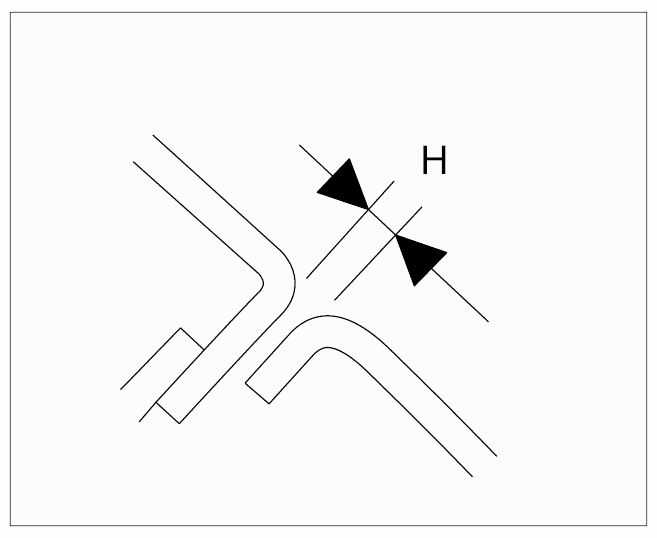

Fig 6: Identifying Tank Cap To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Tank cap to outer side section (H)	All the way round	Gap dimension	2 mm	+/-0.3 mm

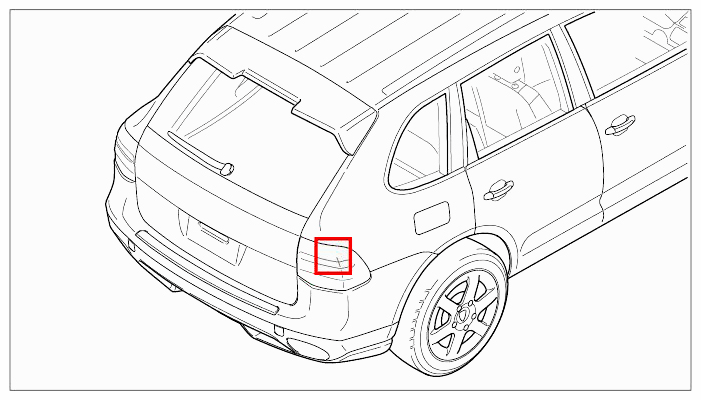

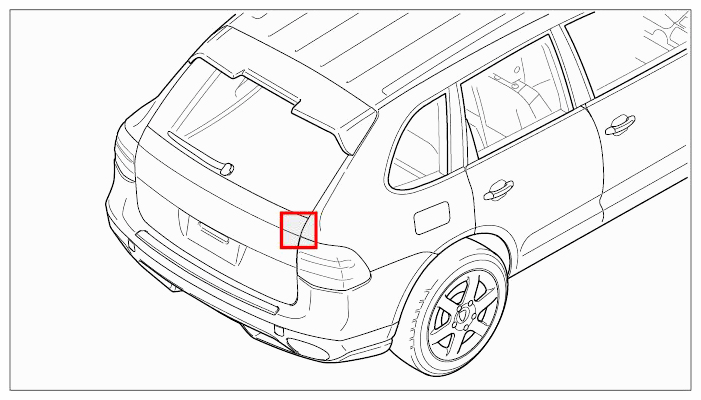

Fig 7: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

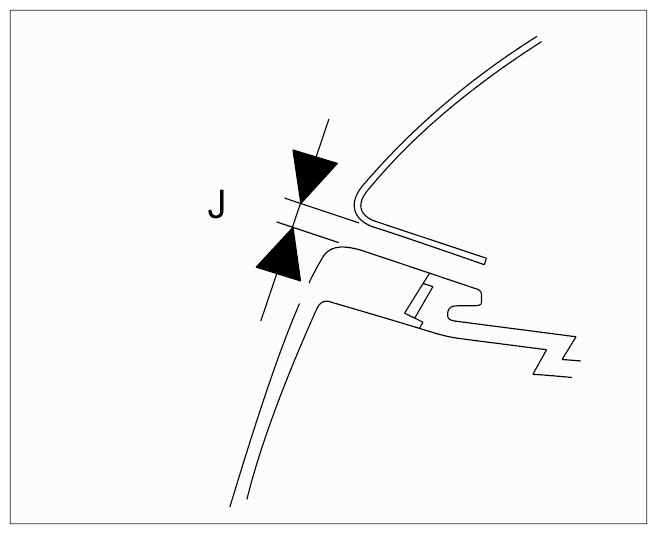

Fig 8: Identifying Rear Light To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear light to outer side section (J)		Gap dimension	3 mm	+/-0.5 mm

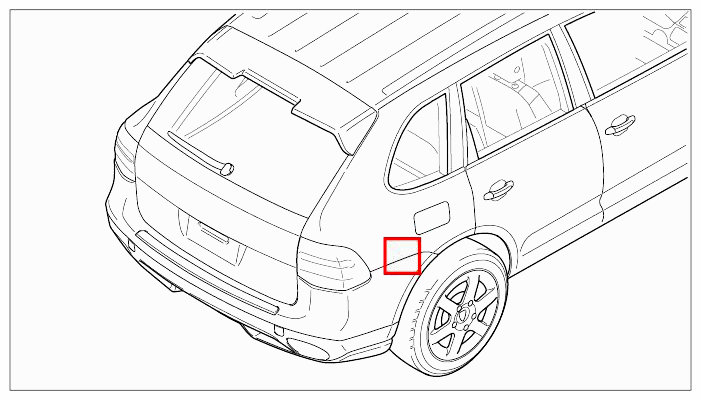

Fig 9: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 10: Identifying Rear Apron To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear apron to outer side section (K)	Gap is evident	Gap dimension	0.5 mm	+/-0.5 mm

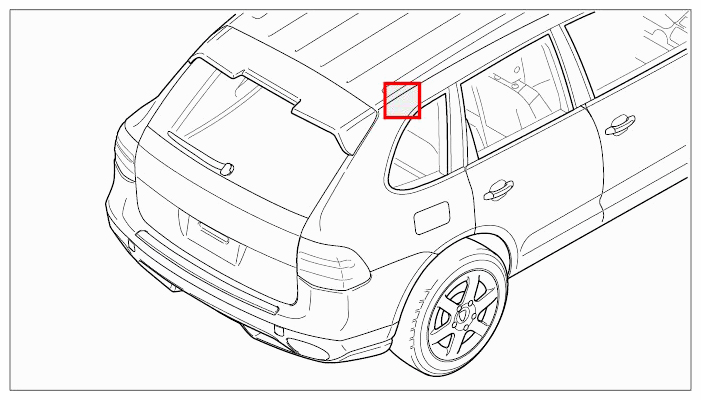

Fig 11: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

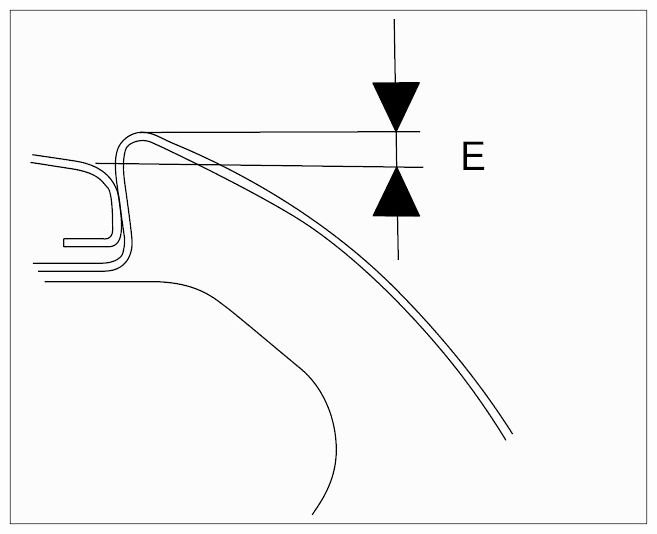

Fig 12: Identifying Outer Roof Panel To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Outer roof panel to outer side section (E)	The projection of the side section at the outer roof panel is approx. 2.5 mm at the A-pillar, increases continuously to 3.5 mm to the C-pillar and then returns to 2.5 mm at the D-pillar.	Gap dimension	approx. 2.5 to 3.5 mm

Fig 13: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

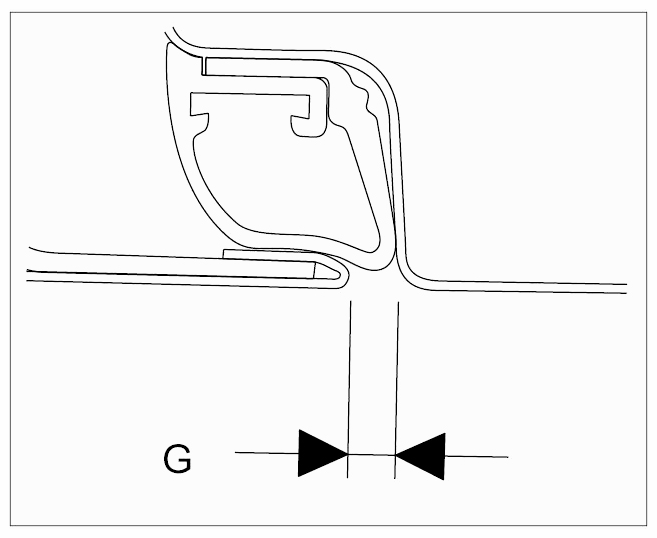

Fig 14: Identifying Door To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door to outer side section (G)	Door only raised (max. 1 mm)	Gap dimension	4 mm	+0.7 mm	-0.5 mm

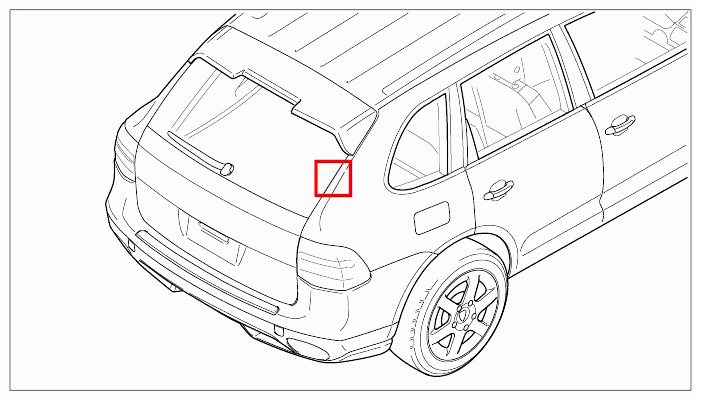

Fig 15: Identifying Gap Dimensions Of Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

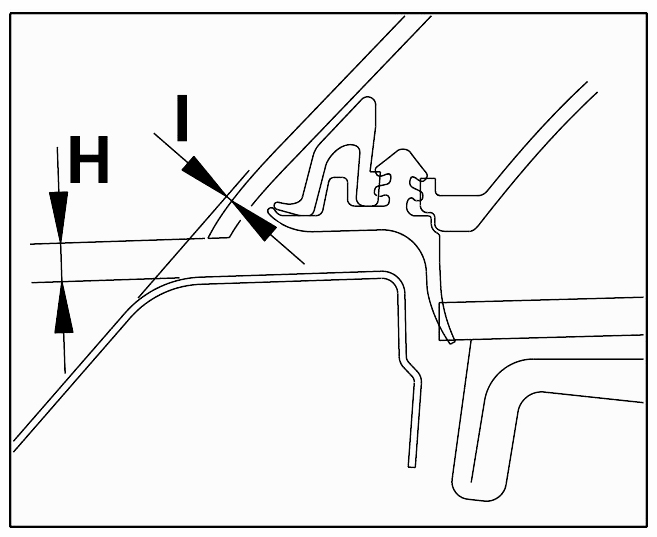

Fig 16: Identifying Rear Spoiler To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear spoiler to outer side section (H)		Gap dimension	5 mm	+/-1 mm
Rear spoiler to outer side section (I)		Gap dimension	1 mm
