Gap Dimensions Of Main Headlight
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

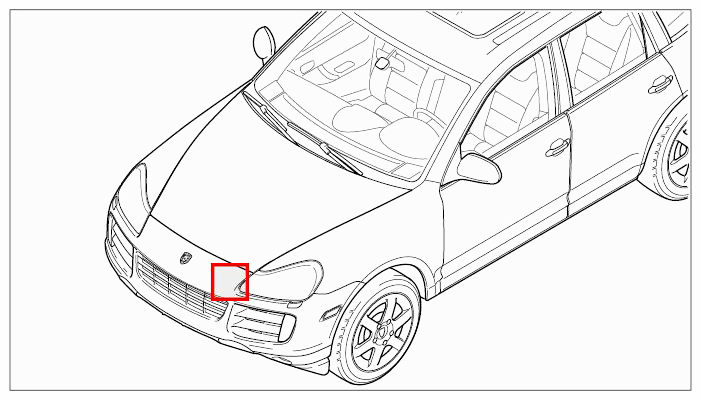

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

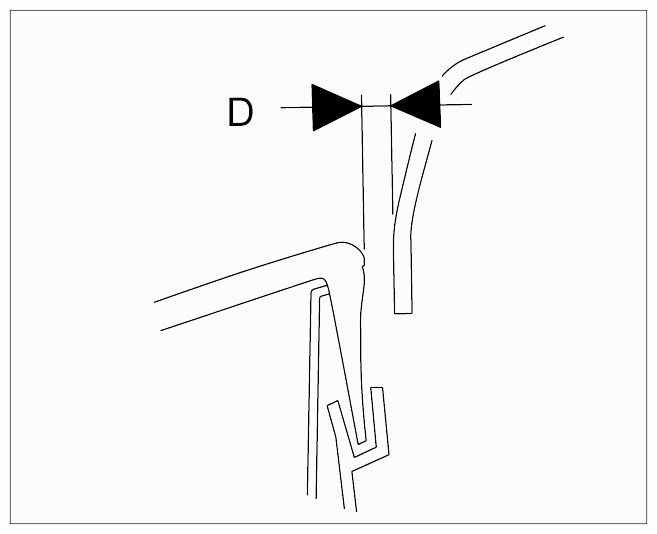

| Main headlight to side of front apron (D) |
|
Gap dimension |
4 mm |
+/-1.2 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

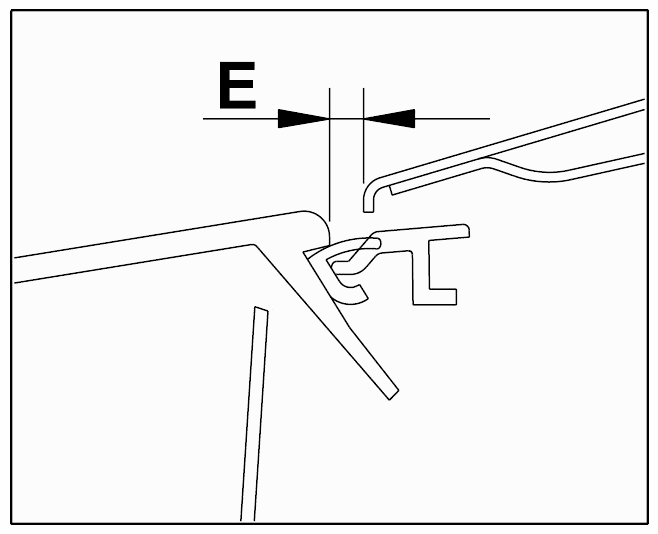

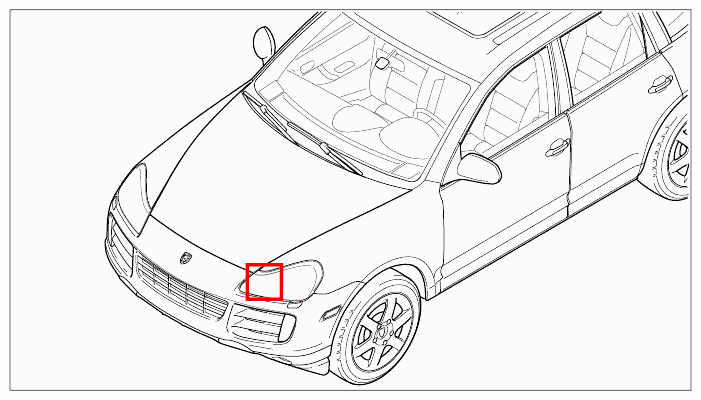

| Main headlight to front lid (E) |
|
Gap dimension |
4 mm |
+/-0.5 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

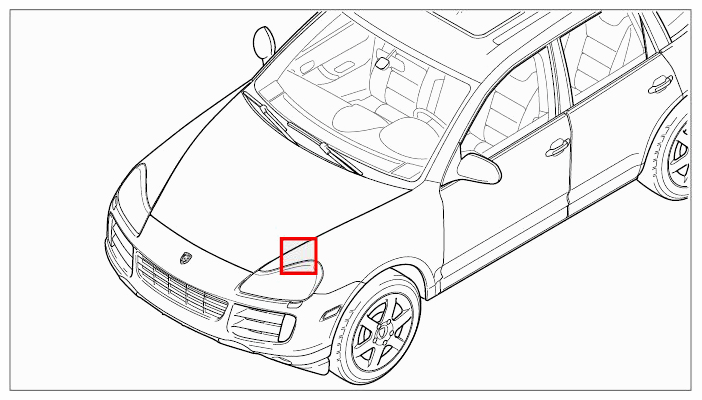

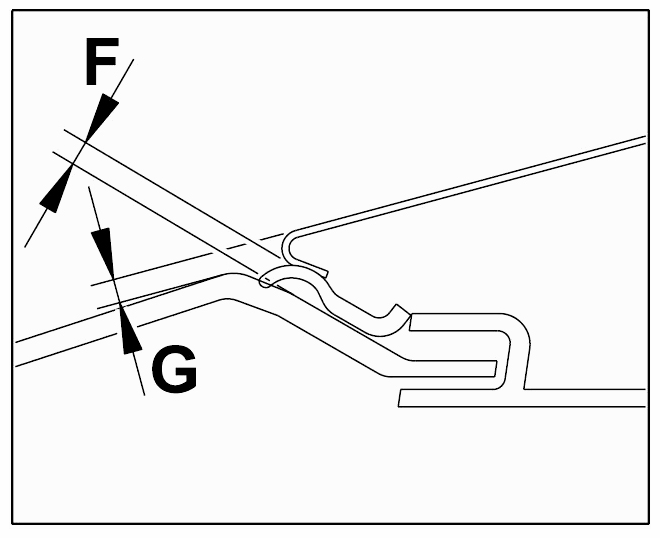

| Main headlight to front wing (F) |
|
Gap dimension |
3 mm |
+/-0.5 mm |
|
| Main headlight to front wing (G) |
|
Gap dimension |
3 mm |
-1 mm |
|

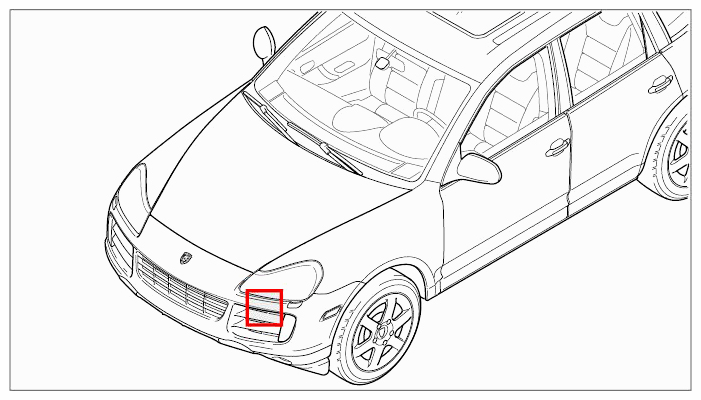

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

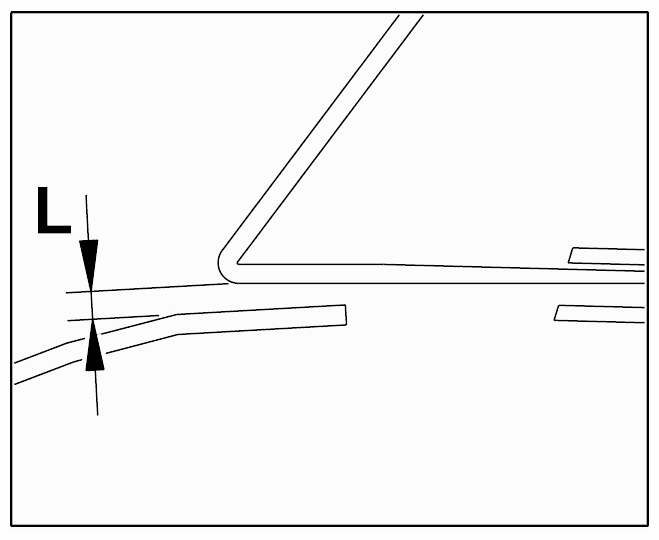

| Main headlight to bottom of front apron (L) |
|
Gap dimension |
4 mm |
+/-1 mm |
|
