Gap Dimensions Of Front Lid
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

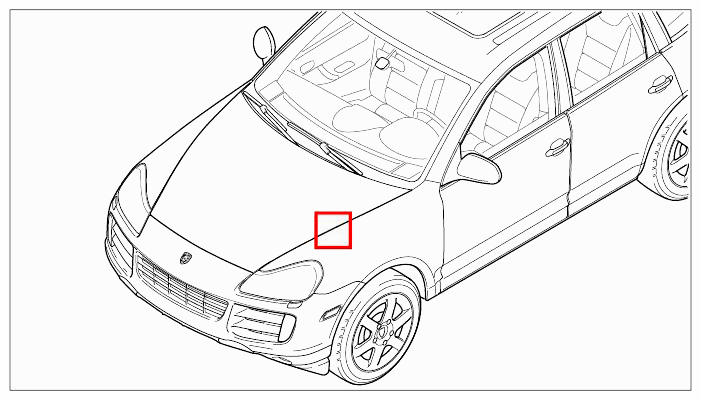

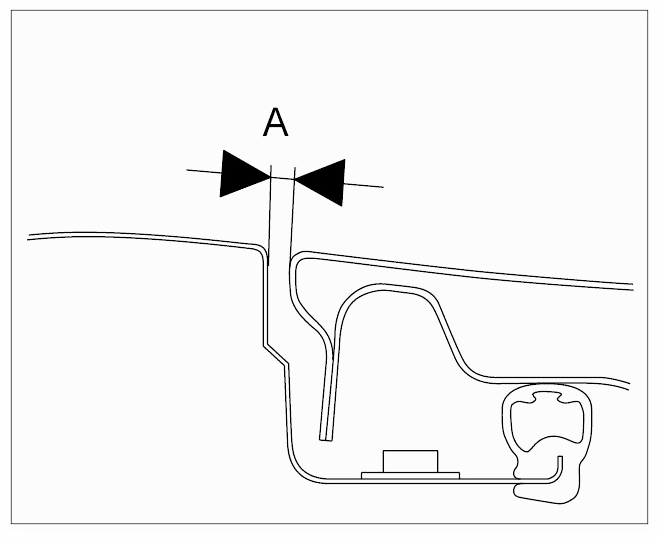

| Front wing to front lid (A) |
|
Gap dimension |
4 mm |
+/-1 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

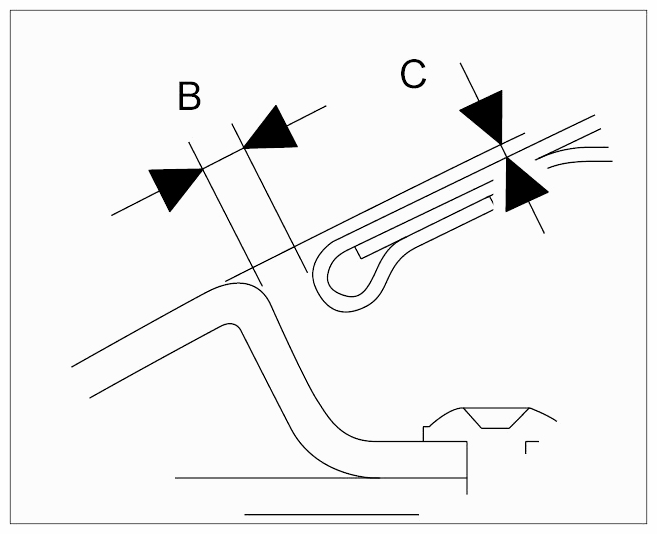

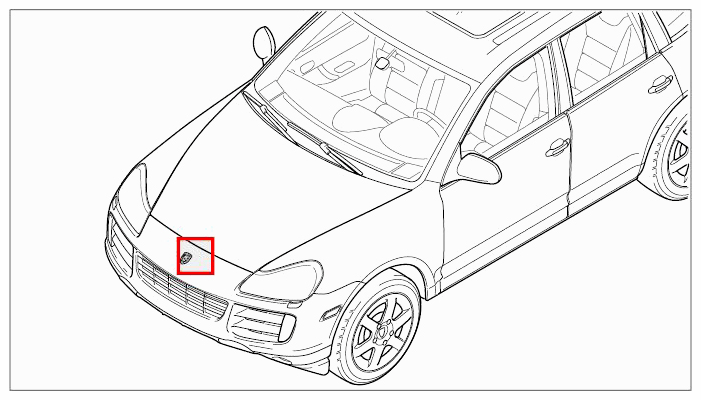

| Front lid to front apron (B) |
|
Gap dimension |
4 mm |
+1 mm |
|
| Front lid to front apron (C) |
Lid only lowered (max. 1 mm) |
Gap dimension |
1 mm |
|
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

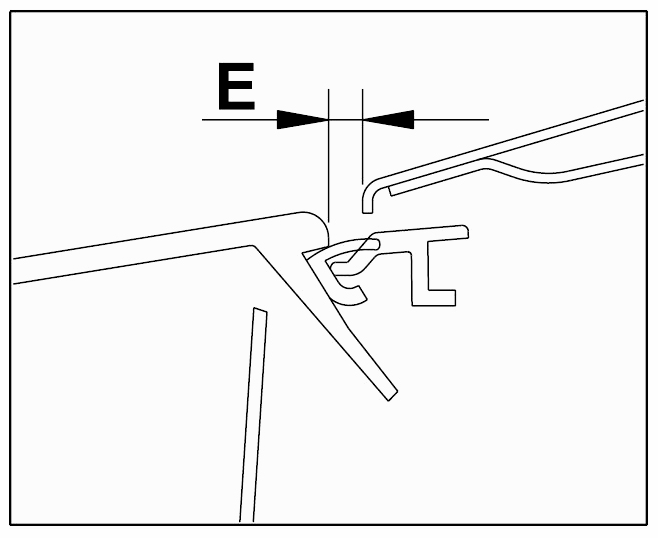

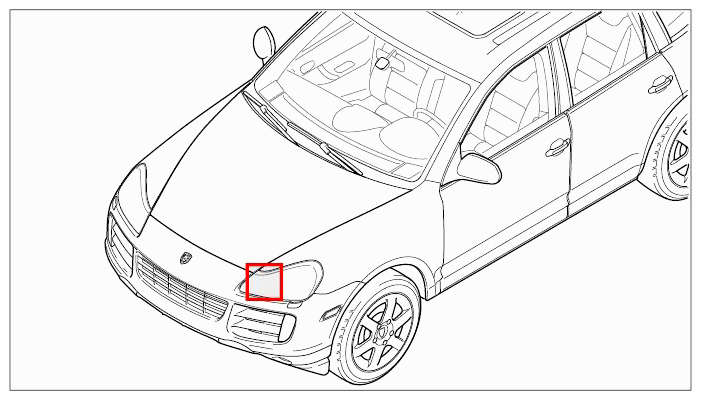

| Main headlight to front lid (E) |
|
Gap dimension |
4 mm |
+/-0.5 mm |
|
