Gap Dimensions Of Front Apron

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

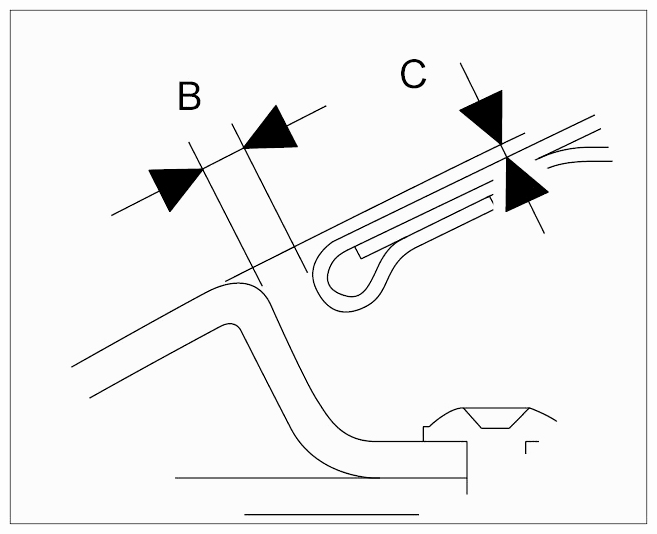

Fig 2: Identifying Front Lid To Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Front lid to front apron (B)		Gap dimension	4 mm	+1 mm
Front lid to front apron (C)	Lid only lowered (max. 1 mm)	Gap dimension	1 mm

Fig 3: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

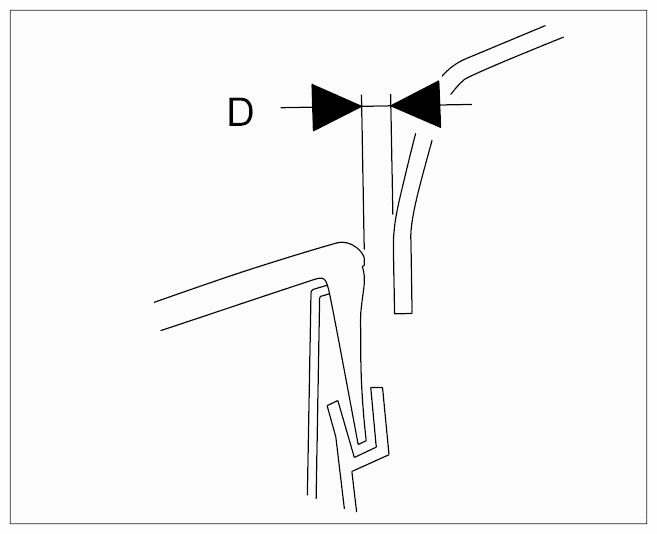

Fig 4: Identifying Main Headlight To Side Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Main headlight to side of front apron (D)		Gap dimension	4 mm	+/-1.2 mm

Fig 5: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

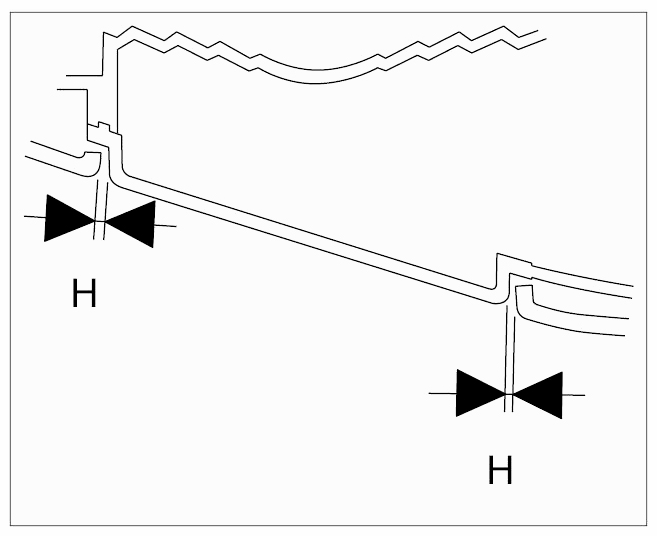

Fig 6: Identifying Direction Indicator Light To Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Direction indicator light to front apron (H)	Gap is evident	Gap dimension	1 mm

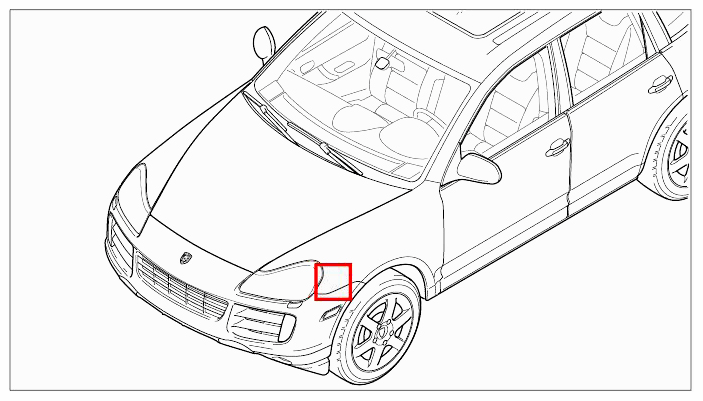

Fig 7: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

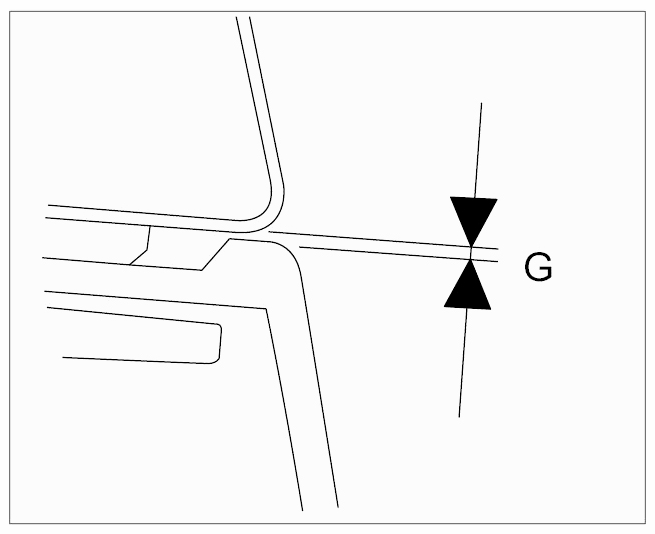

Fig 8: Identifying Front Apron To Wing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Front apron to wing (G)	Gap is evident	Gap dimension	0.5 mm	+/-0.5 mm

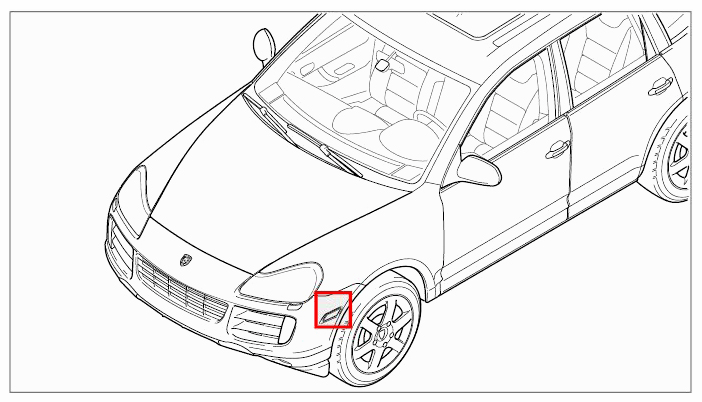

Fig 9: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

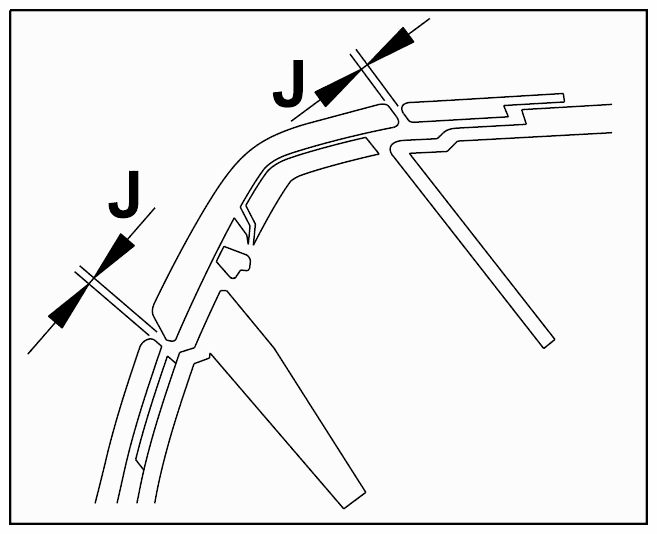

Fig 10: Identifying Headlight Washer System Lid To Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Headlight washer system lid to front apron (J)	All the way round	Gap dimension	1 mm

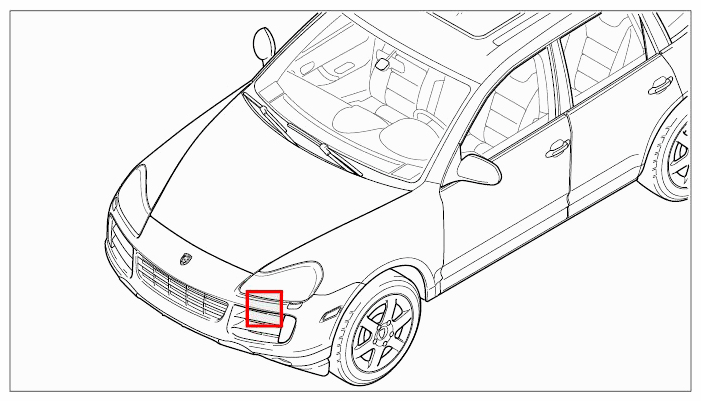

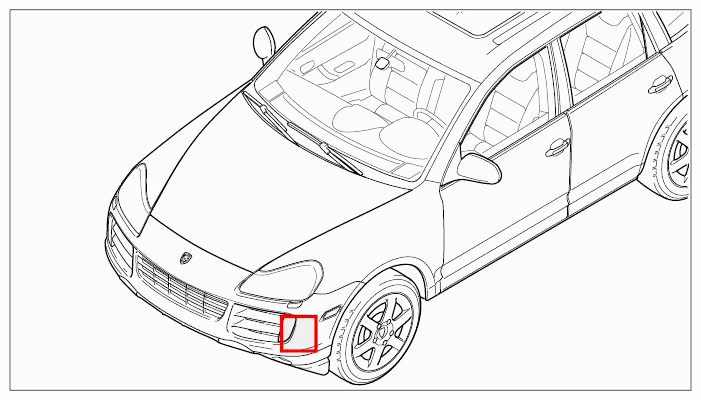

Fig 11: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

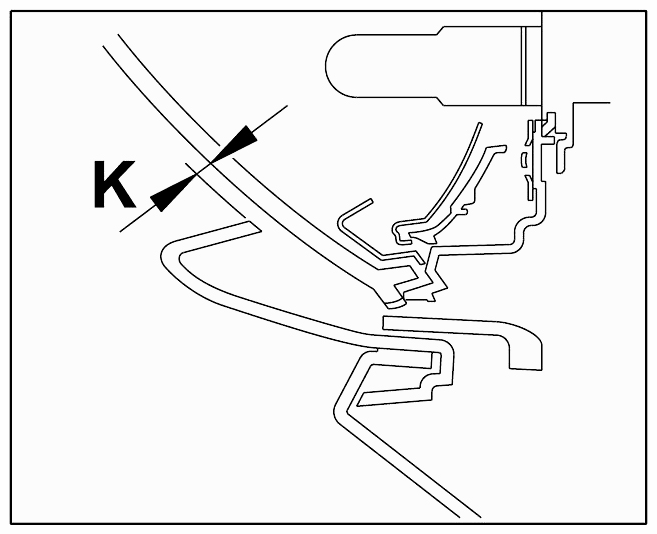

Fig 12: Identifying Fog Light To Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fog light to front apron (K)	All the way round	Gap dimension	4 mm	-0.5 mm	+1.5 mm

Fig 13: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

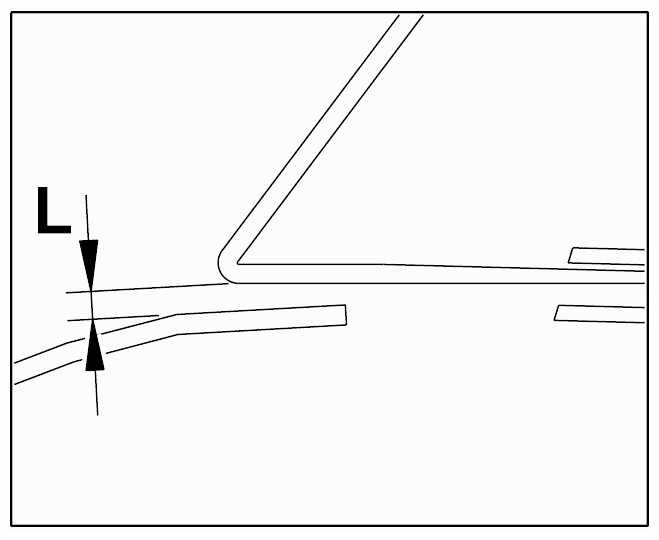

Fig 14: Identifying Main Headlight To Bottom Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Main headlight to bottom of front apron (L)		Gap dimension	4 mm	+/-1.0 mm

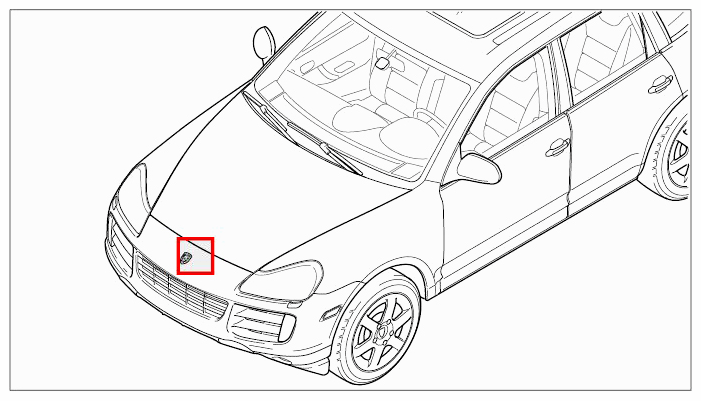

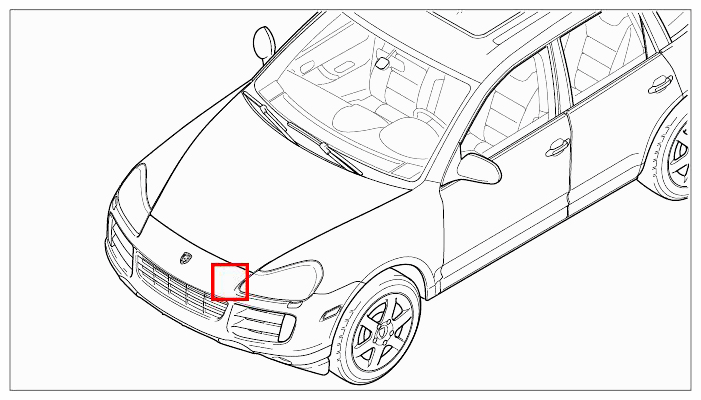

Fig 15: Identifying Gap Dimensions Of Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

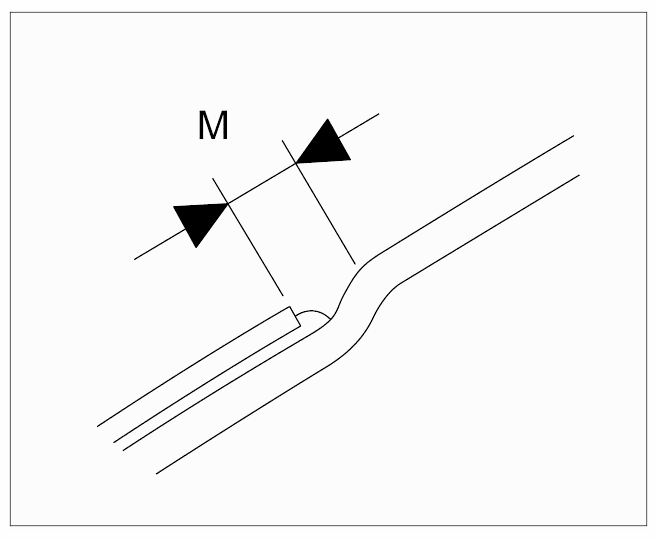

Fig 16: Identifying Insignia To Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Insignia to front apron (M)	Equal all the way round	Gap dimension	1.25 mm	+/-0.4 mm
