Gap Dimensions Of Windscreen
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

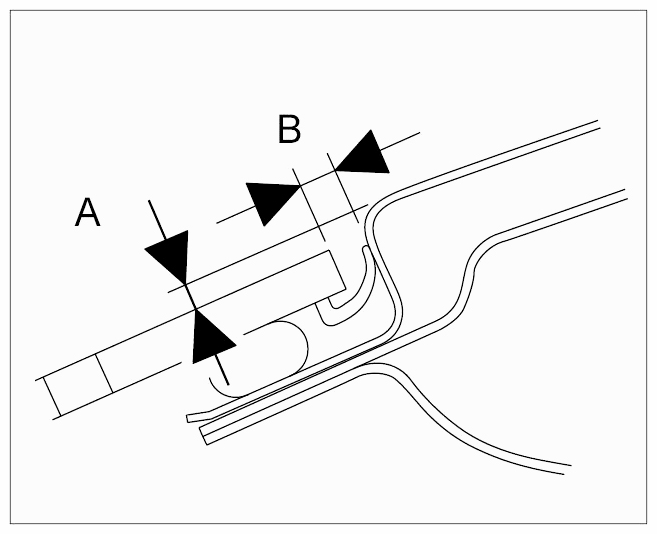

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

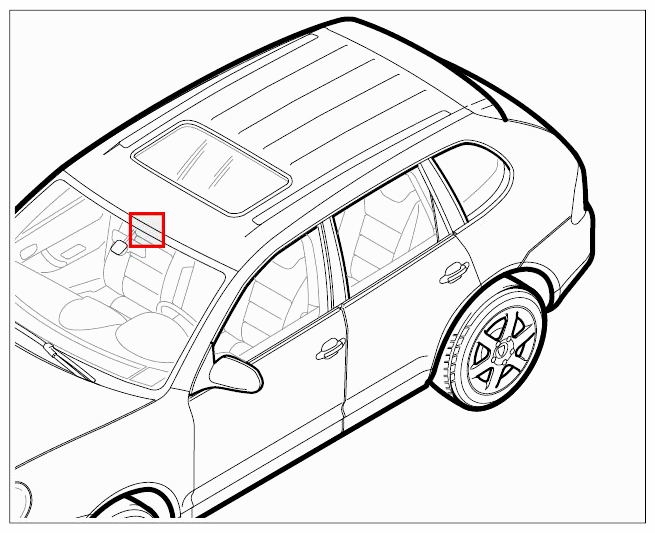

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Windscreen to outer roof panel (A) |
Gap width |
Gap dimension |
3 mm |
-1 mm |
|
| Windscreen to outer roof panel (B) |
Installation depth |
Gap dimension |
4 mm |
-1 mm |
|
