Gap Dimensions Of Sunroof
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

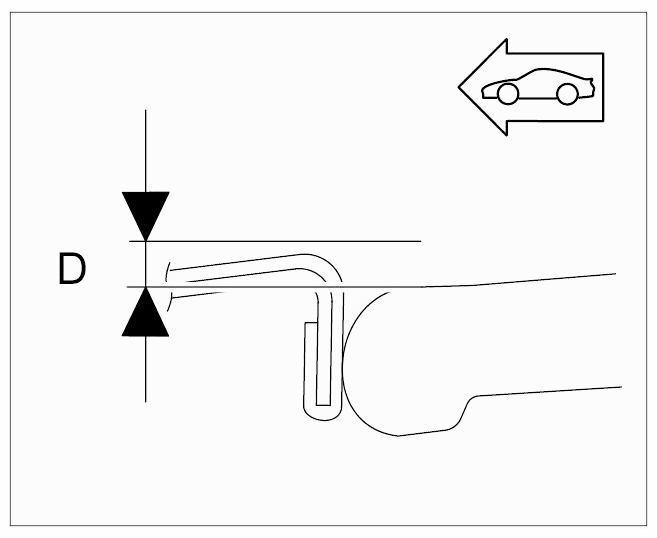

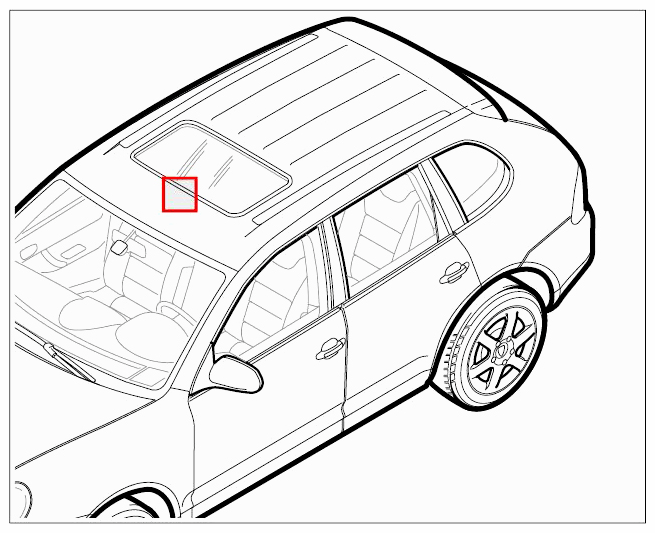

| Sunroof to outer roof panel (D) |
Sliding-roof panel only lowered at front |
Gap dimension |
0 mm |
-1 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

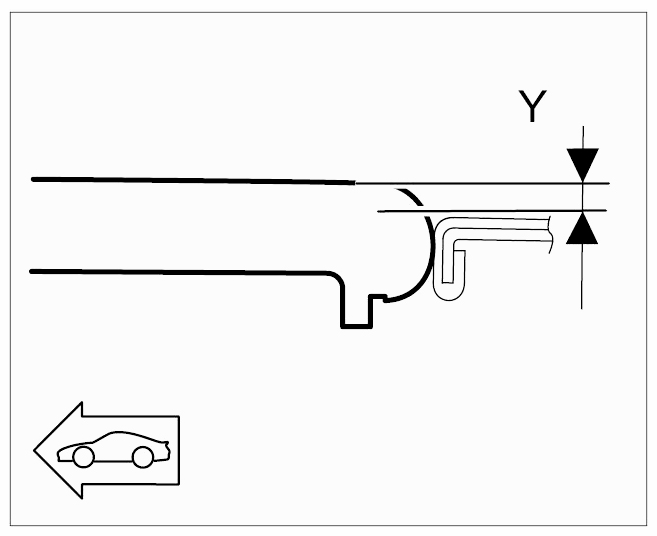

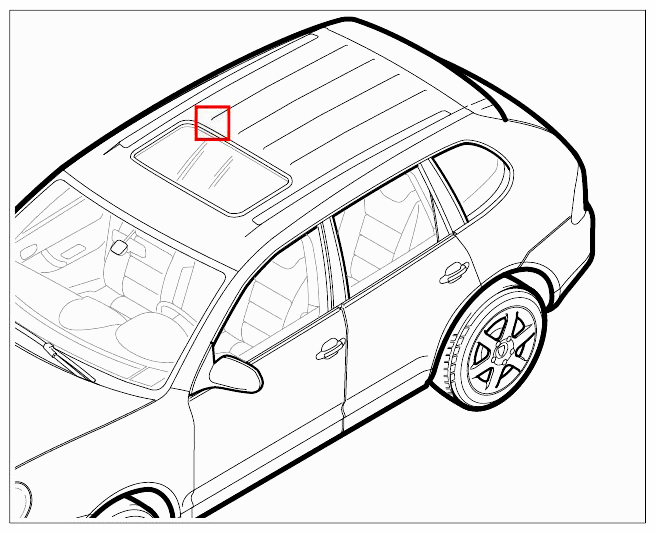

| Cover for sliding roof to outer roof panel, rear (Y) |
Rear lid only raised |
Gap dimension |
0 mm |
+1 mm |
|
