Gap Dimensions Of Rear Door

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Gap Dimensions Of Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

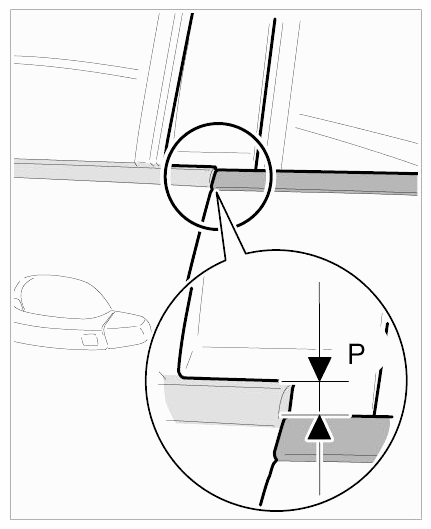

Fig 2: Identifying Gap Dimension From Front Door Molding To Rear Door Molding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Front door molding to rear door molding (P)	Rear door only lowered	Gap dimension	0 mm	-1 mm

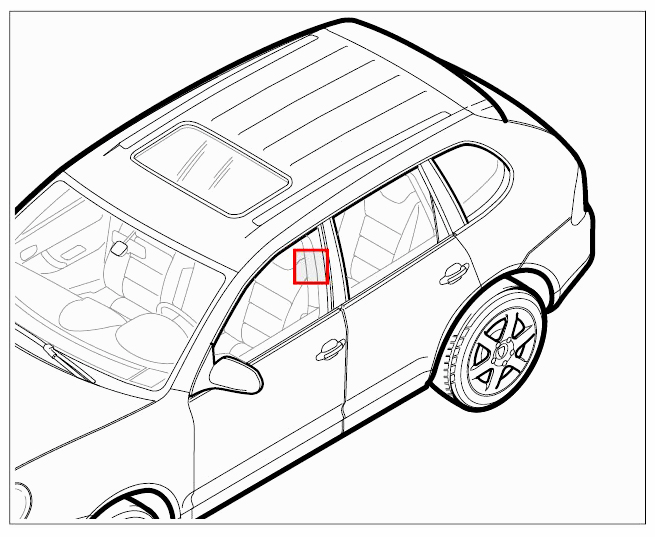

Fig 3: Identifying Gap Dimensions Of Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

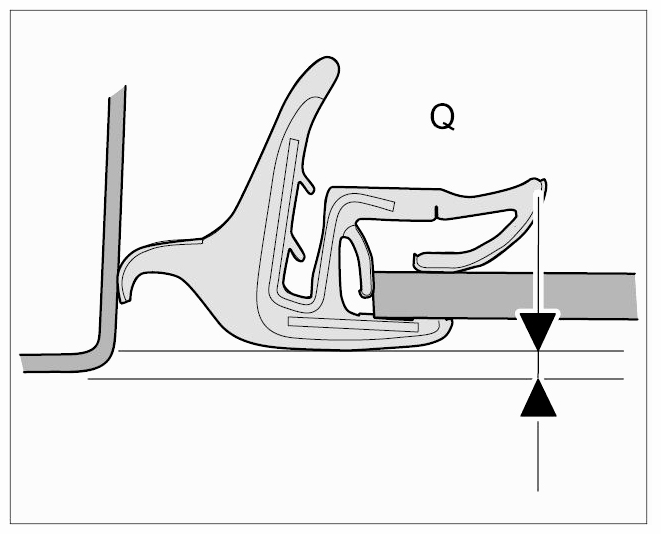

Fig 4: Identifying Gap Dimension From Rear Door Frame To B-Pillar Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Gap dimension from rear door frame to B-pillar trim panel (Q)		Gap dimension	0.8 mm	+/-0.5 mm

Fig 5: Identifying Gap Dimensions Of Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

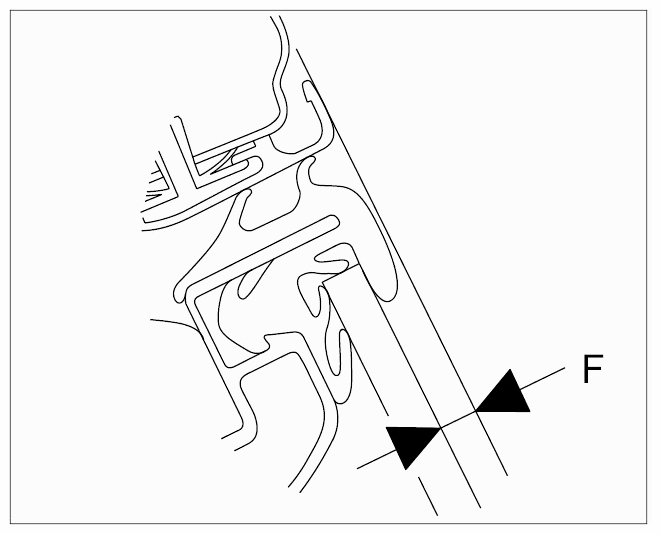

Fig 6: Identifying Door Window To Molding And Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door window to molding and outer side section (F)		Gap dimension	5 mm

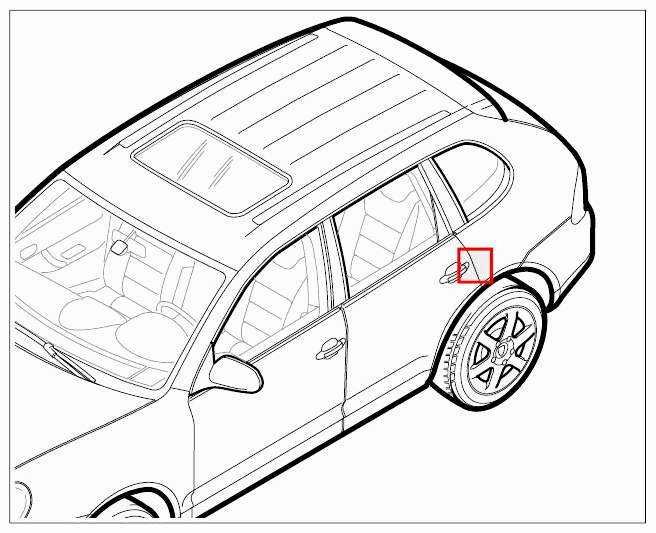

Fig 7: Identifying Gap Dimensions Of Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

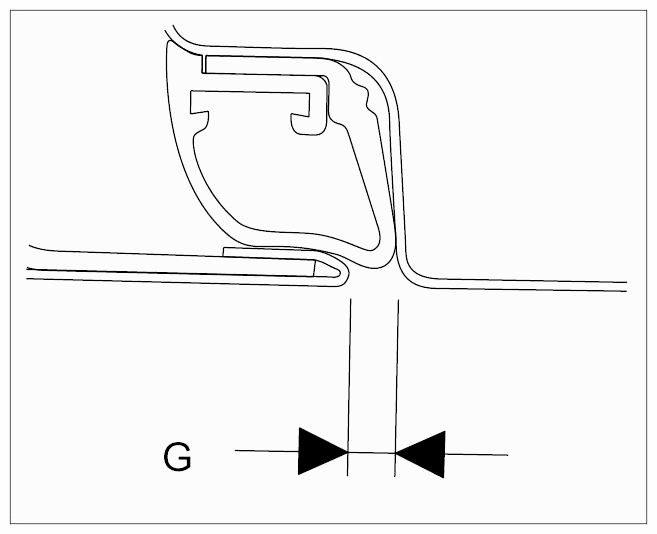

Fig 8: Identifying Door To Outer Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door to outer side section (G)	Door only raised (max. 1 mm)	Gap dimension	4 mm	+/-0.7 mm	-0.5 mm

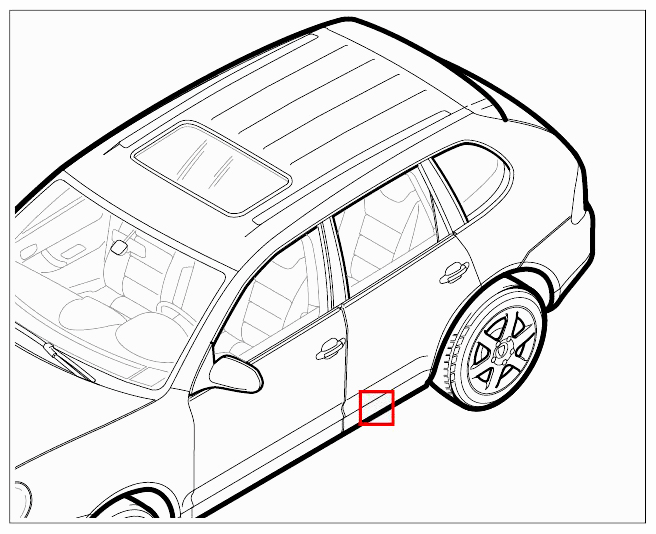

Fig 9: Identifying Gap Dimensions Of Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

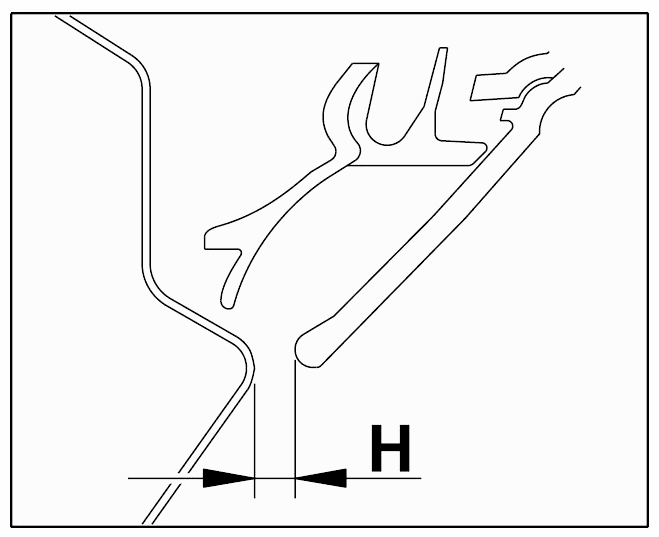

Fig 10: Identifying Door Cover To Outer Door Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door cover to outer door panel (H)		Gap dimension	4 mm

Fig 11: Identifying Gap Dimensions Of Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

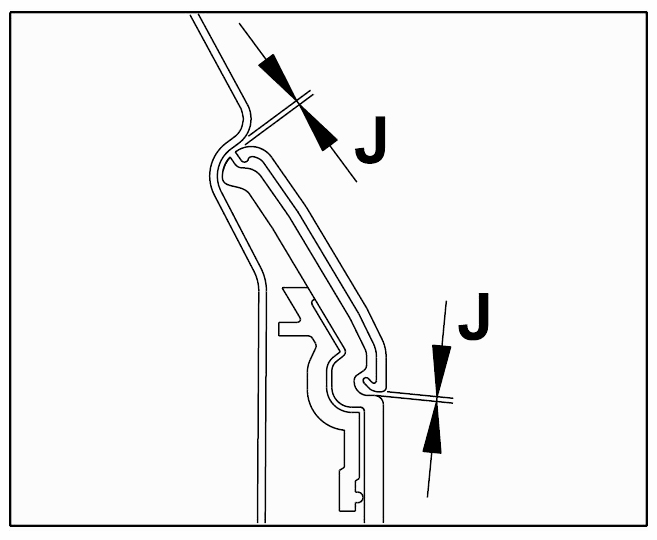

Fig 12: Identifying Door Cover To Outer Door Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door cover to outer door panel (J)		Gap dimension	0.5 mm

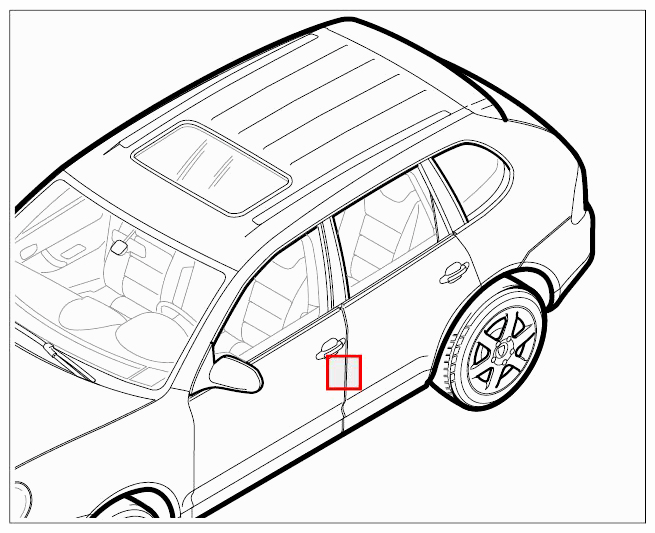

Fig 13: Identifying Gap Dimensions Of Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

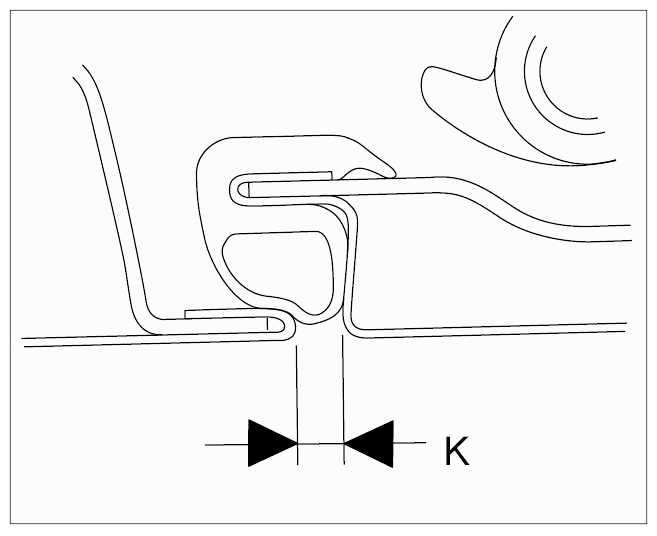

Fig 14: Identifying Front Door To Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Front door to rear door (K)	Rear door only lowered (max. 1 mm)	Gap dimension	4.5 mm	+/-0.7 mm	-0.5 mm
