Gap Dimensions Of Panorama Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

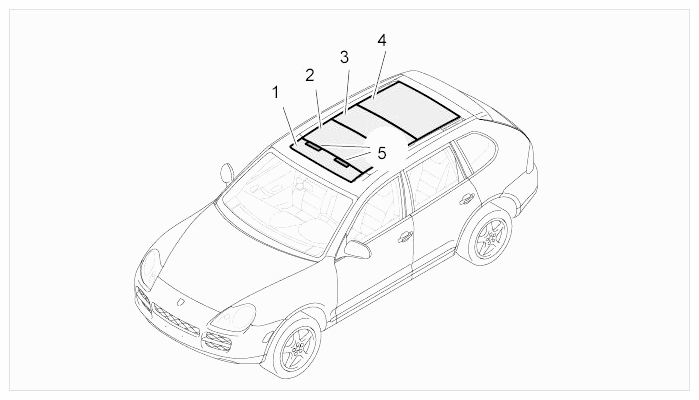

Fig 1: Identifying Air Deflector And Panels

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Panel 1
Panel 2
Panel 3
Panel 4
Air deflector

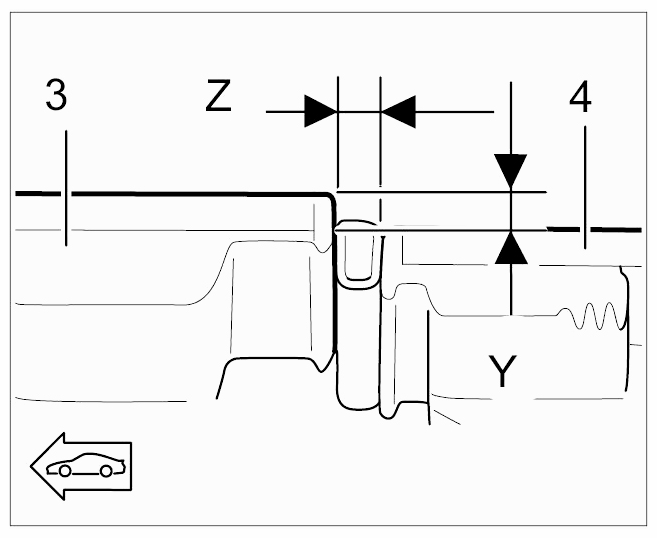

Fig 2: Identifying Gap Dimension From Lid 3 To Lid 4
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Lid 3 for panorama roof to lid 4 for panorama roof	Dimension -Y-, lid only raised	Adjustment value	1 mm	+/-0.5 mm
Lid 3 for panorama roof to lid 4 for panorama roof	Dimension -Z-, parallel gap	Adjustment value	approx. 7.1 mm

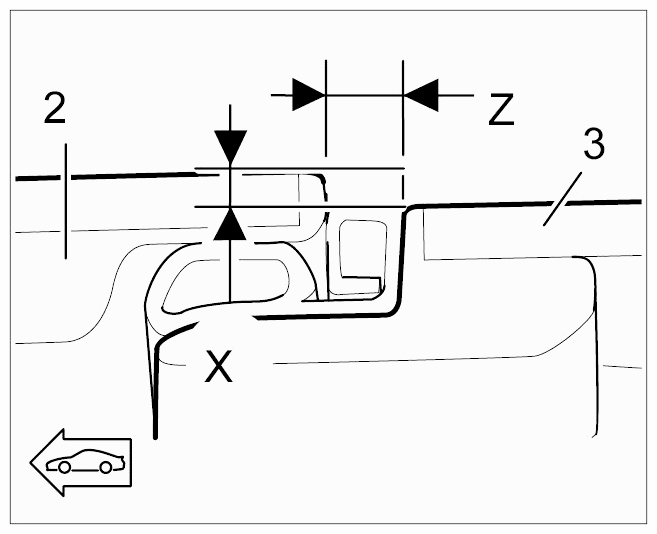

Fig 3: Identifying Gap Dimension From Lid 2 To Lid 3

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Lid 2 for panorama roof to lid 3 for panorama roof	Dimension -X-, lid only lowered	Adjustment value	1 mm	+/-0.5 mm
Lid 2 for panorama roof to lid 3 for panorama roof	Dimension -Z-, parallel gap	Adjustment value	approx. 7.1 mm

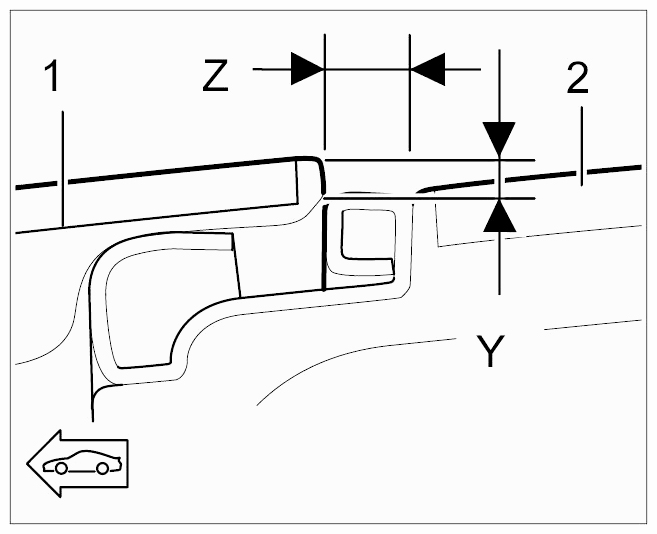

Fig 4: Identifying Gap Dimension From Lid 1 To Lid 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Lid 1 for panorama roof to lid 2 for panorama roof	Dimension -X-, lid only lowered	Adjustment value	1 mm	+/-0.5 mm
Lid 1 for panorama roof to lid 2 for panorama roof	Dimension -Z-, parallel gap	Adjustment value	approx. 7.1 mm

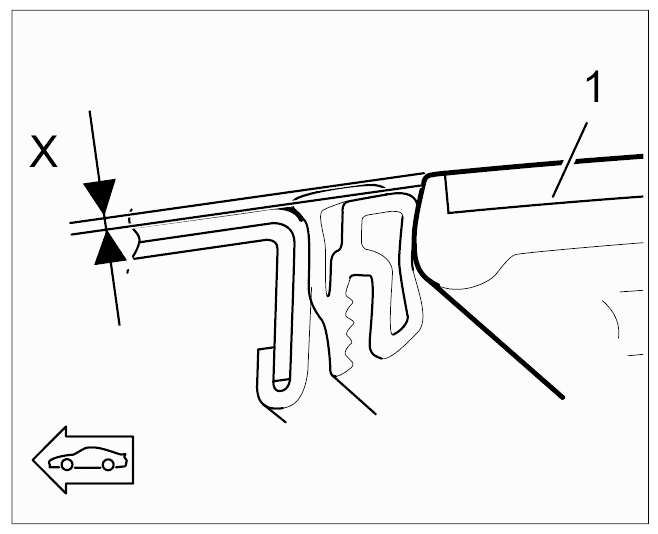

Fig 5: Identifying Gap Dimension From Lid 1 To Outer Roof Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Lid 1 for panorama roof to outer roof panel	Dimension -X-, lid to outer roof panel raised	Adjustment value	0.5 mm	+/-0.5 mm
