Gap Dimensions Of Outer Roof Panel
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

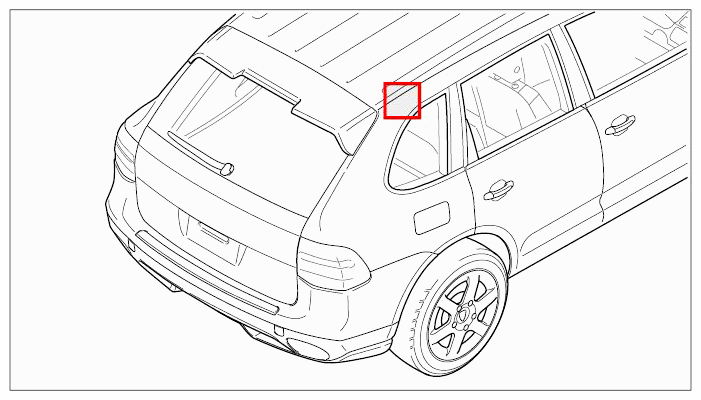

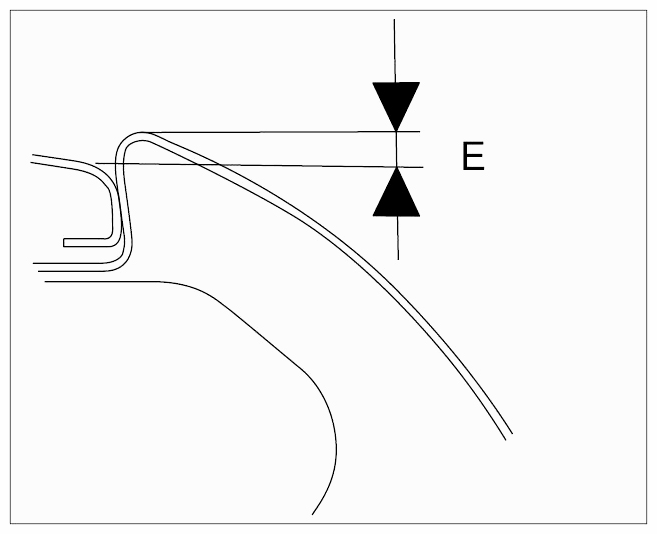

| Outer roof panel to outer side section (E) |
The projection of the side section at the outer roof panel is approx. 2.5 mm at the A-pillar, increases continuously to 3.5 mm to the C-pillar and then returns to 2.5 mm at the D-pillar. |
Gap dimension |
approx. 2.5 to 3.5 mm |
|
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

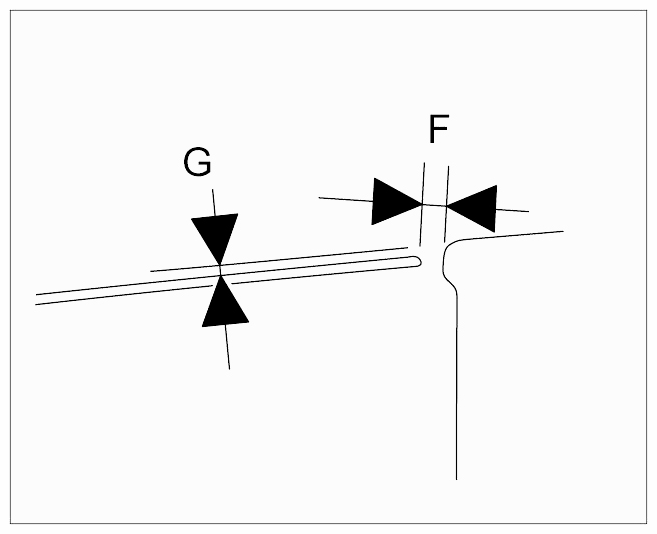

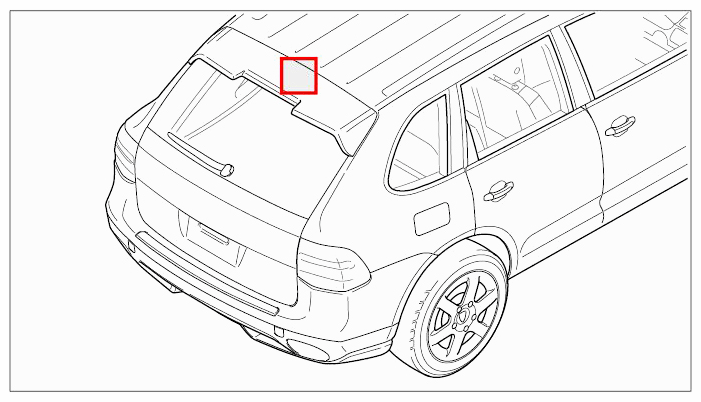

| Rear spoiler to outer roof panel (F) |
|
Gap dimension |
6 mm |
+/-1 mm |
|
| Rear spoiler to outer roof panel (G) |
Only lowered |
Gap dimension |
1 mm |
|
|
