Removing Auxiliary Brake Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip the two plug connections -Arrows A-  .

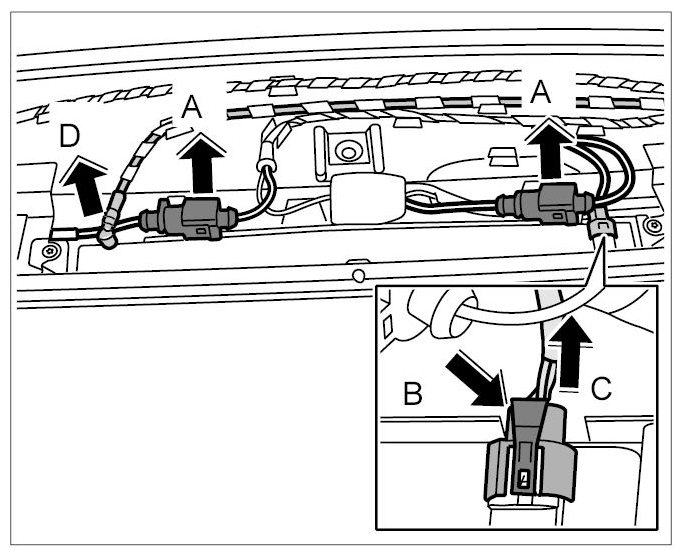

    Fig 1: Unclipping And Disconnecting Plug Connections
    G09415435Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the connector -Arrow B-  and disconnect it from the brake light -Arrow C-  .
  3. Pull the washer fluid hose line off the spray nozzle -Arrow D-  .

    Information

    • Only for vehicles with telephone
  4. Unscrew the fastening screw -arrow 1-  .

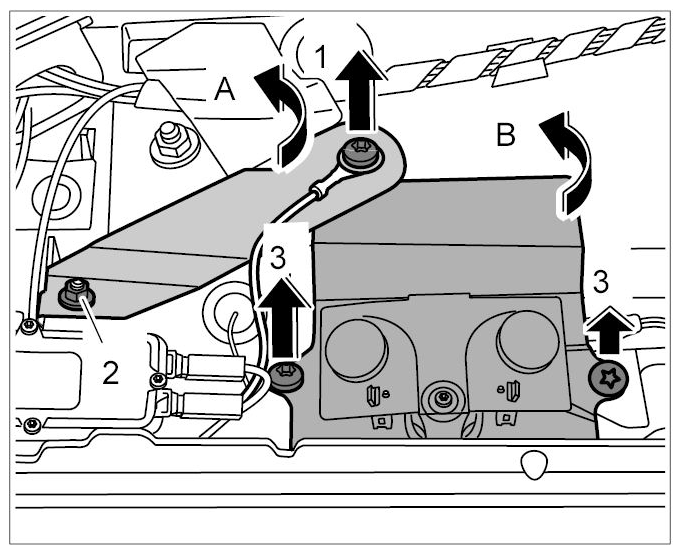

    Fig 2: Removing Telephone Antenna
    G09415436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Loosen the fastening nut -2-  and turn the ground strap away to the left -Arrow A-  .
  6. Unscrew the fastening screws -arrows 3-  and lay the telephone antenna aside -Arrow B-  .

    Information

    • Only for vehicles with PCM
  7. Unscrew the fastening screw -arrow 1-  .

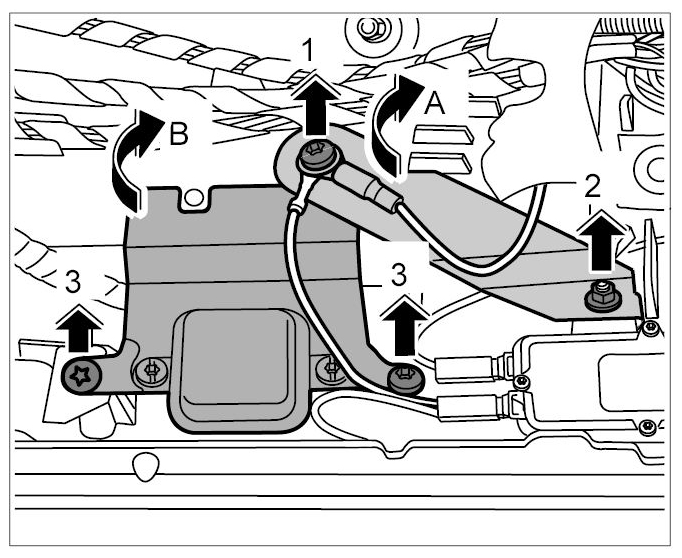

    Fig 3: Removing GPS Antenna
    G09415437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Loosen the fastening nut -arrow 2-  and turn the ground strap away to the right -Arrow A-  .
  9. Unscrew the fastening screws -arrows 3-  and lay the GPS antenna aside -Arrow B-  .
  10. Press out brake light to the inside -Arrow A-  .

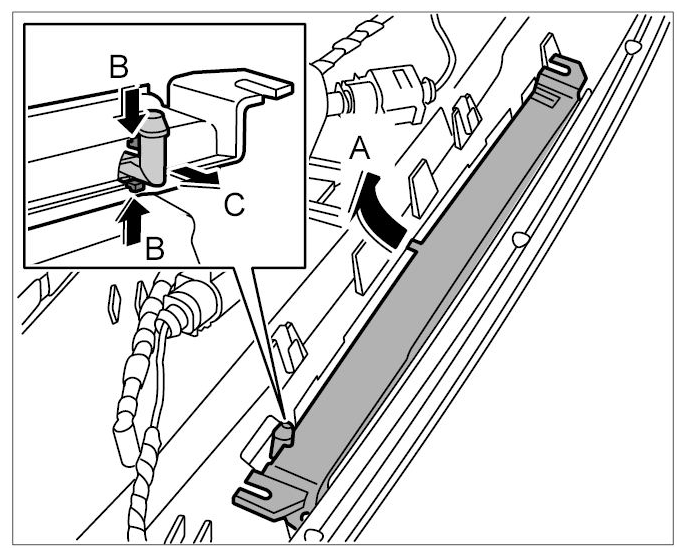

    Fig 4: Removing Brake Light
    G09415438Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Release the spray nozzle -Arrows B-  and pull it out -Arrow C-  .
