Installing Auxiliary Brake Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

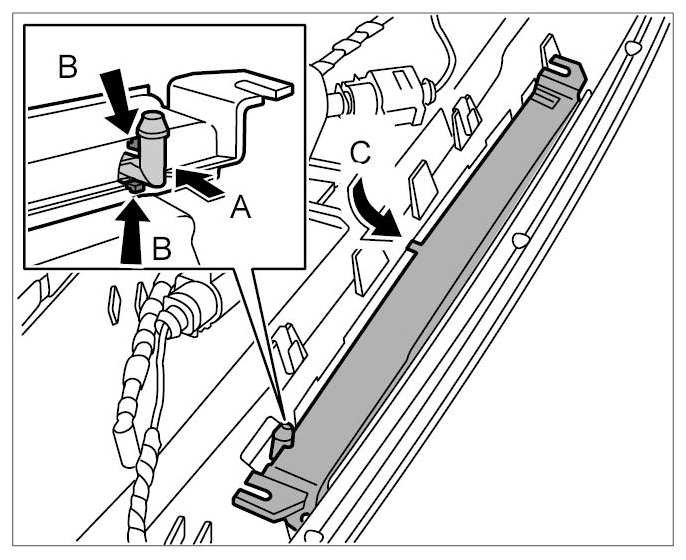

Insert the spray nozzle into the additional brake light -Arrow A- until the locking tabs -Arrows B- click into place.

Fig 1: Installing Brake Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the brake light in installation position from the inside -Arrow C- .
Information
- Only for vehicles with PCM

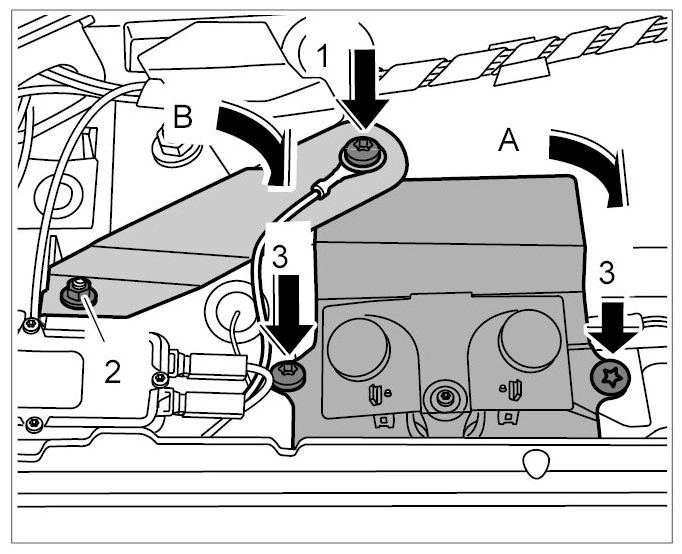

Position the GPS antenna in installation position -Arrow A- and screw in the fastening screws -arrows 3- , but do not tighten.

Fig 2: Installing GPS Antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move the ground strap into installation position -Arrow B- and secure the ground leads with the fastening screw -arrow 1- . Then tighten the fastening nut -arrow 2- and fastening screws -arrows 3- .
Information
- Only for vehicles with telephone

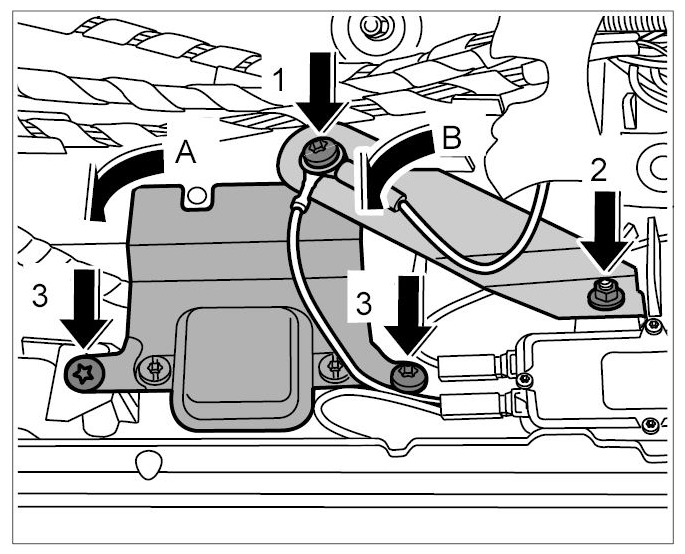

Place the telephone antenna in installation position -Arrow A- and screw in the fastening screws -arrows 3- , but do not tighten.

Fig 3: Installing Telephone Antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move the ground strap into installation position -Arrow B- and secure the ground leads with the fastening screw -arrow 1- . Then tighten the fastening nut -2- and fastening screws -arrows 3- .

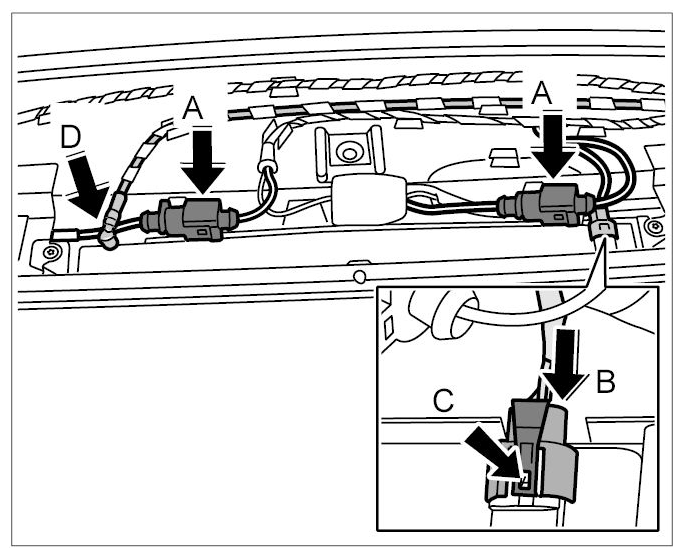

Clip in the plug connections -Arrows A- .

Fig 4: Inserting And Clipping In Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the connector -Arrow B- until the locking tab -Arrow C- clicks into place.
Connect the water line -Arrow D- .
