Removing Bulb For Fog Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

→ Bulb Table

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

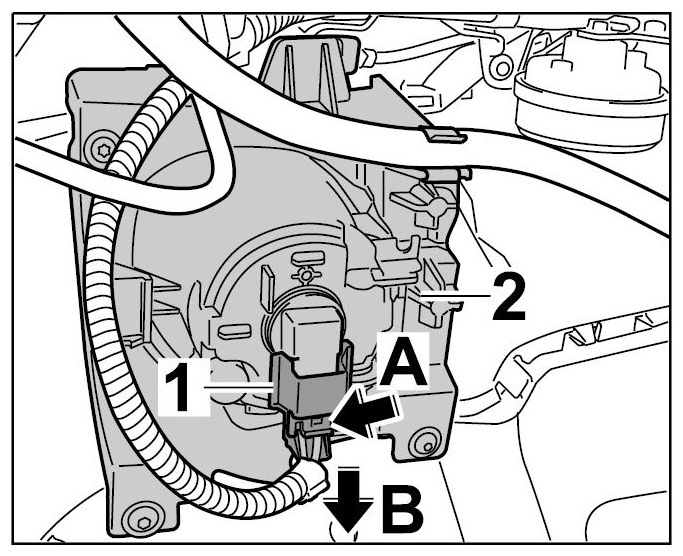

Release connector -1- (-Arrow A- ) and pull off from fog light -2- (-Arrow B- ).

Fig 1: Pulling Off Connector From Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

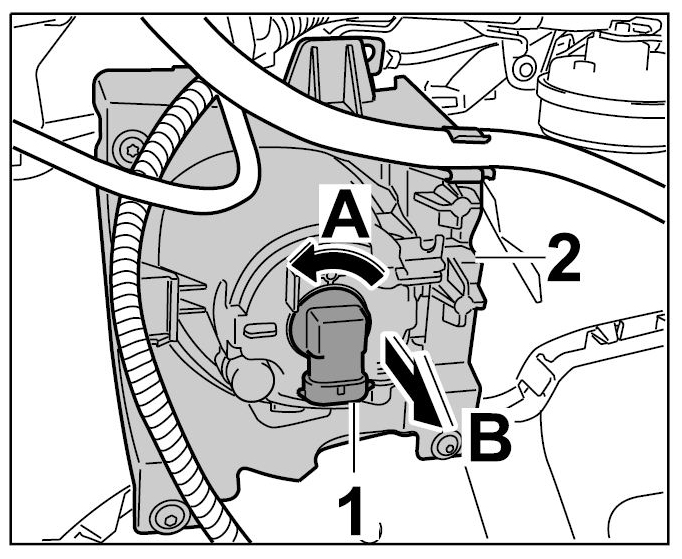

Turn bulb for fog light -1- anti-clockwise (-Arrow A- ) and remove from the fog light -2- (-Arrow B- ).

Fig 2: Removing Bulb For Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
