Installing Bulb For Fog Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

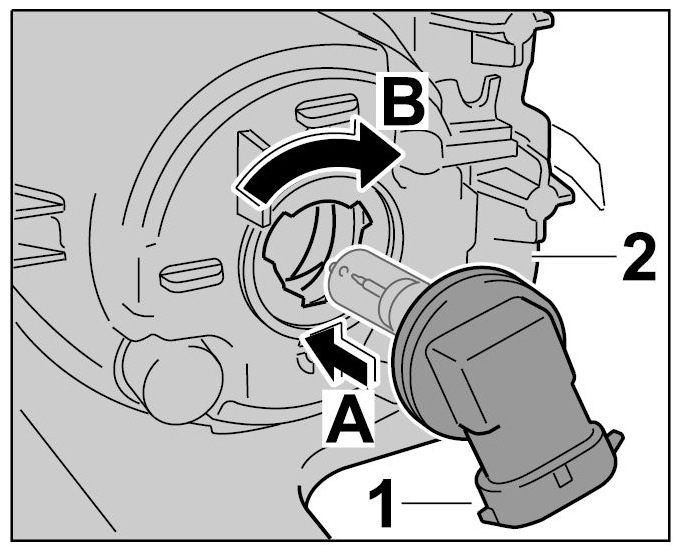

Insert bulb for fog light -1- into the fog light -2- (-Arrow A- ) and turn clockwise (-Arrow B- ) until the bulb for fog light -1- engages securely.

Fig 1: Installing Bulb For Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

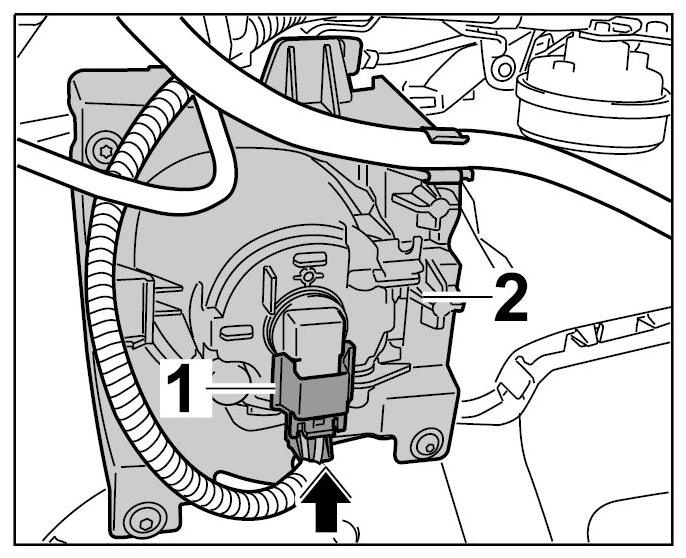

Push connector -1- onto the fog light -2- (-Arrow- ) until the connector -1- engages securely.

Fig 2: Pushing Connector Onto Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
