Removing Support With Fog Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

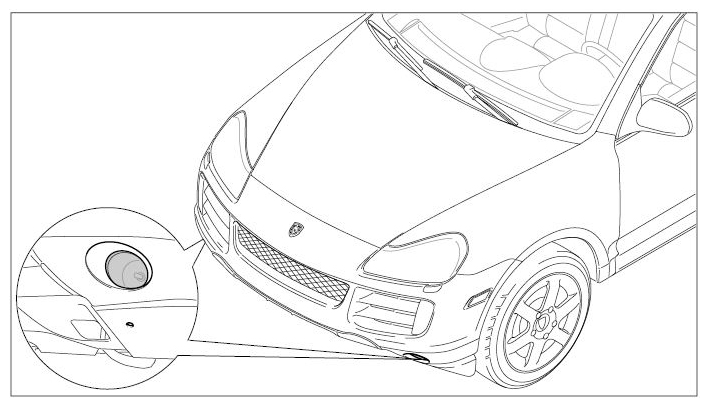

Fig 1: Installation Position Of Fog Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

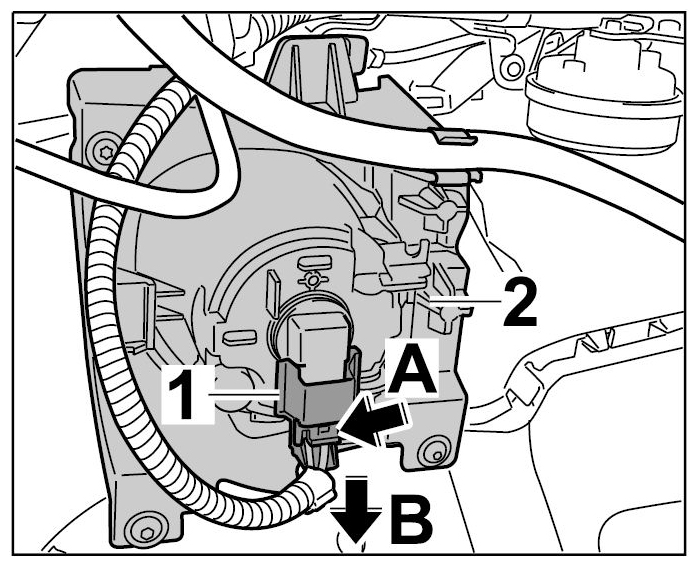

Release connector -1- (-Arrow A- ) and pull off from fog light -2- (-Arrow B- ).

Fig 2: Pulling Off Connector From Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

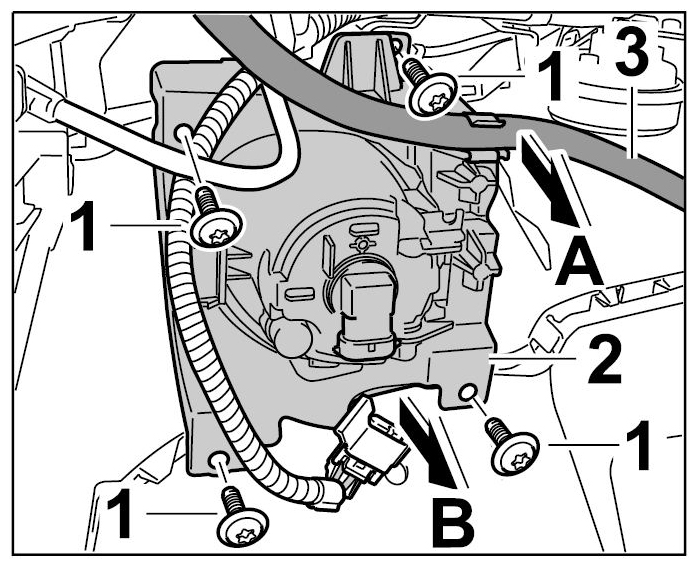

Remove support with fog light.
1. 2.1. Pull water hose -3- out of the retaining clip -Arrow A- .
2. 2.2. Unscrew fastening screws -1- and remove support with fog light -2- (-Arrow B- ).

  Fig 3: Removing Support With Fog Light
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
