Installing Support With Fog Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install support with fog light
    1. 1.1. Insert support with fog light -2-  with the guide into the front apron -Arrow A-  .
    2. 1.2. Secure support with fog light -2-  using the fastening screws -1-  . → Tightening torque: 3 Nm (2.0 ftlb.)
    3. 1.3. Press water hose -3-  into the retaining clip -Arrow B-  .

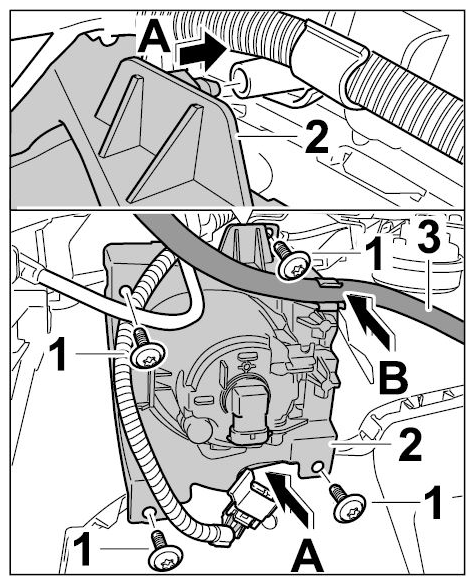

      Fig 1: Installing Support With Fog Light
      G09415428Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push connector -1-  onto the fog light -2-  (-Arrow-  ) until the connector engages securely.

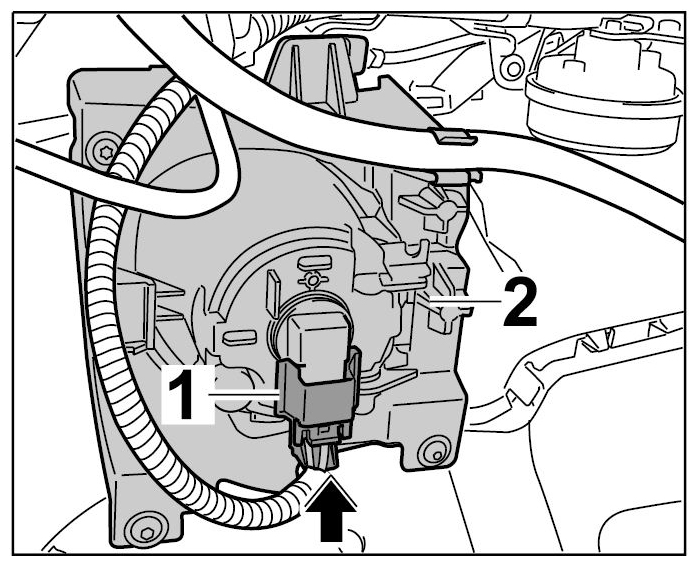

    Fig 2: Pushing Connector Onto Fog Light
    G09415429Courtesy of PORSCHE CARS NORTH AMERICA, INC.
