Removing Gas-Discharge Headlight

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Remove cover.

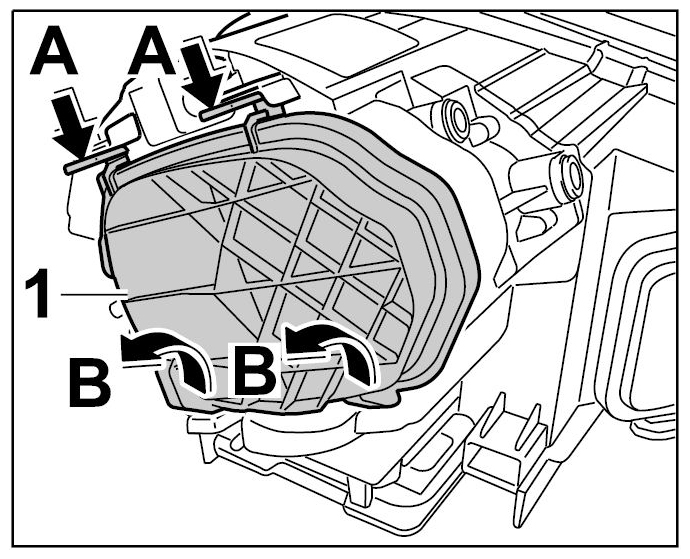

1. 1.1. Release cover -1- at the two clips -Arrows A- .
2. 1.2. Swivel the cover -1- out of the guides on the Bi-Xenon headlight and remove it -Arrows B- .

  Fig 1: Removing Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

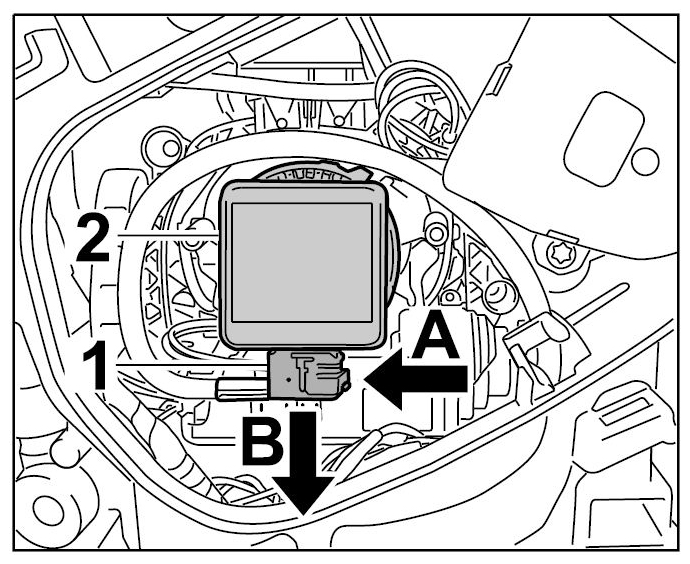

Release connector -1- (-Arrow A- ) and pull it off the gas discharge lamp -2- (-Arrow B- ).

Fig 2: Pulling Connector Off Gas-Discharge Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

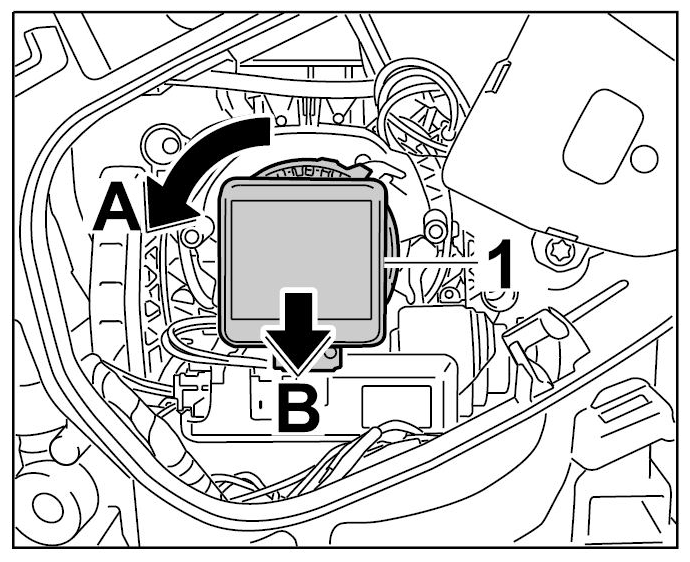

Turn gas-discharge headlight -1- in -arrowrichtung A- and take it out of the Bi-Xenon headlight -Arrow B- .

Fig 3: Removing Gas-Discharge Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

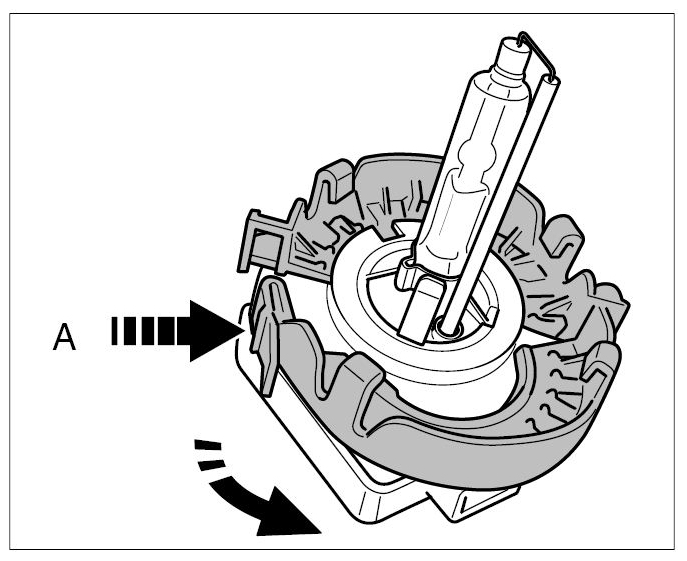

Set down gas-discharge headlight, release the lamp ring -A- and open it.

Fig 4: Releasing Lamp Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lamp ring from the gas-discharge headlight.
