Installing Gas-Discharge Headlight

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

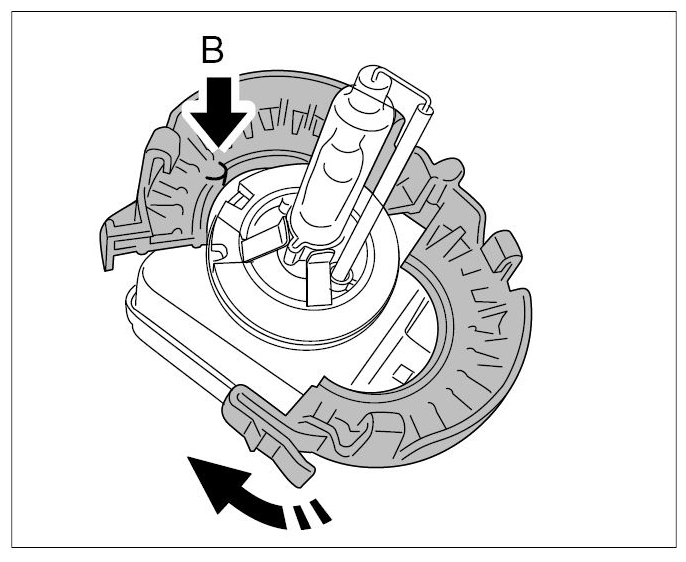

Push lamp ring into the mark -B- on the gas-discharge headlight.

Fig 1: Closing Lamp Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close lamp ring until the lamp ring latch engages securely.

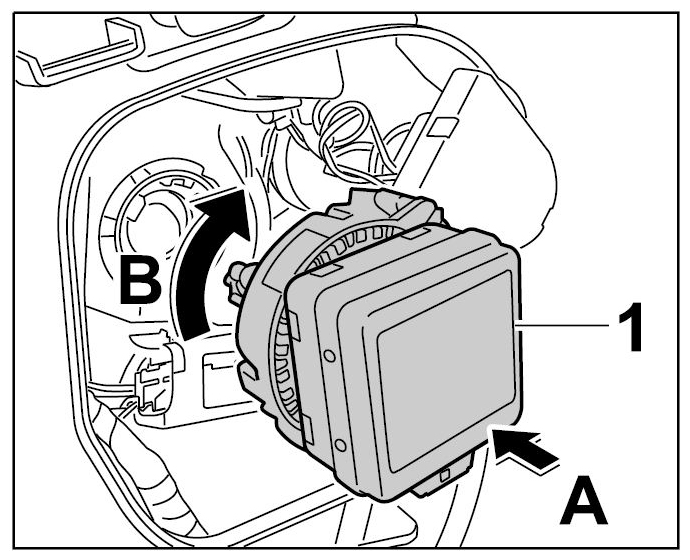

Carefully insert gas-discharge headlight -1- into the Bi-Xenon headlight -Arrow A- and turn it in -direction of arrow B- .

Fig 2: Installing Gas-Discharge Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

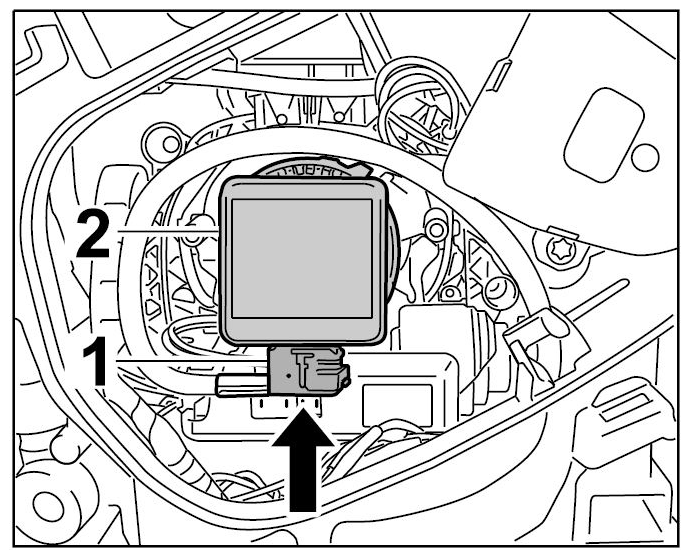

Push connector -1- onto the gas-discharge headlight -2- (-Arrow- ) until it engages securely.

Fig 3: Plugging In Connector On Gas-Discharge Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cover.

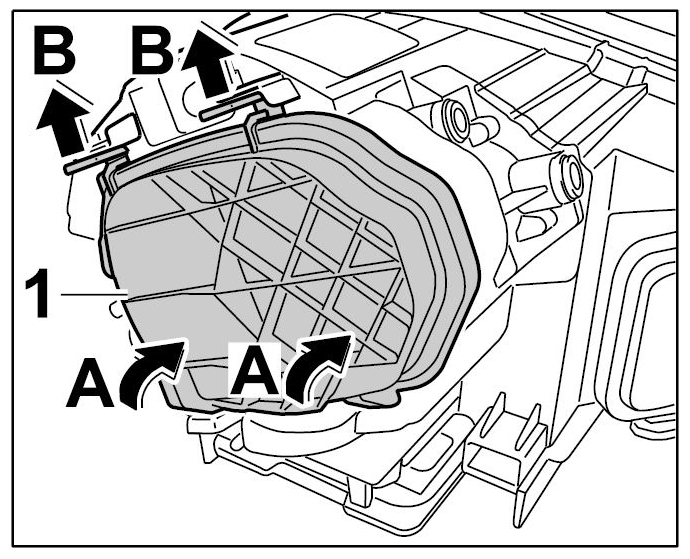

1. 5.1. Insert cover -1- down into the guides on the Bi-Xenon headlight and swivel it up -Arrows A- .
2. 5.2. Press cover -1- onto the Bi-Xenon headlight -Arrows B- until the two clips engage securely.

  Fig 4: Fitting Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
