Installing Control Unit For Gas-Discharge Headlight

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure the connector for the control unit for the gas discharge lamp is perfectly straight when fitting it into the Bi-Xenon headlight. Do not use force when inserting the connector.

  1. Position control unit for gas-discharge headlight -2-  on the Bi-Xenon headlight -3-  in -direction of arrow-  and secure it with the three fastening screws -2-  . → Tightening torque: 3 Nm (2.0 ftlb.)

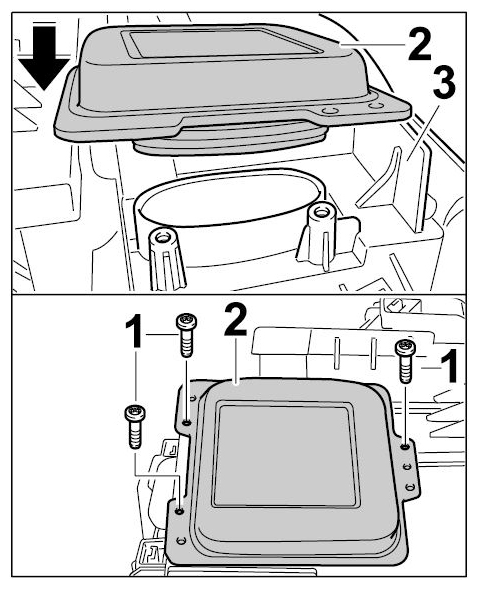

    Fig 1: Installing Control Unit For Gas-Discharge Headlight
    G09415414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. If a new control unit for the gas-discharge headlight was installed, it must be programmed using the PIWIS Tester 9718.
