Removing Front Direction Indicator Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

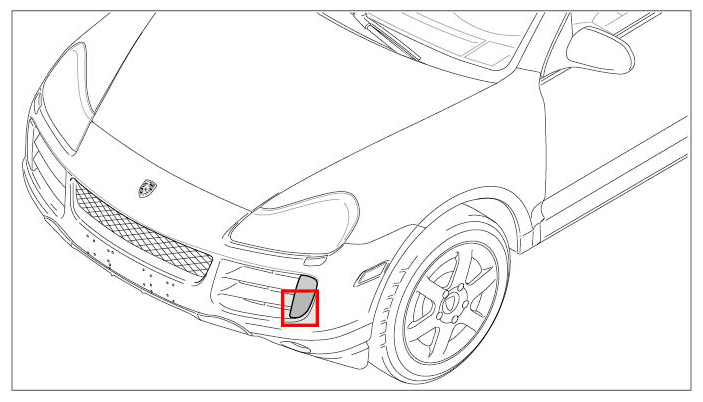

Fig 1: Installation Position Of Front Direction Indicator Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Working on electric components

Risk of burns
Risk of short circuit or fire.

→ Remove ignition key.

→ Turn off switches.

Information

The clips on the direction indicator light can be accessed from above when the main headlight is removed.

Release front direction indicator light -1- at the clips -Arrows A- and pull it forward out of the front apron -Arrow B- .

Fig 2: Loosening Front Direction Indicator Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connections for front direction indicator light.
1. 2.1. Release connector for direction indicator light -1- (-Arrow A- ) and pull it off -Arrow B- .
2. 2.2. Pull bulb socket for parking light -2- off the front direction indicator light -3- (-Arrow C- ).
3. 2.3. Remove front direction indicator light -3- (-Arrow D- ).

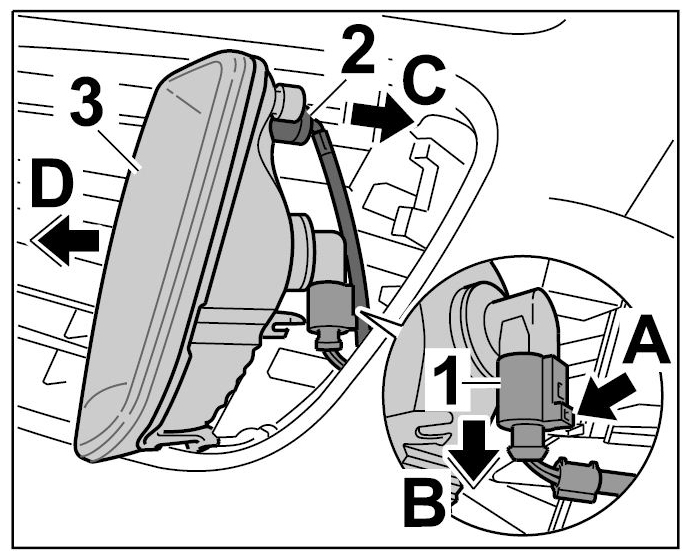

  Fig 3: Disconnecting Plug Connections For Front Direction Indicator Light
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
