Installing Front Direction Indicator Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect plug connections for front direction indicator light.
    1. 1.1. Insert front direction indicator light -3-  into the front apron -Arrow A-  .
    2. 1.2. Press bulb socket for parking light -2-  onto the front direction indicator light -3-  (-Arrow B-  ).
    3. 1.3. Press in connector for direction indicator light -1-  (-Arrow C-  ) until the connector -1-  engages securely.

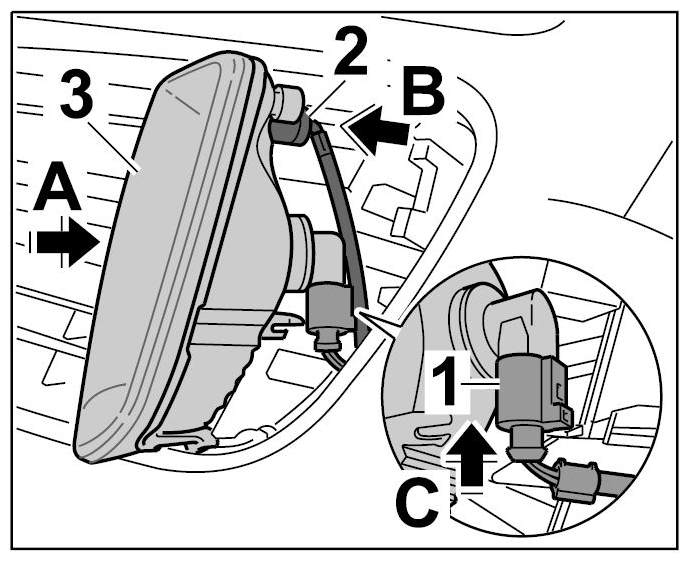

      Fig 1: Connecting Plug Connections For Auxiliary Headlights
      G09415406Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push front direction indicator light -1-  into the front apron and press it in -Arrow-  until the two clips -Arrows-  engage securely.

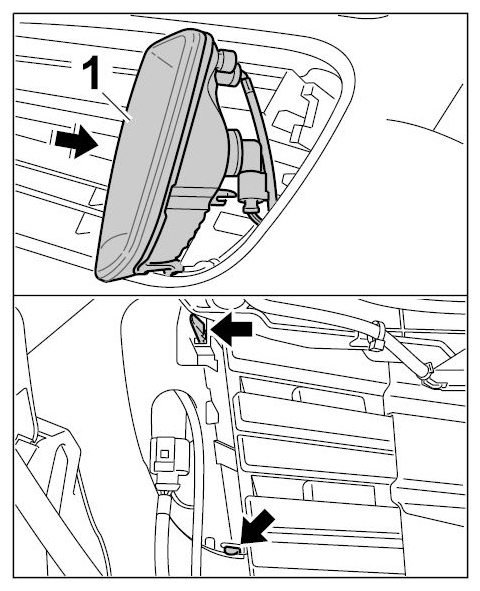

    Fig 2: Securing Front Direction Indicator Light
    G09415407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
