Removing Side Direction Indicator Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

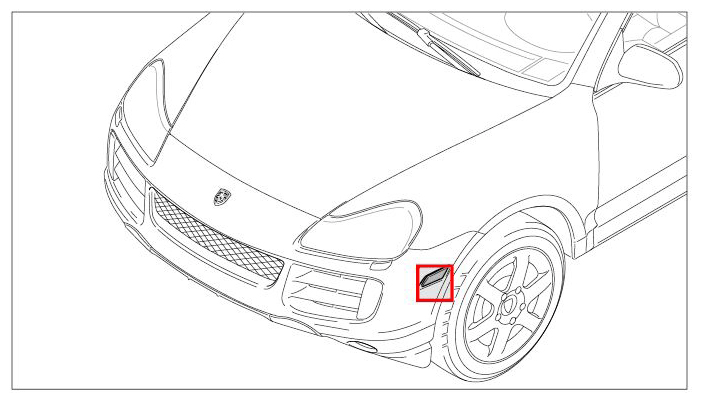

Fig 1: Installation Position Of Side Direction Indicator Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

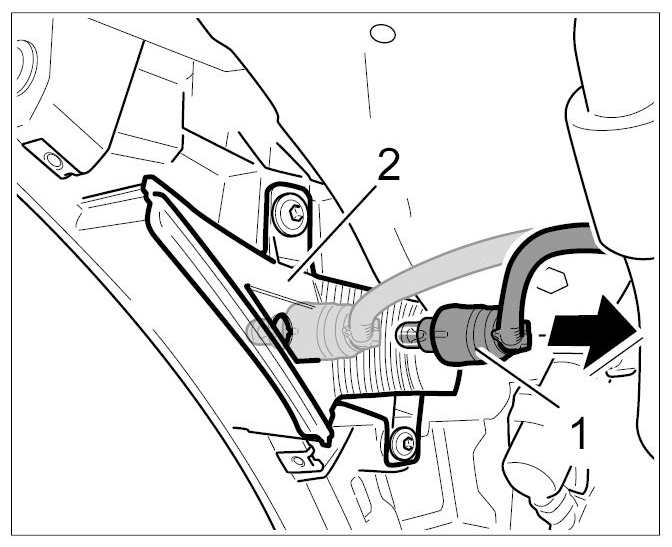

Pull off bulb socket -1- from the direction indicator light -2- (-Arrow- ).

Fig 2: Pulling Off Bulb Socket From Direction Indicator Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

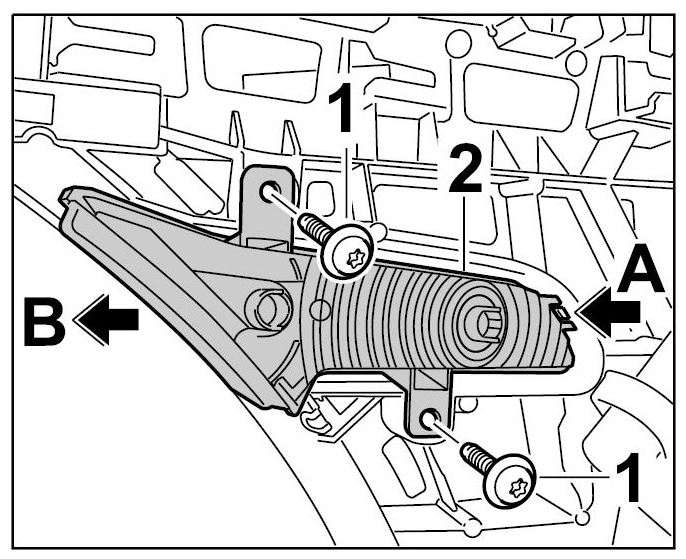

Remove side direction indicator light.
1. 2.1. Undo fastening screws -1- .
2. 2.2. Release side direction indicator light -2- at the clip -Arrow A- and remove to the rear -Arrow B- .

  Fig 3: Removing Side Direction Indicator Light
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
