Installing Side Direction Indicator Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the lamp bracket is "twisted" in the lamp housing, this can damage the light and/or cause the side direction indicator light to fog up.

When fitting the bulb socket, make sure that the bulb socket guide is inserted into the groove on the direction indicator light and check that the rubber sleeve is flush with the direction indicator light.

Install side direction indicator light.
1. 1.1. Insert side direction indicator light -2- from the rear in -direction of arrow- into the front apron until the clip -arrow- engages securely.
2. 1.2. Tighten fastening screws -1- .

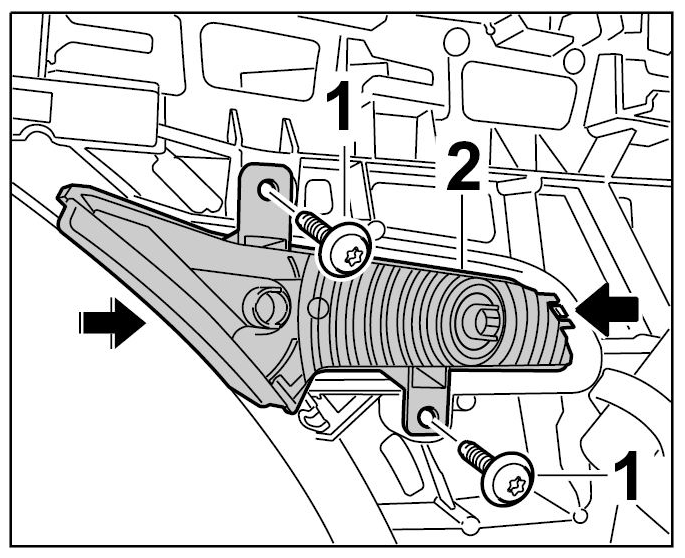

  Fig 1: Installing Side Direction Indicator Light
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push bulb socket -1- onto the direction indicator light -2- (-Arrow- ).

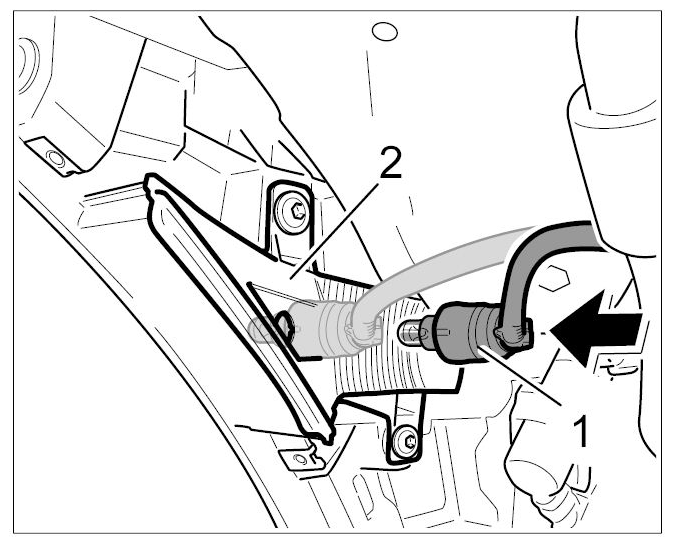

Fig 2: Pushing Bulb Socket Onto Direction Indicator Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
